Help CenterANSI Impact Safety Glass Test Equipment
Related Products
-
BS EN 12600 - Pendulum Glass Impact TestsUS$ 2055 - 3000MOQ: 1 Set -
Windshield Laminated Glass Impact Test DeviceUS$ 420 - 980MOQ: 1 Set
-
PV Module Shot Bag Impact TesterUS$ 1900 - 6900MOQ: 1 Set
-
Impact Testing for Breakage Performance of Safety GlassUS$ 1900 - 6500MOQ: 1 Set
-
Shot Bag ImpactorUS$ 1 - 2MOQ: 1 Piece
Function:
Determining the resistance of glazing material to impact by the penetration method.
Principle:
The specimen is supported vertically in a steel frame and an impact shot bag is released from a pre-determined height to strike the specimen at the centre. The height is progressively increased until fracture occurs.
Related Standards:
AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
ANSI Z97.1 Safety Glazing Materials Used in Buildings - Safety Performance Specifications and Methods of Test - Clause 5.1: Impact Test
Apparatus:

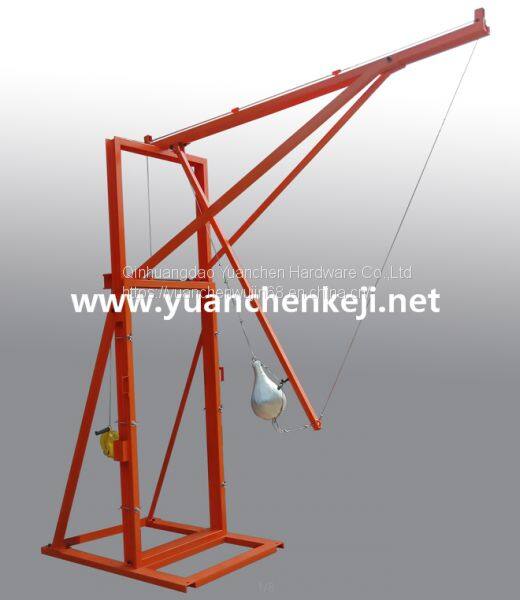

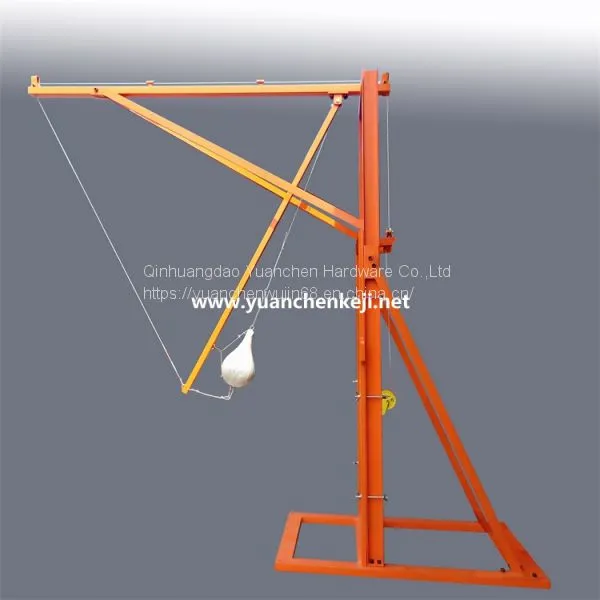

1) Impact testing frame:
Frame Size: 1900mm*1500mm*3570mm
Samples Size: 1930mm*864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50

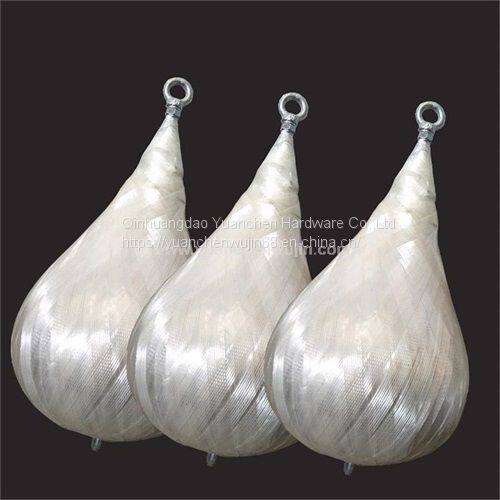

2) Impact shot bag:
Weight: 45kg±0.1kg 46kg±0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Leather thickness: 1.5mm
Lead sand size: 2.5mm
Customized: 25kg /48kg
