Help CenterISO 3537 Felt Cover for Headform Weight
Related Products
-
Test Device For The Impact Performance Of Shot BagUS$ 1900 - 6500MOQ: 1 Set -
ANSI Impact Safety Glass Test EquipmentUS$ 1900 - 6750MOQ: 1 Set
-
BS EN 12600 - Pendulum Glass Impact TestsUS$ 2055 - 3000MOQ: 1 Set
-
Windshield Laminated Glass Impact Test DeviceUS$ 420 - 980MOQ: 1 Set
-
PV Module Shot Bag Impact TesterUS$ 1900 - 6900MOQ: 1 Set
Specification：

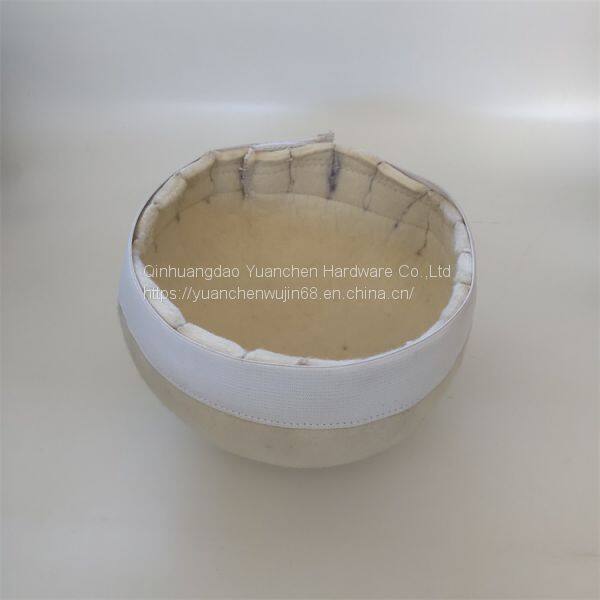

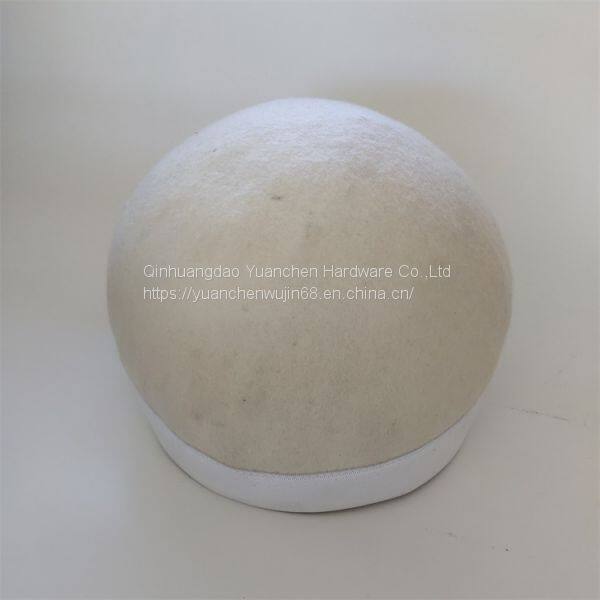

Name: Felt Cover
Material: wool felt
Radius: 95 mm
Thickness: 5 mm
Function: Used for the head-form weight to assess the minimum strength and cohesion of the safety glass under impact from a blunt, bulky object.
Reference standard：
GSO ISO 3537 Road vehicles – Safety glazing materials — Mechanical tests – Clause 8 Head-form test
ECE-R43-01 Uniform provisions concerning the approval of safety glazing materials and their installation on vehicles – Annex3 General test conditions – Clause3 Headform test
Apparatus：
Head-form weight, with a spherical or semi-spherical head made of laminated hard wood covered with replaceable felt and with or without a cross-beam made of wood. Between the spherical part and the cross-beam, there is a neck-shaped intermediate piece and on the other side of the cross-beam, a mounting rod . The total mass of the apparatus shall be (10 + 0.2) kg.
The impact surface of the felt cover shall be replaced after twelve tests.

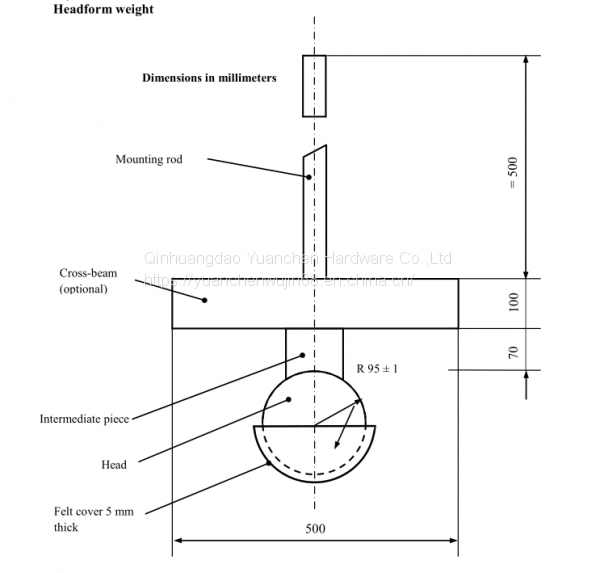

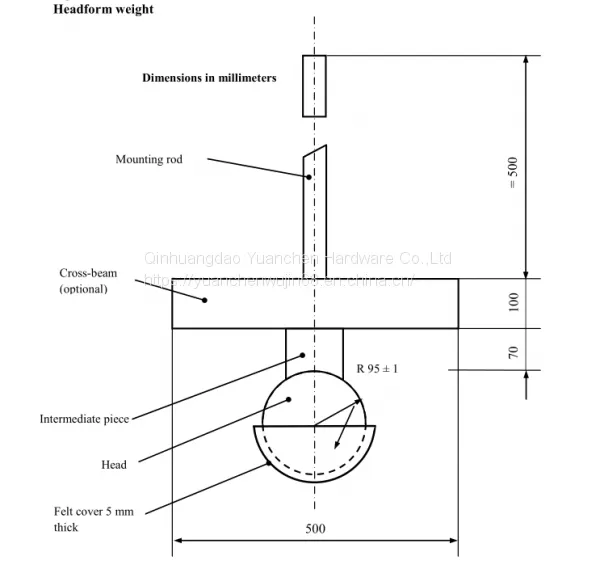

Diagrammatic drawing：
