BS EN 12600 - Pendulum Glass Impact Tests

BS EN 12600 - Pendulum Glass Impact Tests

Reference Standard:

BS EN 12600:2002 Glass in building – Pendulum test – Impact test method and classification for flat glass

Technical Data:

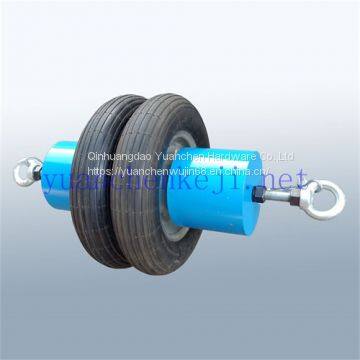

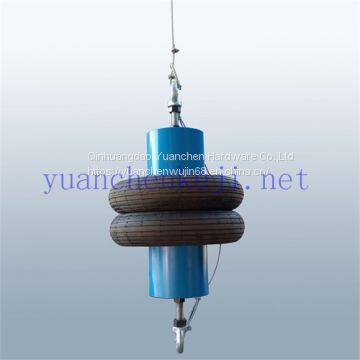

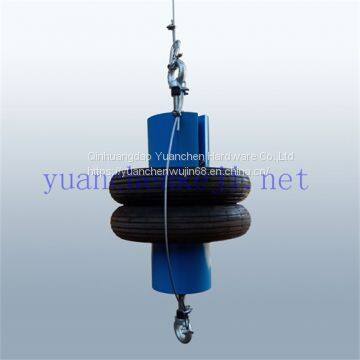

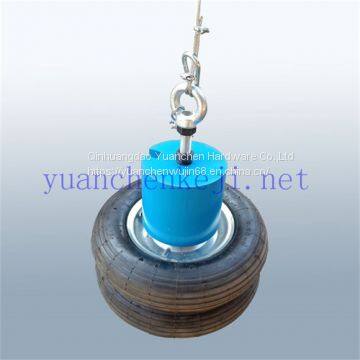

1) Pneumatic Tyres Impactor:

  Weight: 50 kg ± 0.1 kg

  Tyre pressure: 0.35Mpa ± 0.02Mpa

  Tyre type: 3.50-R8 4PR

  Sample size: 876 mm ± 2 mm * 1938 mm ± 2 mm

  Inside the sample frame: 847 mm ± 5 mm * 1910 mm ± 5 mm

  Impact frame footprint: 1300 mm*3900 mm*3700 mm

  Lifting mode: manual, automatic optional

  Impact body release mode: manual, automatic optional

2) Impact Testing Frame:

  Frame Size: 1900mm*1500mm*3570mm

  Samples Size: 1930mm*864mm

  Lift: Electric

  Release: Auto

  Maximum impact height: 1200mm (customized)

  Rubber Pad Width: 15mm

  Rubber Pad Thickness: 3mm

  Rubber Pad Hardness: Shore A50
