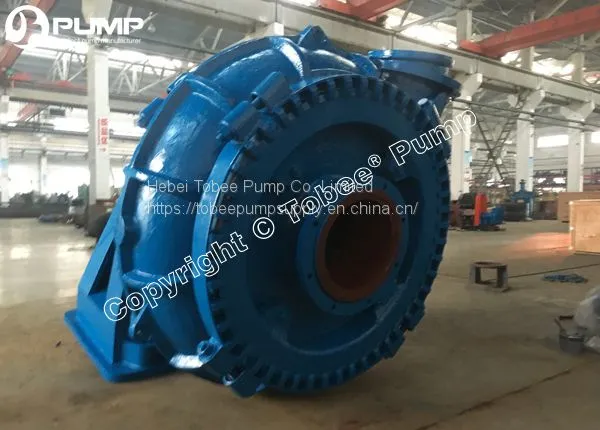

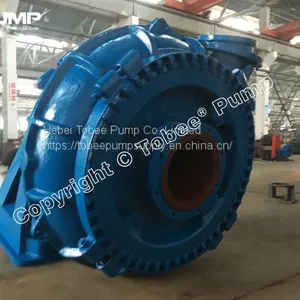

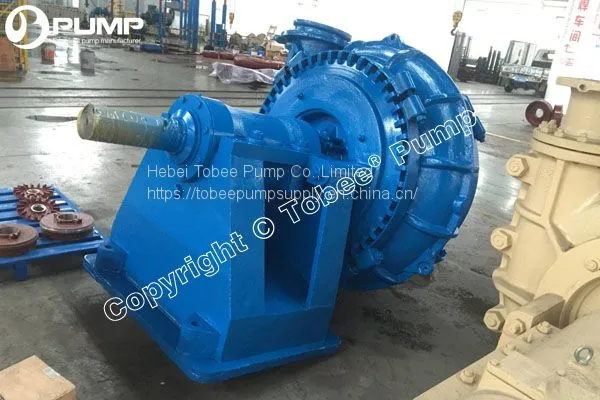

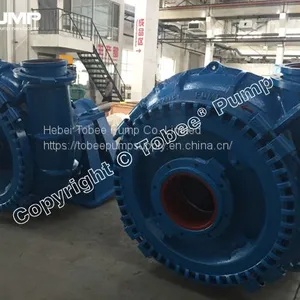

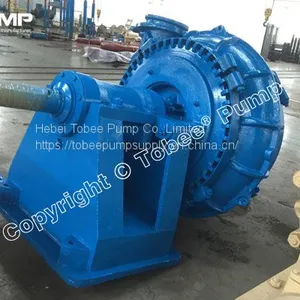

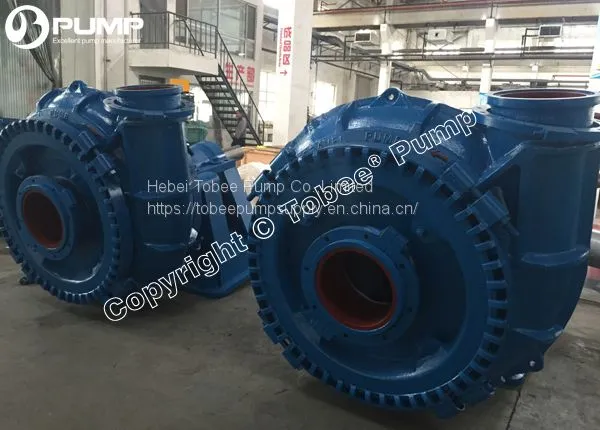

Tobee® TGH16x14TU Sand Booster Pump is horizontal single-casing high head sand pump with wide passage to transfer sand or slurry with big particle size. The wet parts are made of Ni-hard and high-Chrome alloys to ensure long service life. It is widely used for high head and long distance delivering in dredging, sand mining, barge loading and mineral processing etc.
Design Features:
• Horizontal, single-casing, centrifugal high head, long distance sand pump.
• Wide passage, good performance of NPSH, anti-wearing and anti-corrosion, and high efficiency
• Using modern CAD design with excellent hydraulic performance,low wear rate
• The bearing assembly is lubricated by grease
• The wetted parts are made from anti-wearing high chrome alloy.
• The discharged direction of pump can be oriented in any direction of 360°.
• Packing seal, expeller seal and mechanical seal are for different application.
• The pump can be driven by diesel engine, electric motor through gearbox, coupling or pulley and v-belt etc.
• Especially used for high head, long distance, large capacity transportation.
Tobee® TGH16x14TU Sand Booster Pump Performance Parameter:
| Model |
Max.Power P (kw) |
Capacity Q (m3/h) |
Head H (m) |
Speed n (r/min) |
Eff. η (%) |
NPSH (m) |
Impeller Dia. (mm) |
| TGH16/14TU | 1200 | 324-3600 | 26-70 | 300-500 | 72 | 3-6 | 1270 |
Tobee® TGH16x14TU Sand Booster Pump Structural Drawing:
Tobee® TGH16x14TU Sand Booster Pump Components Design:
Tobee® TGH16x14TU Sand Booster Pump Drive Module Design:
Tobee® TGH16x14TU Sand Booster Pump Shaft Seal Arrangement:
• Packing Seal is a general shaft seal.It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve,For high abrasion conditions, The ceramic shaft sleeve is available.
• Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
• Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition,So it has high abrasion and vibration resistance, Mechanical seal can be used in various severe conditions.
Tobee® TGH16x14TU Sand Booster Pump Frame Explanation:
| Frame type | A | B | C | D | E | R | F | G | S | TU |
| Max.Power (kw) | 7.5 | 15 | 30 | 60 | 120 | 300 | 260 | 600 | 560 | 1200 |
| Frame Weight (kg) | 17 | 24 | 45 | 77.5 | 154 | 228 | 555 | 1006 | 546 | 1156 |
| Amount of Shaft Sealing Water (l/s) | 0.15 | 0.25 | 0.35 | 0.55 | 0.70 | 0.70 | 0.70 | 1.20 | 1.20 | 1.60 |
Tobee® TGH16x14TU Sand Booster Pump On-site Applications:
Tobee® TGH16x14TU Sand Booster Pump Dimensional Drawing:
