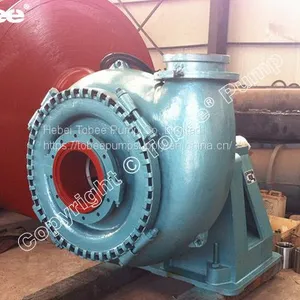

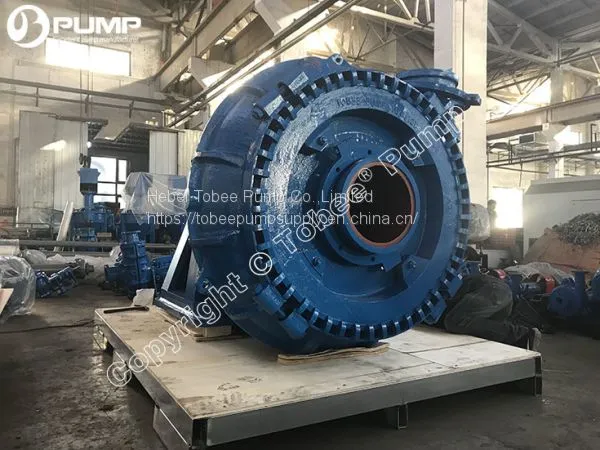

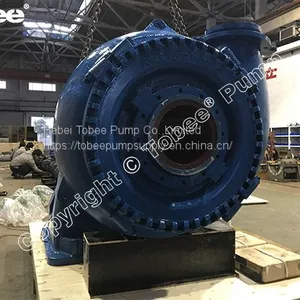

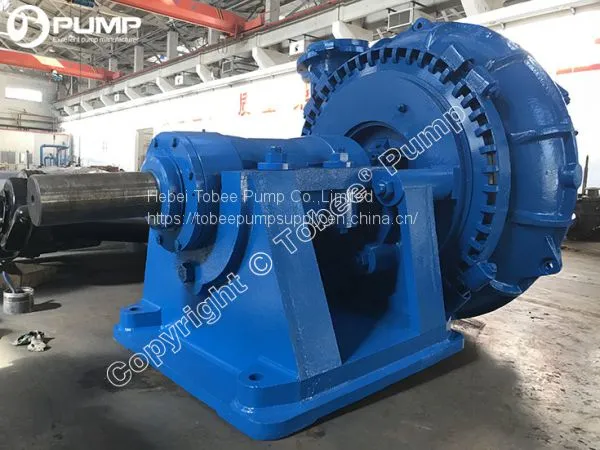

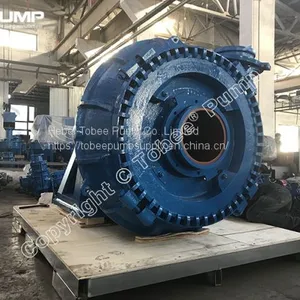

Help CenterTobee® 8x6 Sand Gravel Pump-www.slurrypumpsupply.com
Related Products
-
Tobee® TG6x4D Tunnel Gravel Pumps-www.slurrypumpsupply.comUS$ 800 - 1200MOQ: 1 Piece -
Tobee® TG/TGH Gravel Dredge Pumps-www.slurrypumpsupply.comUS$ 800 - 1200MOQ: 1 Piece
-
China Centrifugal Gravel Sand Pump for Mineral ProcessingUS$ 1000 - 3000MOQ: 1 Set
-
China 16x14 Sand Booster Pump Delivering in Dredging and Sand MiningUS$ 1000 - 3000MOQ: 1 Set
-
Tobee® Gravel Sand Pump-www.slurrypumpsupply.comUS$ 800 - 2000MOQ: 1 Piece
SPECIFICATIONS:
Size: 8" x 6"
Capacity: 126-576m3/h
Head: 6-45m
Speed:800-1400rpm
NPSHr: 3-4.5m
Eff.: 60%
Power: Max.120kw
Handling solids: 127mm
Seal arrangement: Packing seal, Expeller seal, mechanical seal
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc
Tobee® 8x6 Sand Gravel Pump is a kind of cantilevered single-casing centrifugal pump. Pump body is installed with junction plate and cover plate by clamp, which makes the disassembly convenient and quick. The can be equipped with diesel engines or electric motors driven directly, 8x6 Sand Gravel Pump has the advantages of working stability, little vibration, low hydraulic loss, high efficiency, light weight, simple structure and easy maintenance, It is mainly used for dredging river, pipe-jacking system, sucking gravels, blast slag transporting, ore mining etc
Design Features:
• The structure of TG series gravel pump is mainly single-casing and horizontal type, The outlet direction can be positioned 360°, easy to install.
• Shaft Components adopt cylinder structure, which is convenient to adjust the gap between impeller and front wearing plate, The shaft uses grease lubrication.
• Shaft Seal: packing seal, expeller seal and mechanical seal.
• Broad flow passage & good anti-Cavitation property & highly efficient wear resistance.
• The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property.
• Variable speeds and modals to ensure smooth operation, Additionally, Long service life and high operation efficiency offer reliable performance in a tough operating environment.
Tobee® 8x6 Sand Gravel Pump Structural Design:
Tobee® 8x6 Sand Gravel Pump On-site Applications:
sludge seed pump
diesel desilting dredger pump
marine sand pump
river sand dredging machine
electric dredge pump
alluvial dredge pump
diesel engine gravel pump
diesel engine drive mud pump
river sand pump
sand gravel pumps
gravel pump 8-inch
high pressure dredge pump
