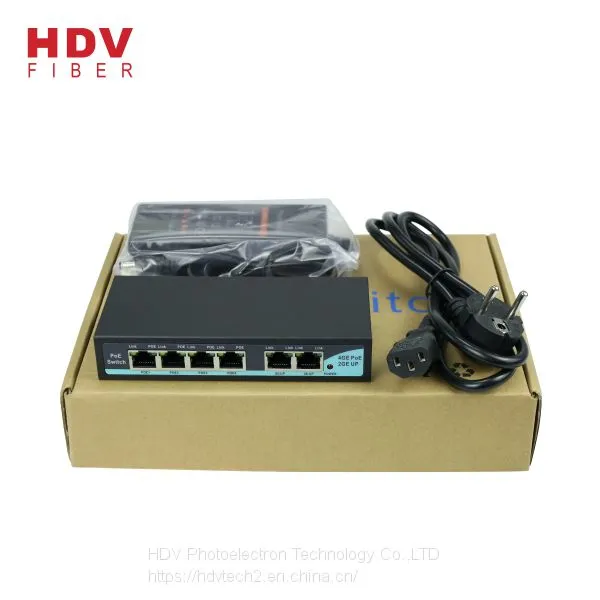

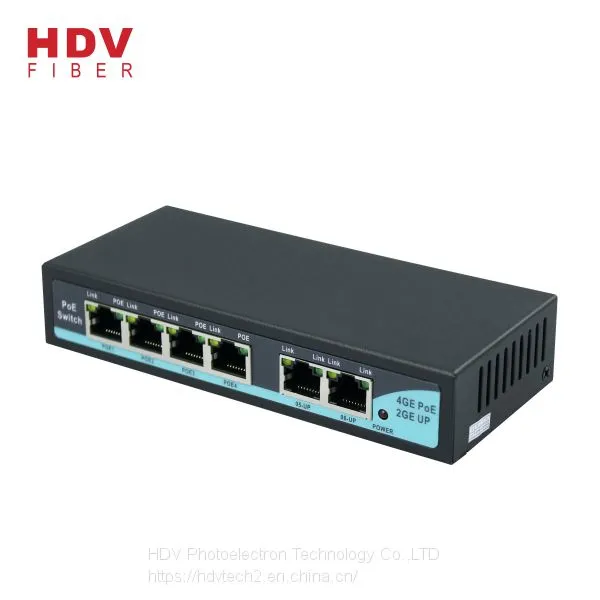

Hot Selling 6 Port POE switch With 4*1000M POE Ports and 2*1000M Ethernet RJ45 Ports

Hot Selling 6 Port POE switch With 4*1000M POE Ports and 2*1000M Ethernet RJ45 Ports



Description:

HDV-4GE POE+2GE UP-WD is a standard PoE powered Ethernet switch designed and developed by HDV optical communication equipment. It adopts the latest high-speed Ethernet switch chip and ultra-high backplane bandwidth design. It has strong data processing capabilities and improves smooth data transmission performance.Supports 4*10/100/1000Mbps Ethernet RJ45 ports with PoE function and 2*10/100/1000Mbps Ethernet uplink RJ45 ports, each port supports auto rollover function (Auto MDI / MDIX).Among them, 4 ports with PoE function, all support IEEE 802.3af / at standard PoE power supply, which can be used as a power supply device for Ethernet. The maximum power supply of a single port is 30W and the maximum power of the whole machine is 120W. It can automatically detect and identify the IEEE 802.3af / at standard Powered equipment.Powered by a network cable, it supports 250 meters of long-distance transmission and supports priority mechanism power supply.



Features:

• Port Performance

Provide 4*10/100/1000Mpbs RJ45 adaptive high-speed forwarding data port;

Provide 2 * 10 /100/1000Mpbs RJ45 uplink port;

Each port supports MDI / MDIX automatic rollover and auto-negotiation, and supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;

• PoE Power Performance

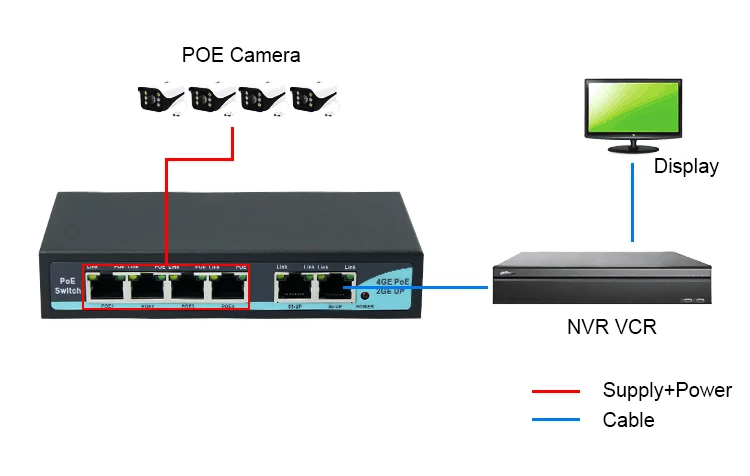

4 * 10 /100/1000Mpbs RJ45 port supports PoE + power supply, meeting the requirements of PoE power supply in security monitoring, teleconference system, wireless coverage and other scenarios;

Comply with IEEE 802.3af / at PoE power supply standard, the maximum PoE output power of the whole machine is 120W, and the maximum PoE output power of a single port is 30W;

Automatically identify PoE devices for power supply without damaging non-PoE devices;

The PoE port supports the priority mechanism. When the remaining power is insufficient, it guarantees the power supply of the high-priority port first to avoid overloading the device;

• Stable and reliable equipment

The low power consumption and quiet design of the host ensure the stable operation of the product;

Adopt self-developed power supply and highly redundant design to provide long-term stable PoE power output;

The equipment meets national CCC standards, fully meets safety requirements, and is safe and reliable to use;

• Simple operation and strong scalability

Simple and convenient to use, no configuration, plug and play, strong compatibility;

High-speed transmission, data without packet loss, flexible expansion, so that the network is not restricted by the layout of power lines, saving user costs;

Meet the network environment that requires high-density PoE power supply;

It is suitable for financial, government agencies, hotels, shopping malls, campuses, hospitals and small and medium enterprises to form cost-effective networks;



Specifications:

Network Standard	• IEEE 802.3,IEEE 802.3u,IEEE 802.3x, IEEE 802.3af,IEEE 802.3at

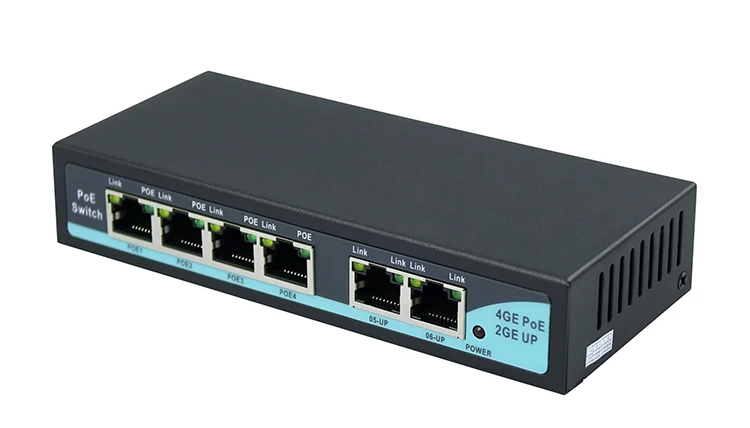

Port	• 4 * 10 / 100/1000Mbps RJ45 port • 2 * 10 / 100/1000Mbps RJ45 uplink port
PoE Power Supply	• 4 * 10 / 100/1000Mbps RJ45 port supports PoE + power supply (Data / PoE) • Maximum single port power supply is 30W • The power supply of the whole machine is 65W, 96W, 120W (optional)
PoE Connection	• 1-4 ports support IEEE802.3af / at • Support RJ45 network port 1/2 +, 3 / 6- line pair

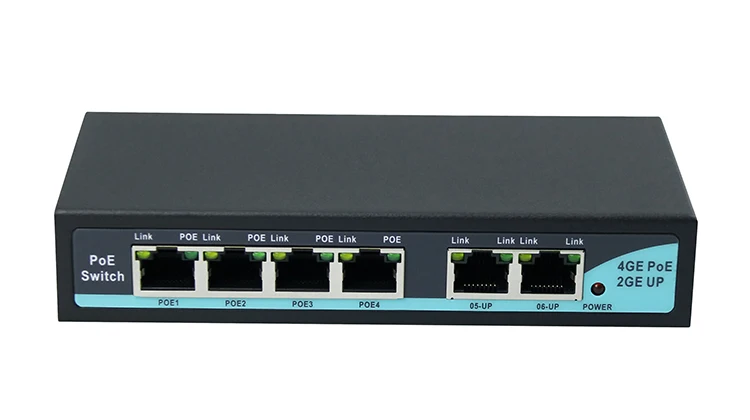

Indicator Light	• Forwarding data port has a LINK / ACT.1000Mbps indicator • The uplink port has two LINK / ACT.1000Mbps indicators • PoE status indicator • Machine power indicator
Performance	• Store and forward • Support 2K MAC address table depth • 12Gbps backplane bandwidth
Forwarding Rate	• 10Mbps: 14880pps / port • 100BASE-T: 148800pps / port • 1000BASE-T: 1488095pps/port
Port Function	• Fast and forward, MAC automatic learning and aging, power supply priority mechanism •IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Use Environment	• Working temperature: -10 ℃ --55 ℃

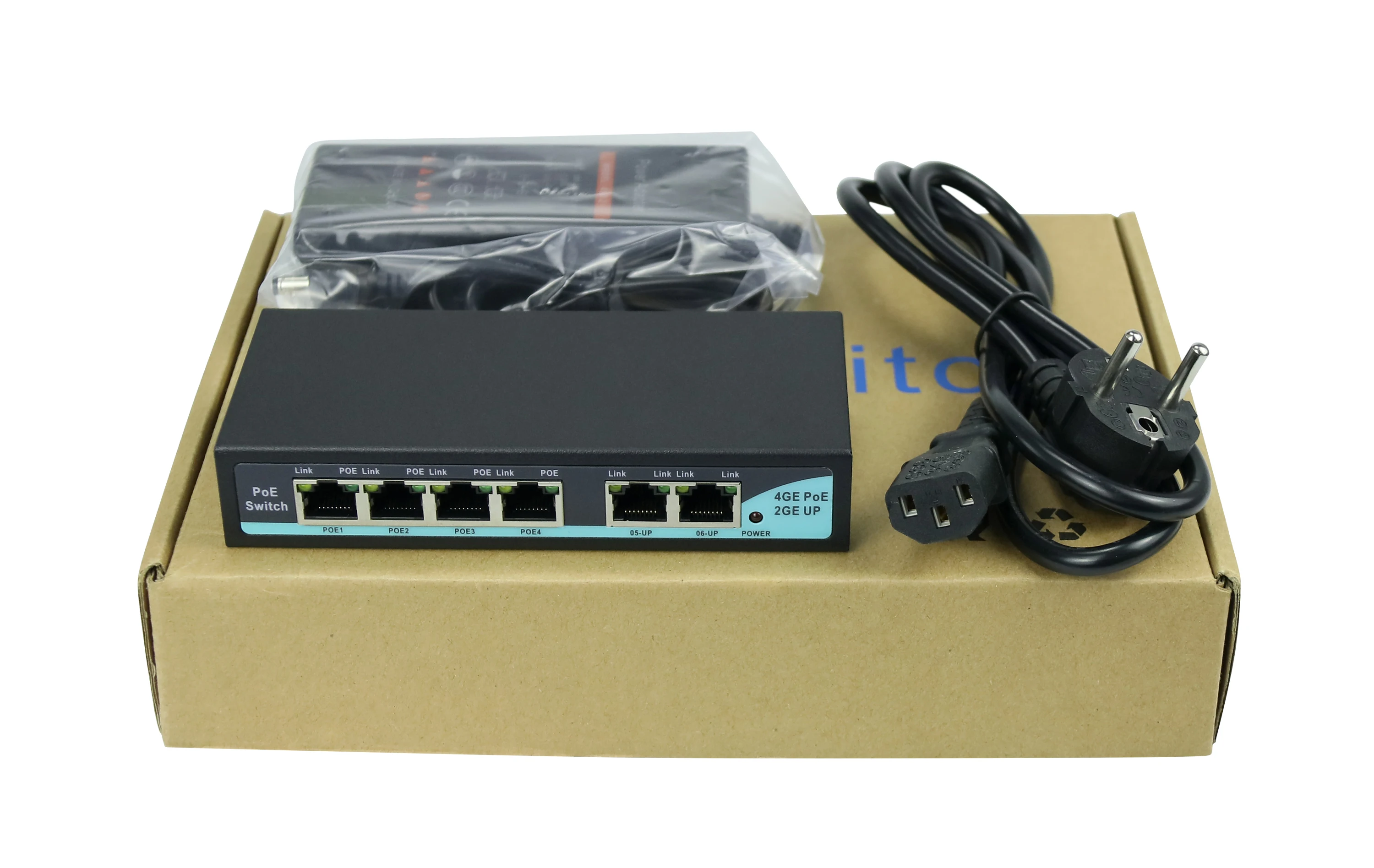

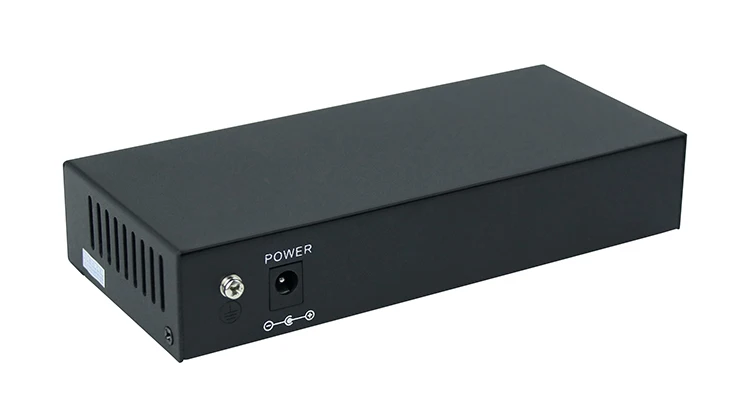

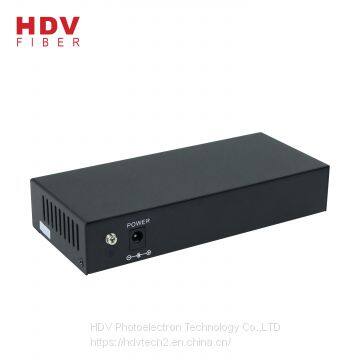

Power Supply	• External power supply • INPUT:110VAC-265VAC,47HZ-63HZ • OUTPUT:DC52V-2.3A • 65W,96W,120W(optional)
Weight and size	•  0.27KG •  150mm*65mm*30mm(L*W*H)
