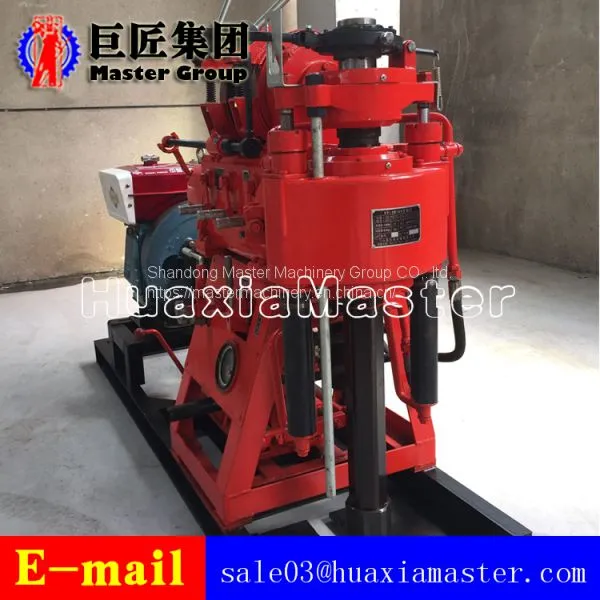

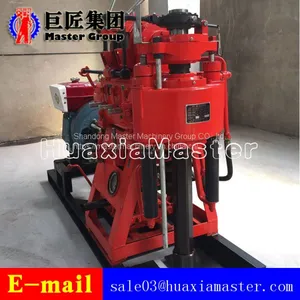

Help CenterXY-100 Hydraulic Water Well Drilling Machine Small 100 m Core Sampling Drilling Rig
Related Products
-
Xy-150 Hydraulic Water Well Drilling Rig Construction Foundation Survey Drilling MachineryUS$ 4000 - 6000MOQ: 1 Set -
XY-180 Large Diameter 100-meter Geological Exploration Core Drilling Machine Water Well Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
XY-200 Water Well Drilling Rig Hydraulic Core Drilling Machine Building Foundation Survey EquipmentUS$ 6000 - 7500MOQ: 1 Set
-
Metal Mine Full Hydraulic Steel Obtained Core Prospecting RigUS$ 4000 - 6000MOQ: 1 Set
-
KY-250 Water and Gas Exploration Drilling Rig/metal Exploration Drilling RigUS$ 4000 - 5500MOQ: 1 Set
Applications of XY-100 water well drilling rig
XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 water well drilling rig
Drilling depth |
110 |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm /42mm |
Drilling angle |
90 |
Drilling rig weight (exclude diesel engine) |
610kg |
Unity machine dimensions |
2.1*0.9*1.3m |
Spindle | |
Spindle speed |
130/300/480/730/830/1045 r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity with single rope |
1600kg |
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
Wire rope caliber |
13mm |
Wire rope cubic measure |
35mm |
Hug floodgate caliber |
254mm |
Hug floodgate belt width |
50mm |
Distance between drill and hole |
230mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) |
170l/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Power | |
Diesel engine |
S1100 |
Electric motor |
Y160M-4 / 10KW |
