FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine

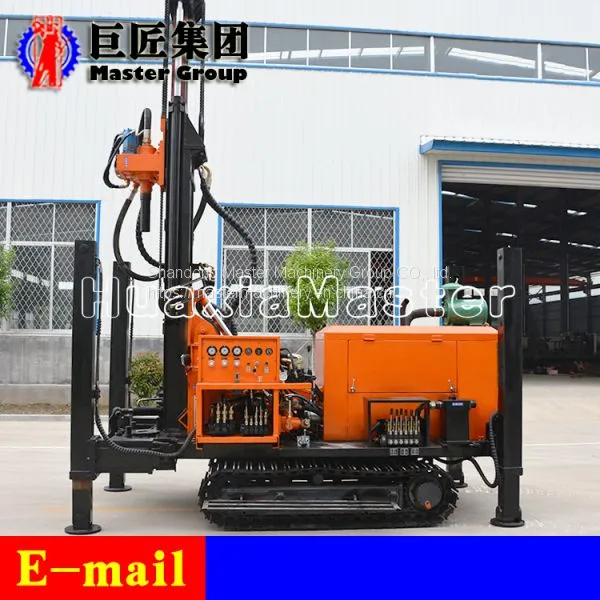

FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine photo-1

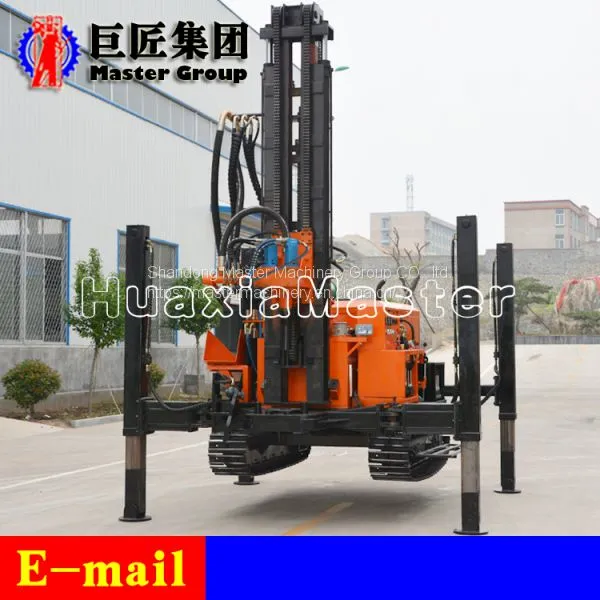

FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine photo-2

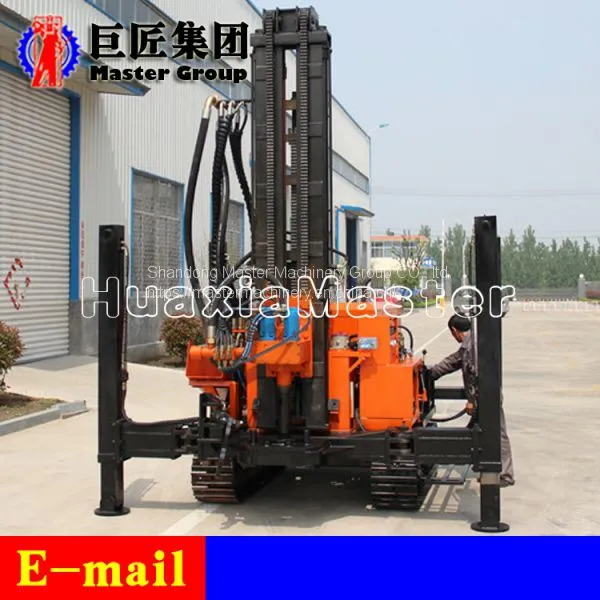

FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine photo-3

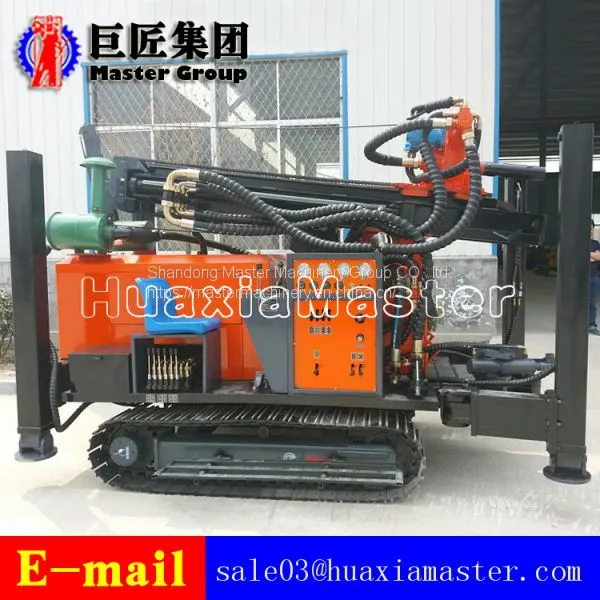

FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine photo-4

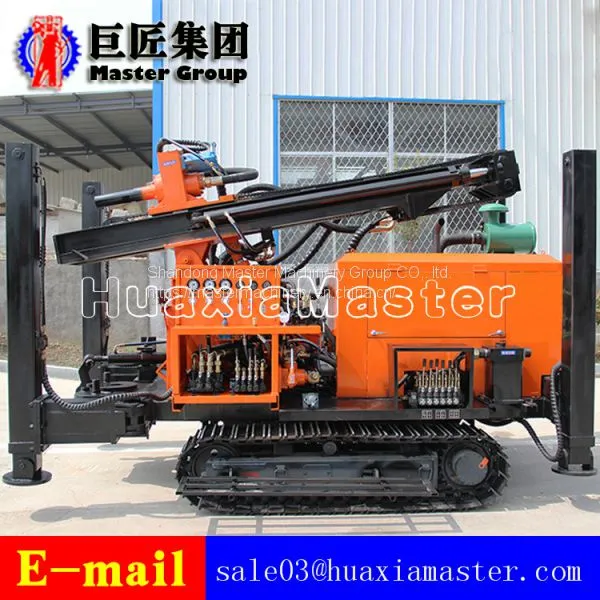

FY200 Crawler Pneumatic Water Well Drilling Rig Suitable for Drilling Rig and Geothermal Drilling Machine photo-5
US$ 6000 - 7500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
FY 200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Brand Name HuaxiaMaster
Place of Origin China
Model Number FY 200
Type Rotary Drilling Rig
Certification ISO-9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty Six Months
Weight 4.6 T
Dimension(L*W*H) 3800*1600*2450 MM
Power Type Diesel
Voltage 380 V
Usage Water Well
Condition New
Power(W) 65 KW

Keywords:pneumatic water drilling machine, pneumatic rock drill, pneumatic press

1. The applications of FY200 crawler type gas drilling rig

civil engineering drilling

geothermal drilling

drilling with large diameter

deep drilling footage

fast, flexible and efficient.

2.The specifications of FY200 crawler type gas drilling rig


Model

FY200

Gross weight

t

4.6

Dimension

mm

3800*1600*2450

Aperture

mm

140-325

Drilling depth

m

200

Feed stroke

mm

3000

Travel speed

km/h

2.5

Grade ability

max.

30°

Rising height from ground

mm

250

Wind pressure

mpa

1.7-3.0

Air consumption

m³/min

17-35

Engine power

kw

65

Rotary speed

rpm

50-70

Rotation torque

n.m

5000-6500
