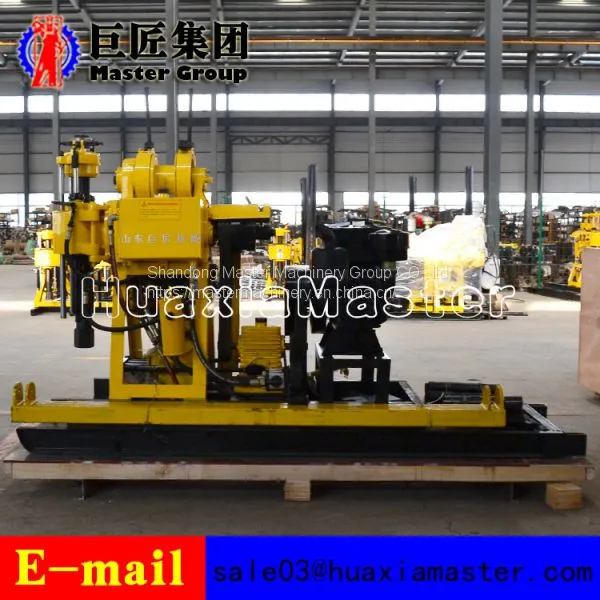

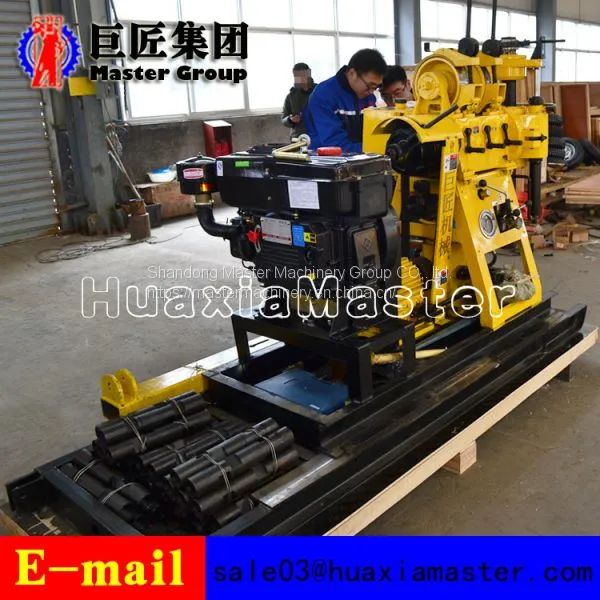

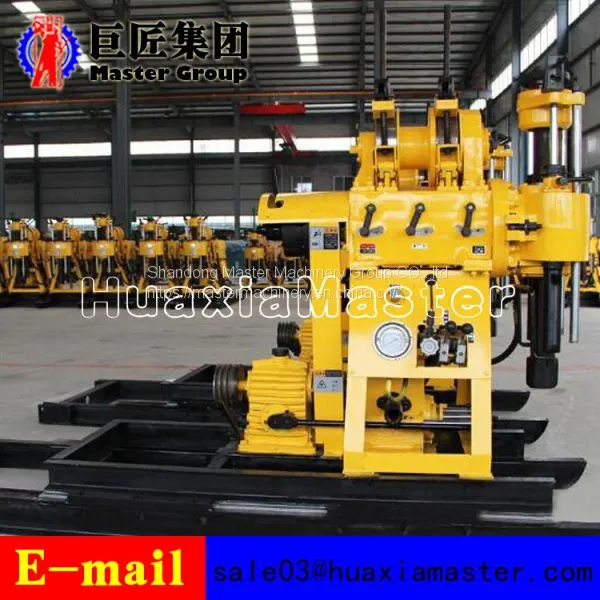

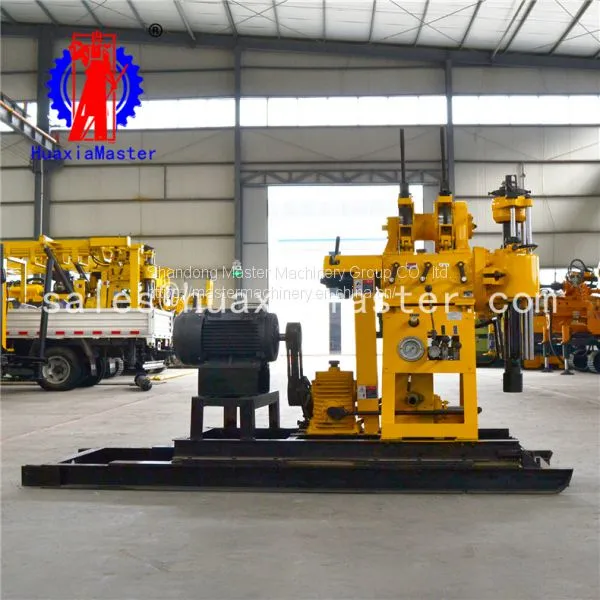

Help CenterHZ-200YY Water Well Drilling Rig Hydraulic Core Drilling Machine Building Foundation Survey Equipment
Related Products
-
XY-3 600 Meter Depth Water Well Drilling Rig Geological Survey and Geophysical Exploration EquipmentUS$ 6000 - 7500MOQ: 1 Set -
XYD-3trailer-type Professional Geological Exploration Walking Hydraulic Drilling Machine AccessoriesUS$ 4000 - 6000MOQ: 1 Set
-
XY-100 Hydraulic Water Well Drilling Machine Small 100 m Core Sampling Drilling RigUS$ 6000 - 7500MOQ: 1 Set
-
Xy-150 Hydraulic Water Well Drilling Rig Construction Foundation Survey Drilling MachineryUS$ 4000 - 6000MOQ: 1 Set
-
XY-180 Large Diameter 100-meter Geological Exploration Core Drilling Machine Water Well Drilling RigUS$ 4000 - 6000MOQ: 1 Set
1.The range of application of HZ-200YY drilling rig
HZ-200YY drilling rig is mainly used for Domestic water well,field irrigation well, engineering water well,precipitation well and so on; geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees.
2.The main characteristic of HZ-200YY drilling rig
a. The highest speed can reach 1045r/min with 5 gears, improved drill efficiency
b. Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque
c.Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.
d.Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
e.Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
3.The technical parameterof HZ-200YY drilling rig
Max open hole diameter |
300mm |
End hole diameter |
75mm |
Drill rod diameter |
50mm |
Drilling angle |
90° |
Drill weight (without power) |
975kg |
Triangle conveyer belt |
B950 x 4; B1700 x 3 |
Main machine moving distance |
300mm |
Power |
Diesel engine 20HP |
Electric motor 15kw | |
Spindle | |
spindle speed |
64, 128, 287, 557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity |
2400kg |
Single line lifting speed |
0.41, 0.82, 1.64m/s |
Wire rope diameter |
13mm |
Wire rope length |
35m |
Reel diameter |
140mm |
Hug floodgate diameter |
260mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement |
Diesel engine 170L/min |
Electric motor 150L/min | |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Inlet pipe diameter |
40mm |
Outlet pipe diameter |
30mm |
Triangle conveyer belt |
B1728mm |
