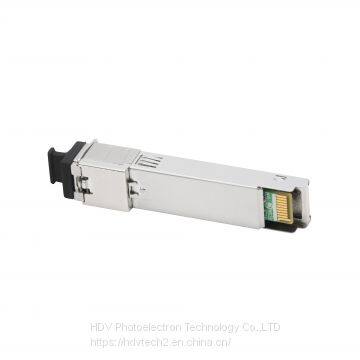

Optical Transceiver GPON SFP ONU ONT Compatible Huawei ZTE

US$ 23 - 26 MOQ: 100 Pieces

Key Specifications

Brand Name:

HDV

Place of Origin:

China

Model Number:

HL-GPON OLT C+++-20D

HDV Photoelectron Technology Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

7 days

Brand Name HDV

Place of Origin China

Model Number HL-GPON OLT C+++-20D

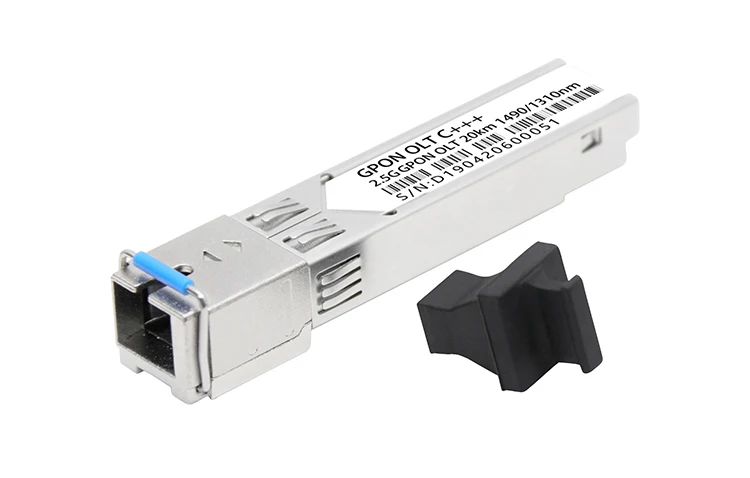

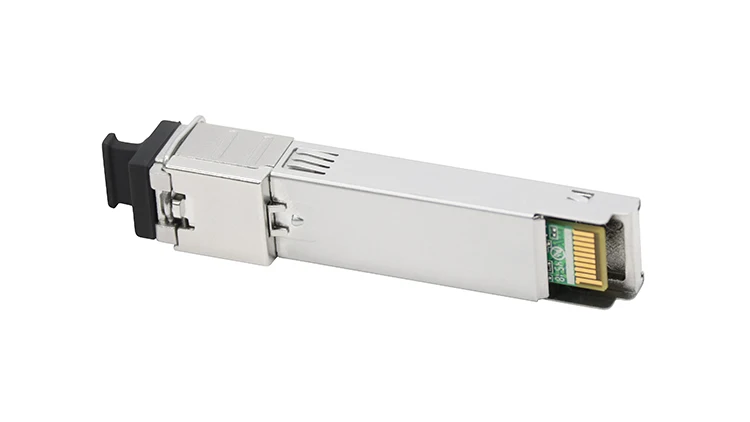

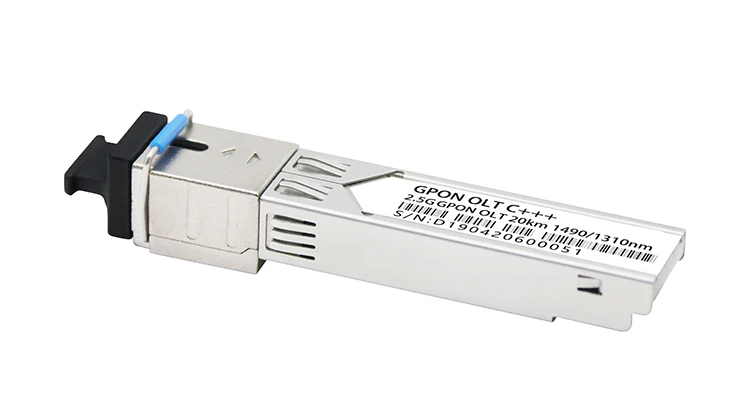

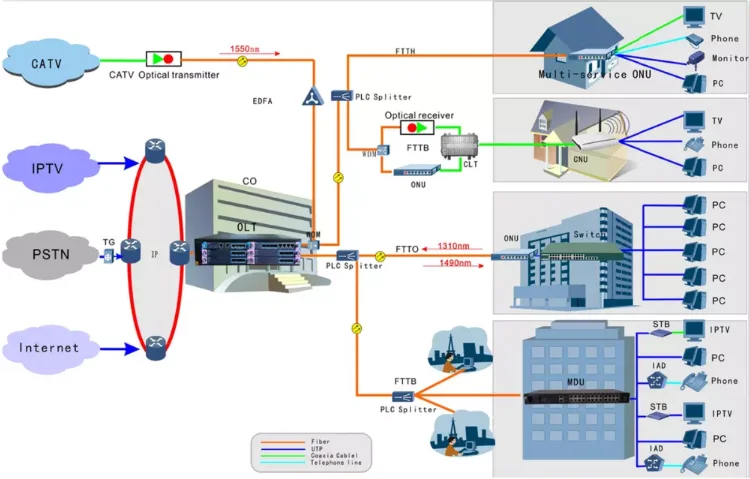

Optical transceiver GPON SFP ONU ONT compatible Huawei ZTE

1.Product Features

Support ITU-T G.984.2 GPON OLT C++ Enhanced application

Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx

1490nm continuous-mode transmitter with DFB LD

1310nm burst-mode receiver with APD-TIA

2-wire interface for integrated digital diagnostic Monitoring

Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface

Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance

2.Operating Condition

3.Characteristics

All performance is specified at whole working temperature and conditions

Parameter	Unit	Min.	Typical	Max.
Transmitter
TX Central Wavelength	nm	1480	1490	1500
Spectral Width (-20dB)	nm			1
Side Mode Suppression Ratio (SMSR)	dB	30
Mean Launched Power (BOL)	dBm	7	7.5	10
Mean Launched Power (TX Off)	dBm			-45
Extinction Ratio	dB	8.2
Optical Return Loss Tolerance	dB	-12
Transmitter and dispersion Penalty	dB			1
Transmitter Mask(PRBS223-1&2.488G)	Compliant With ITU-T G.984.2
Receiver
Receive Wavelength	nm	1290	1310	1330
Sensitivity (BOL)(PRBS223-1&1.244G,ER=10,BER-4)	dBm			-33
Sensitivity (BOL)(PRBS223-1&1.244G,ER=10,BER-10)	dBm			-31
Overload(PRBS223-1&1.244G,ER=10,BER-10)	dBm	-12
Receiver Burst Mode Dynamic Range	dB	15
Damage Threshold for Receiver	dBm	5
SD Assert Level	dBm			-33
SD De-assert Level	dBm	-45
SD Hysteresis	dB	0.5		6
WDM Filter isolation to 1550nm	dB	38
WDM Filter isolation to 1650nm	dB	35
Electrical Interface Characteristics
Data Input Swing Differential/TX	mV	200	-	2000
Data Output Swing Differential/RX	mV	400		1600
Date Differential Impedance	Ω	90	100	110
LVTTL Output High	V	2.4		Vcc
LVTTL Output Low	V	0		0.4
LVTTL Input High	V	2.0		Vcc+0.3
LVTTL Input Low	V	0		0.8
Timing Characteristics
Guard Time (Tg)	ns	25.6
Reset Pulse Width (Tr)	ns			12.8
Reset Delay (Trd)	ns			12.8
Receiver Preamble Time (Tp)	ns			140
SD Assert Time (TSDA)	ns			100
SD De-assert Time (TSDD)	ns			12.8
RSSI Trigger Delay (Ttd)	ns	25
RSSI Trigger Pulse Width (Tw)	ns	500
Internal I2C Delay (Twait)	us			500
