Product Overview:
EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.

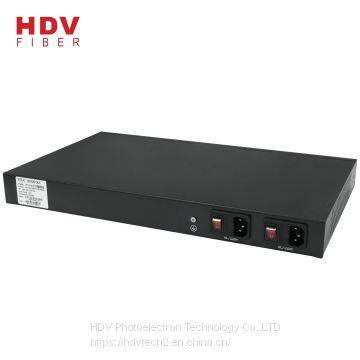

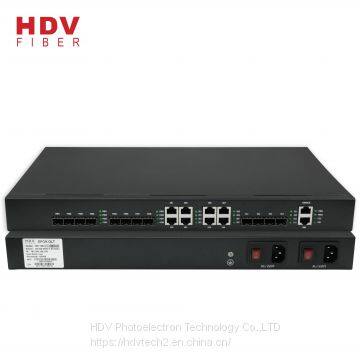

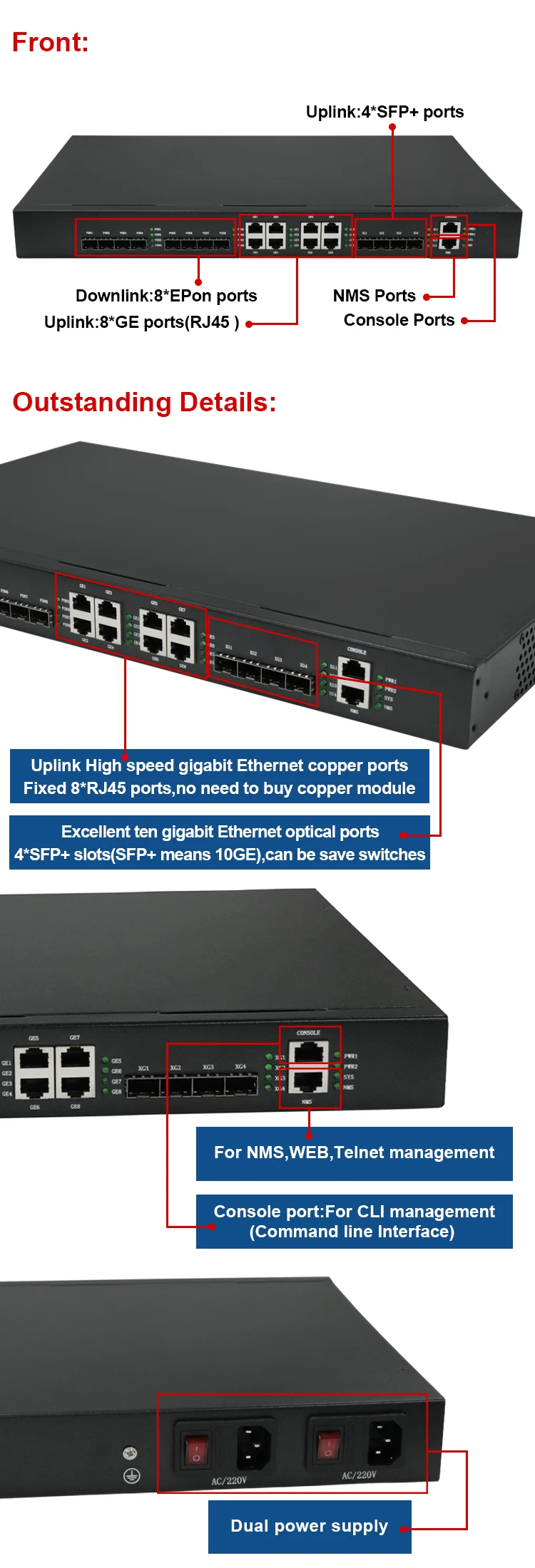

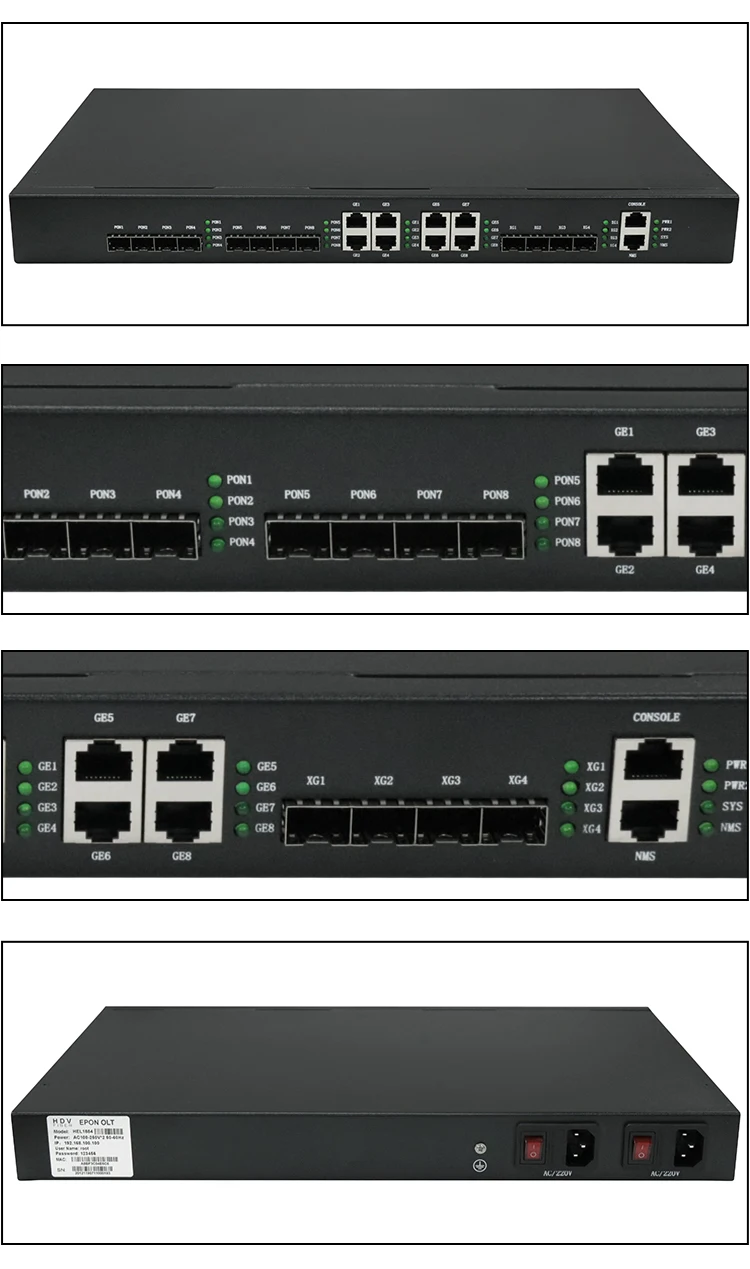

The OLT provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.

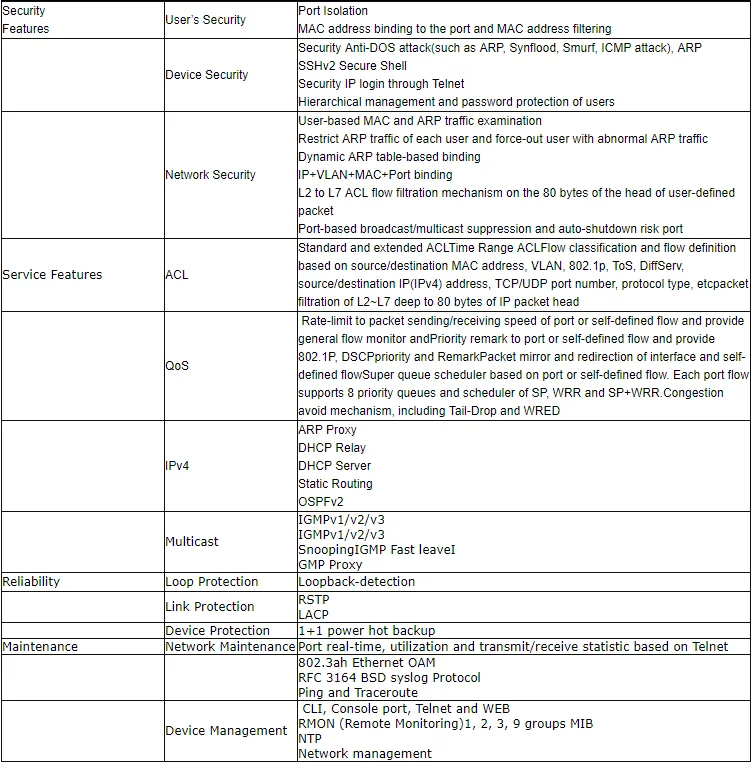

Product Features:
Item |
EPON OLT 8 PON Port |
|
PON Features
|
IEEE 802.3ah EPON China Telecom/Unicom EPON Maximum 20 Km PON transmission distance Each PON port supports the max. 1:64 splitting ratio Uplink and downlink triple churning encrypted function with 128Bits Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade |
L2 Features |
MAC |
MAC Black Hole Port MAC Limit 16K MAC address |
VLAN |
4K VLAN entries Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources |
|
Spanning Tree |
STP/RSTP Remote loop detecting |
|
Port |
Bi-directional bandwidth control for onu Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring |
Purchase Information:
Product name |
Product description |

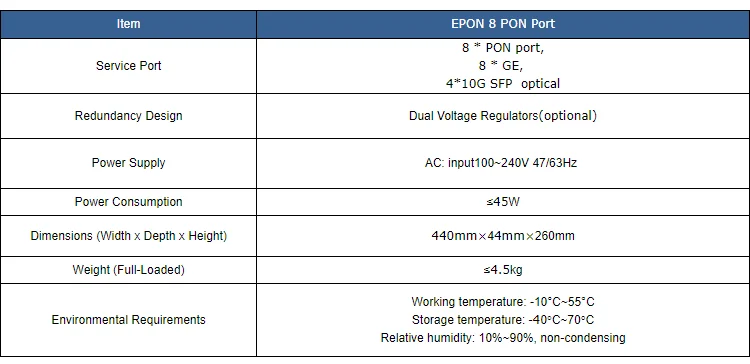

EPON OLT 8PON |
8 * PON port, 8 * GE, 4 * 10G SFP, double AC power supply with optional |
