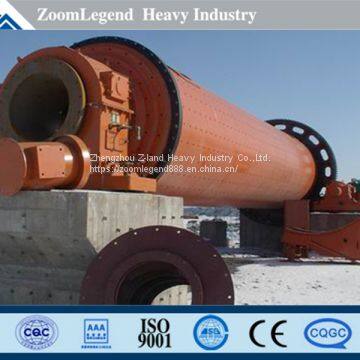

High capacity industrial ball mill for sale
- 10 Set / Sets per Month
- Qingdao,Shanghai Port
- T/T L/C
- 30 days
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Brand Name: | zoomlegend heavy industry | Place of Origin: | China | Model Number: | dia.1.2*2.4m |
Type: | Other, grinding machine | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 years | Weight: | 12T | Application: | Cement,silicate products, new building materials, refractory material,black and non-ferrous metal processing and glass ceramics,etc. |
Condition: | New | Power(W): | 30kW | Motor Type: | AC Motor |
Capacity(t/h): | 1.5-4.8t/h |
Product Description
Introduction
Industrial Ball Mill is the key equipment for crushing material after primary crushed.
The ball mill is one of the high fine grinding machines, widely used in the industrial production. There are many kinds, such as tube ball mill, rod ball mill, cement ball mill, horizontal ball mill,
Ball mill is suitable for grinding all kinds of ores and other materials. It is widely used in mineral processing, building materials and chemical industry. It can be divided into dry grinding and wet grinding. According to the different types of drainage, there are two types: grid type and overflow type.According to the shape of the barrel, it can be divided into four types: short barrel ball mill, long barrel ball mill, tube mill and cone mill.
How to improve efficiency?
1. Increase effective volume
2. Increase filling rate and rotation rate
3. Change the shape of grinding medium
Structural features
(1) The main bearing adopts the large-diameter double-row centering roller bearing, which replaces the original sliding bearing, reduces friction and energy consumption, and easy to start.
(2) Keep the end cover structure of ordinary mill, large diameter inlet and outlet, large capacity.
(3) Feeder is divided into two types: combined feeder and drum feeder, with simple structure and separate installation.
(4) No inertial impact, stable operation of the equipment, and reduce the grinding machine shutdown and maintenance time, improve efficiency.
Working Principle
This machine is a horizontal cylindrical rotating device, external gear transmission, two warehouses. The material is uniformly fed into the mill by the feeding device through the hollow shaft of the feeding material. The chamber has a step liner or a corrugated liner, which is filled with steel balls of different specifications, and the cylinder rotates to generate centrifugal force to bring the steel ball to a certain height. Drops, causing heavy impact and grinding on the material. After the material reaches a rough grinding in a warehouse, it enters the second warehouse through a single-layer compartment board. The warehouse is provided with a flat liner with steel balls inside to further grind the material. The powder is discharged through the discharge raft to complete the grinding operation.
What can you get?
1. Free customized solution
2. 100% China factory price and no middleman
3. Installation and maintenance guide
Technical Parameters
Model | Rotary Speed (r/min) | Ball Loading (t) | Feed Size (mm) | Discharge Size (mm) | Output (t/h) | Power (kw) | Weight (t) |
Φ900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
Φ900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
Φ1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Φ1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Φ1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Φ1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Φ1500×3500 | 29.7 | 7.5 | ≤25 | 0.075-0.8 | 3.3-8.8 | 75 | 16.5 |
Φ1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
Φ1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Φ1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Φ1830×3500 | 25.4 | 13 | ≤25 | 0.074-0.4 | 4-8 | 130 | 30 |
Φ1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
Φ1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Φ1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
Φ2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
Φ2100×3600 | 23.7 | 18 | ≤25 | 0.075-0.8 | 4.5-33 | 180 | 37 |
Φ2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
Φ2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
Φ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
Φ2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Φ2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
Φ2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
Φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
