Help CenterHot Sales Continuous Ball Mill Made in China
Related Products
-
High Quality and Good Price Alumina Ball Mill for SaleUS$ 16500 - 17500MOQ: 1 Set -
Good Quality and Price Limestone Ball Mill for SaleUS$ 19500 - 21000MOQ: 1 Set
-
High Efficiency Vibrating Mill in Uzbekistan for SaleUS$ 4500 - 28000MOQ: 1 Set
-
High Quality Ore Dressing Ball Mill Made In China For SaleUS$ 8500 - 12000MOQ: 1 Set
-
High Efficiency Energy Saving Ceramic Ball Mill Made in ChinaUS$ 22800 - 25800MOQ: 1 Set
Introduction
In the continuous ball mill, the material processing and production are continuous during the grinding process. Feeding and discharging are carried out continuously, and can be produced in open and closed circuits. Open circuit work does not require strict control of product granularity and large processing capacity. In closed circuit, the material that does not meet the granularity of the finished product is re-ground by the return device. Most of the ball mills produced are continuous ball mills , which have the widest range of applications.
Advantages
1.Time saving: The continuous operation of the ball mill eliminates the time needed for the ball mill to feed and discharge.
2.Automation: The control system used for continuous operation is relatively advanced and has a high degree of automation.
3.Material adaptability: The continuous operation mode enables the ball mill to adjust production according to the state of the material, and the grinding effect is better.
4.Energy saving:The continuous operation method requires higher temperature of the cylinder. Such a temperature condition coupled with a dynamic pulping method makes the viscosity of the ground material lower, which reduces water consumption and evaporation of the material. Lower power consumption.
|
|
Structure and composition

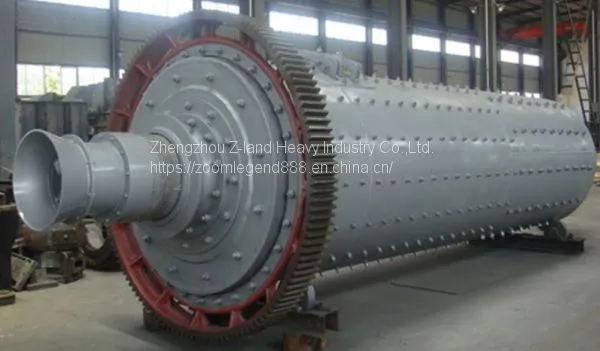

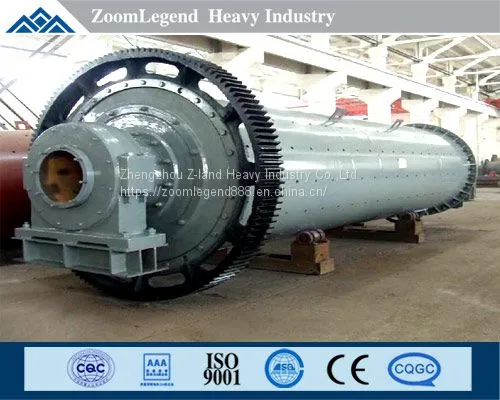

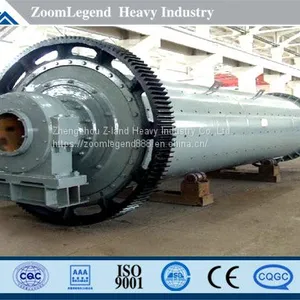

1. The continuous ball mill is composed of the main parts such as the feeding part, the discharging part, the turning part, and the transmission part (reducer, small transmission gear, motor, and electronic control). The hollow shaft is made of cast steel, and the inner lining can be replaced. The rotary gear is processed by casting hobbing. The cylinder is equipped with a wear-resistant liner, which has good wear resistance. The machine runs smoothly and works reliably.
2. Feeding device of continuous ball mill: The feeding device is composed of a feeding roller and a feeding spiral cylinder, and a liner is installed in the feeding roller.
3. Continuous ball mill bearing device: The main bearing is a sliding bearing. The mill is supported on two main bearings through hollow shafts, and the weight of the rotating part is all borne by the main bearings.
4. Continuous ball mill barrel rotating device: The rotating part of the barrel is composed of a barrel and a grinding head made of high-quality carbon steel coils. The cylinder is the main body of the mill, and one of the main working parts of the mill is ground into a fine powder by being impacted and ground by the grinding body in the cylinder.
5. Continuous ball mill transmission: The transmission is mainly composed of motor, transmission shaft, reducer, coupling and auxiliary equipment. The transmission mode is edge transmission, that is, the small gear on the transmission shaft and the large gear fixed on the tail of the cylinder. Engage and drive the mill to rotate.
Technical Parameters
Specification (m) |
Output (t / h) |
Speed (r / min) |
Grinding body (T) |
Motor |
Reducer |
||
model |
Power (kW) |
model |
Speed ratio |
||||
φ0.9 × 1.8 |
0.3 ～ 1.6 |
38.96 |
1.6 |
Y250M-8 |
30 |
ZD25-5 |
3.15 |
φ1.2 × 4.5 |
0.7 ～ 4 |
30.43 |
4.5 |
Y280M-6 |
55 |
ZD30-10 |
5.6 |
φ1.5 × 5.7 |
4 ～ 8 |
26.34 |
12 |
JR127-8 |
130 |
ZD40-7 |
4 |
φ1.83 × 7 |
6 ～ 8 |
23.99 |
20 |
JR138-8 |
245 |
ZD60-8 |
4.481 |
φ2.2 × 7 |
14 ～ 15 |
21.4 |
31 |
JR158-8 |
380 |
ZD70-9 |
5 |
φ2.4 × 7 |
15 ～ 17 |
twenty one |
36 |
JR1510-8 |
475 |
ZD80-9 |
5 |
φ2.6 × 8 |
18 ～ 21 |
19.33 |
51 |
YR5602-8/ Y160L-8 |
630 / 7.5 |
ZD80-11 / ZQ50 |
6.3/ 48.57 |
φ2.8 × 10 |
27 ～ 30 |
19.18 |
66 |
YR5604-8/ Y200L-8 |
800/15 |
MBY800-5.6/ ZSY250 |
5.6 / 90 |
φ3.0 × 11 |
35 ～ 40 |
18.5 |
95 |
YRKK6303-8/ Y200L-8 |
1250/15 |
MBY900 /ZSY250 |
6.3 / 90 |
φ3.2 × 13 |
45 ～ 50 |
17.7 |
130 |
YRKK7107-8/ Y225M-8 |
1600/22 |
MBY1000-7.1/ ZSY280 |
7.1 / 90 |
