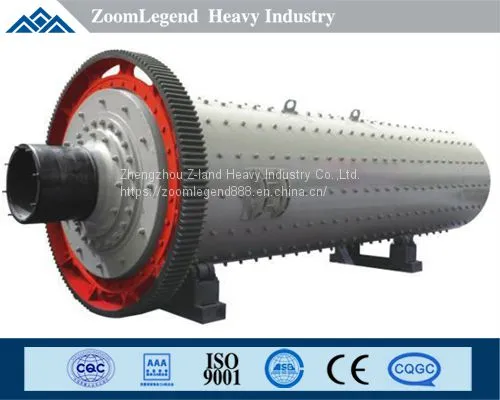

High Quality Ore Dressing Ball Mill Made In China For Sale

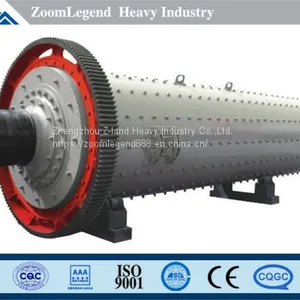

High Quality Ore Dressing Ball Mill Made In China For Sale thumbnail-1

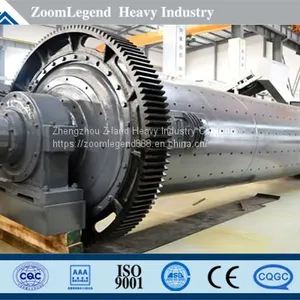

High Quality Ore Dressing Ball Mill Made In China For Sale thumbnail-2

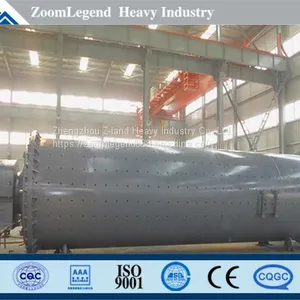

High Quality Ore Dressing Ball Mill Made In China For Sale thumbnail-3
High Quality Ore Dressing Ball Mill Made In China For Sale photo-1

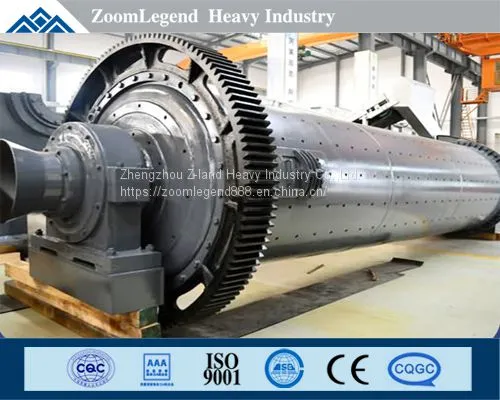

High Quality Ore Dressing Ball Mill Made In China For Sale photo-2

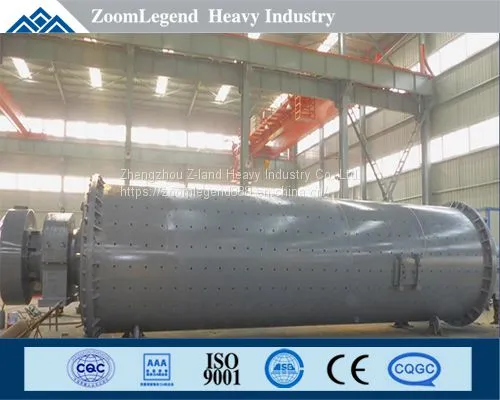

High Quality Ore Dressing Ball Mill Made In China For Sale photo-3
US$ 8500 - 12000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZoomLegend
Place of Origin:
China
Model Number:
GMQG1535
Contact Supplier Request Quote Chat Now
Zhengzhou Z-land Heavy Industry Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZoomLegend
Place of Origin China
Model Number GMQG1535
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 16.3T
Dimension(L*W*H) 3.4-14
Power Type Electric
Application suitable for mineral processing, metallurgy, chemical industry, building materials, cement industry
Condition New
Power(W) 90000
Capacity(t/h) 3.4-14

Discharge ore:0.8-0.074mm or 3.0-0.074mm

Capacity: 2.8-310t/h

Application: suitable for mineral processing, metallurgy, chemical industry, building materials, cement industry

Materials: gold, copper, lead and zinc, hematite, limonite, bauxite, manganese and other metals and non-metallic minerals


Introduction

Dressing ball mill used in mineral processing industry, generally being processed materials including iron, copper, molybdenum and various non-ferrous metals, it is the core function of grinding process was carried out on the material, many contemporary material because of its purity is not high, in turn, led to the decrease of the comprehensive utilization, so carry on the purification process, and complete the process of main equipment is required for the beneficiation of ball mill.

Wet grinding is generally adopted in mineral processing production. At present, the more common ball mill for mineral processing is grid type ball mill and overflow type ball mill.


Working principle

Material from the feed (hollow shaft) into the cylinder body, when the cylinder rotate, grinding medium because of inertia and centrifugal force effect, the effect of friction, making it near the cylinder liner was taken away by cylinder, when was brought to a certain height, be cast down by its own gravity, the whereabouts of the grinding medium like projectile of cylinder body of the material to break.Quartz stone material from the feeding device through the feed hollow shaft screw evenly into the mill a warehouse, the warehouse has a ladder lining board or corrugated lining board, containing steel balls of different specifications, cylinder rotation will produce centrifugal force to bring the steel ball to a certain height after falling, the material has a pounding and grinding effect.After the coarse grinding of the materials in the first warehouse, the materials will enter the second warehouse through the single-layer compartment plate, which is inlaid with a flat lining plate and contains steel balls to further grind the materials.

Characteristic

1.The ball mill adopts rolling bearing instead of sliding bearing, which can save more than 30% electricity.

2. The barrel of the ball mill adopts automatic welding, ultrasonic detection, a large professional machine tool card processing and other measures to ensure the accuracy and quality.

3. The discharging end of the ball mill is equipped with a forced ore discharging device, and the processing capacity is increased by 40%.

4. The mill adopts the rare earth material and the new structure lining plate, adjusts the mill speed, optimizes the gear design, thus increases the mill running stability and the service life.


Technical Parameter

Model

Barrel size

effective volume of cylinder

Load material

Rotary speed

R/min

Power

kw

Discharge ore

Capacity

t/h

Weight

t

GMQG1530

1500X3000

4.0

8

27.6

75

0.8-0.074

2.8-12

15.5

GMQG1535

1500X3500

4.6

11

27.6

75-90

0.8-0.074

3.4-14

16.3

GMQG1830

1800X3000

6.5

13

25.3

132

0.8-0.074

4.8-21

28.2

GMQG1835

1800X3500

7.58

16

25.3

160

0.8-0.074

5.8-25

30.8

GMQG1840

1800X4000

8.65

17.3

25.3

185

0.8-0.074

6.6-28

33.4

GMQG1845

1800X4500

9.75

19.5

25.3

210

0.8-0.074

7.2-31

36.2

GMQG2122

2100X2200

6.7

14.7

23.8

160

0.8-0.074

5.3-24

43.2

GMQG2130

2100X3000

9.2

17

23.8

185

0.8-0.074

6.0-26

46.8

GMQG2136

2100X3600

11.0

19

23.8

210

0.8-0.074

6.5-29

49.1

GMQG2140

2100X4000

12.2

20.5

23.8

220

0.8-0.074

7.2-32

50.2

GMQG2145

2100X4500

13.8

22

23.8

250

0.8-0.074

8.1-36

51.8

GMQG2424

2400X2400

9.8

20

22.8

220

0.8-0.074

6.6-32

54.8

GMQG2430

2400X3000

12.2

25

22.8

250

0.8-0.074

7.5-38

57.8

GMQG2436

2400X3600

14.6

30

22.8

280

0.8-0.074

8.5-42

60.8

GMQG2440

2400X4000

16.2

33

22.8

355

0.8-0.074

9.5-47

63.8

GMQG2445

2400X4500

18.2

37

22.8

400

0.8-0.074

10.5-55

66.3

GMQG2721

2700X2100

10.7

24

21.7

280

0.8-0.074

8.5-84

66.4

GMQG2727

2700X2700

13.8

29

21.7

315

3.0-0.074

9.0-105

71.7

GMQG2730

2700X3000

15.3

32.5

21.7

355

3.0-0.074

10-120

77.3

GMQG2736

2700X3600

18.4

39

21.7

400

3.0-0.074

12-145

82.4

GMQG2740

2700X4000

20.5

43

21.7

450

3.0-0.074

13-159

84.73

GMQG2745

2700X4500

23.0

50

21.7

500

3.0-0.074

15-180

89.1

GMQG3231

3200X3100

22.65

46.9

18.6

500

3.0-0.074

16-182

139

GMQG3236

3200X3600

26.20

52

18.6

560

3.0-0.074

19-190

143

GMQG3240

3200X4000

29.2

57

18.6

630

3.0-0.074

22-210

147

GMQG3245

3200X4500

32.8

65

18.6

710-

800

3.0-0.074

29-235

151

GMQG3254

3200X5400

39.2

81.6

18.6

800-

1000

3.0-0.074

35-280

161

GMQG3640

3600X4000

35.6

75

17.3

800

3.0-0.074

25-230

185

GMQG3645

3600X4500

40.8

88

17.3

1000

3.0-0.074

29-259

190

GMQG3650

3600X5000

45.3

96

17.3

1120

3.0-0.074

35-288

200


Product Tags: Ore Dressing Ball Mill , ball mill factory , ball mill price , mechanical ball mill , ceramic ball mill for sale , wet ball mill
