US$ 50 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHY
Place of Origin:
China
Model Number:
FC4460192 FC4462192 FC4462225 FC4464210 FC4466230 FC4666170 FC4666206 FC4668260 FC4673250 FC4866220 FC4868192 FCD4870220 FC4872220 FC5068170 FC5070220 FC5072220
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang Hai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHY
Place of Origin China
Model Number FC4460192 FC4462192 FC4462225 FC4464210 FC4466230 FC4666170 FC4666206 FC4668260 FC4673250 FC4866220 FC4868192 FCD4870220 FC4872220 FC5068170 FC5070220 FC5072220
Number of Row Other, Four Row
Seals Type Open
Precision Rating P0 P6 P5
Outside Diameter 320, 340
Bore Size 220, 240

modelsealdDBFw
FC4460192
220300192242
FC4462192
220310192246
FC4462225
220310225245
FC4464210
220320210248
FC4466230
220330230249
FC4666170
230330170260
FC4666206
230330206260
FC4668260
230340260261
FC4673250
230365250266
FC4866220
240330220264
FC4868192
240340192266
FCD4870220
240350220270
FC4872220
240360220272
FC5068170FCD250340170274
FC5070220FCD250350220278
FC5072220
250360220282

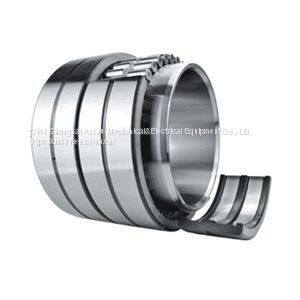

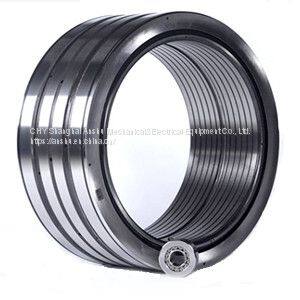

Four row cylindrical roller bearing

Four-row cylindrical roller bearings are mainly used in rolling mill machinery such as cold and hot rolling mills and blanking machines. The bearings are separated structures, and the bearing rings and rolling element assemblies can be easily separated. Therefore, the bearings are cleaned, inspected or It is very convenient to install and disassemble.

FC type

The FC type bearing is composed of two outer rings and one inner ring, and each of the outer rings has a middle rib in the middle of the rib and a rib in the inner ring.

FCD type

The FCD type bearing is actually a combination of two NN type bearings.

FC and FCD bearings allow for axial displacement in the axial direction relative to the housing. Therefore, such a structure is suitable as a swim end bearing. Car cages are often used for cages of this type.

Address: No. 24, Lane 397, Huhang Road, Fengxian District, Shanghai, China

Email：bearing@anshu-electromech.com          Mobile phone:(0086)013918253057

Tel：（0086）021-60140720                     wechate:ch13918253057

Fax：（0086）021-35090027                     QQ：810480122

WhatsApp:+8613918253057                     Skype:chpfchpf



Product Tags: bearings , Rolling mill bearings , Four-column cylinder
