Home > Industrial Equipment & Components > Bearing > Plain Bearing > SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300

SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300

SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 thumbnail-1
SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 thumbnail-2
SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 thumbnail-3
SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 photo-1
SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 photo-2
SF-2 Standard Series 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300 photo-3
US$ 0.5 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CHY
Place of Origin:
China
Model Number:
120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHY
Place of Origin China
Model Number 120 125 130 140 150 160 170 180 190 200 220 240 250 260 280 300
Precision Rating P0 P5

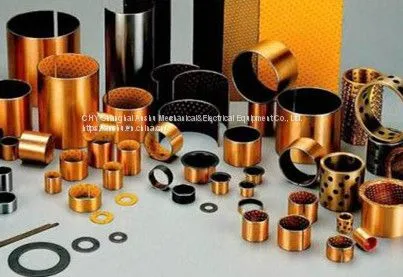

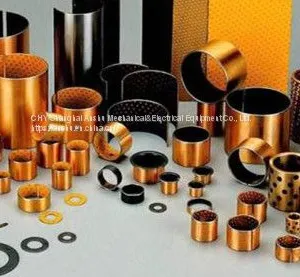

Self-lubricating bearings are divided into composite self-lubricating bearings, solid inlaid self-lubricating bearings, bimetallic self-lubricating bearings, special materials self-lubricating bearings, and different self-lubricating bearings are used according to different purposes and working conditions.

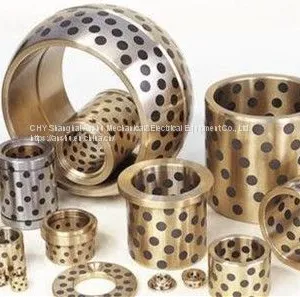

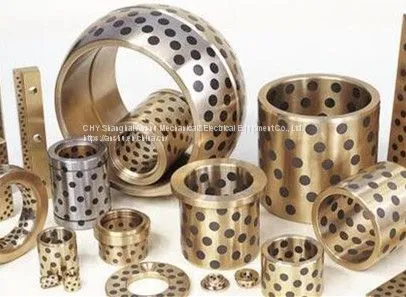

One of the large-scale solid inlaid self-lubricating bearings (JDB for short) is a novel lubricated bearing that combines the characteristics of metal bearings with the characteristics of oil-free lubricating bearings. It is loaded by a metal substrate, and the specially formulated solid lubricating material acts as a lubricant.

It has the characteristics of high bearing capacity, impact resistance, high temperature resistance and strong self-lubricating ability. It is especially suitable for heavy load, low speed, reciprocating or swinging, etc., which is difficult to lubricate and form oil film. It is also not afraid of water and other acid etching. And scouring. Products have been widely used in metallurgical continuous casting machines, rolling equipment, mining machinery, molds, lifting machinery, textile machinery, wind power generation, ships, steam turbines, hydraulic turbines, injection molding machines and equipment production lines. Wear resistance is double that of ordinary bushings

Address: No. 24, Lane 397, Huhang Road, Fengxian District, Shanghai, China

Email：bearing@anshu-electromech.com          Mobile phone:(0086)013918253057

Tel：（0086）021-60140720                     wechate:ch13918253057

Fax：（0086）021-35090027                     QQ：810480122

WhatsApp:+8613918253057                     Skype:chpfchpf

SF-2 standard series
d D Wall min. thickness max. Oil hole φ L
50 60 80 100 120
120 125 2.385 2.45 9.5
12060 12080 120110
125 130 2.385 2.45 9.5
12560
125100
130 135 2.385 2.45 9.5 13050 13060 13080 130110
140 145 2.385 2.45 9.5 14050 14060 14080 140110
150 155 2.385 2.45 9.5 15050 15060 15080 150110
160 165 2.385 2.45 11 16050 16060 16080 160110
170 175 2.385 2.45 11 17050
17080 170110
180 185 2.385 2.45 11 18050 18060 18080 180110
190 195 2.385 2.45 11 19050 19060 19080 190110 190120
200 205 2.385 2.45 11 20050 20060 20080 200110 200120
220 225 2.385 2.45 12 22050 22060 22080 220110 220120
240 245 2.385 2.45 12 24050 24060 24080 240110 240120
250 255 2.385 2.45 12 25050 25060 25080 250110 250120
260 265 2.385 2.45 12 26050 26060 26080 260110 260120
280 285 2.385 2.45 12 28050 28060 28080 280110 280120
300 305 2.385 2.45 12 30050 30060 30080 300110 300120


Product Tags: Sliding Bearings , Bearings , Self-lubricating bearing
