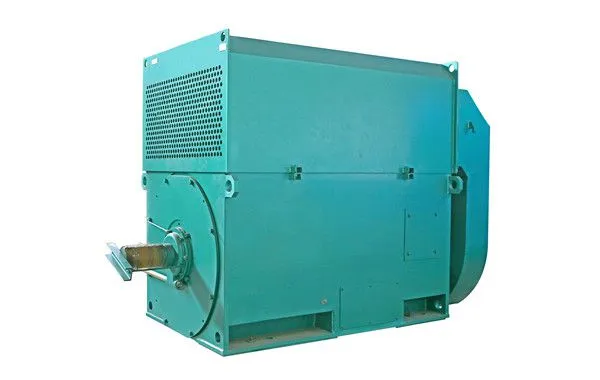

Top Grade High Voltage Simo 3000rpm 220kw Electric Motor for Crusher
US$ 2000 - 2001
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIMO
Place of Origin:
China
Model Number:
YKKS3552-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
70 days
Related Products
-
6kv Three Phase Variable Frequency MotorsUS$ 2000 - 2001MOQ: 1 Piece -
Yrks 10kv 560kw 1500rpm High Voltage Three Phase Simo MotorUS$ 2000 - 2001MOQ: 1 Piece
-
Reliable Simo High Voltage Slip Ring MotorUS$ 2000 - 2001MOQ: 1 Piece
-
High Quality 440V 5.5kw Brush DC MotorUS$ 1000 - 1020MOQ: 1 Piece
-
Reliable Simo High Voltage Slip Ring MotorUS$ 2000 - 2001MOQ: 1 Piece
Brand Name
SIMO
Place of Origin
China
Model Number
YKKS3552-4
Type
Induction Motor
Output Power
200KW
Frequency
50Hz
Efficiency
IE 2
AC Voltage
Other, 6kv
Certification
Other, CCC, CE, ROHS, UL, VDE, GOST
Phase
Three-phase
Protect Feature
Totally Enclosed
|
Top Grade High Voltage Simo 3000rpm 220kw Electric Motor for Crusher
| |||||||||||
| Type |
Rated power kW |
Rated current A |
speed r/min | Efficiency % |
Power factor cos Φ |
Max. torque Rated torque |
Locked torque rated torque |
Locked rated current Rated current |
J(Motor) kg | J(Load) kg | Mass kg |
| YKK | 200 | 24.4 | 1485 | 92.9 | 0.85 | 1.8 | 0.6 | 7 | 3.6 | 87 | 1950 |
Mounting dimension(mm)
| Frame size | Pole | Mounting Dimension(mm) | Outer Dimension(mm) | |||||||||||||||
| YKK355 | 4 | A | B | C | D | E | F | G | H | K | AA | AB | BA | BB | AC | AD | HD | L |
| 630 | 900 | 315 | 100 | 210 | 28 | 90 | 355 | 28 | 250 | 800 | 415 | 1340 | 510 | 700 | 1220 | 1845 | ||
YKK series 3 phase motors, protection class IP54, cooling method for the IC611. Can be used for a variety of different machinery, such as fans, compressors, pumps, crushers, cutting machine tools and other equipment, and for coal, machinery industry, power plants and various industrial and mining enterprises for the original motivation.
