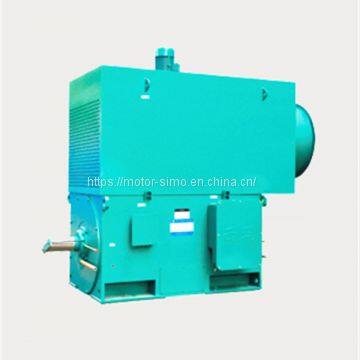

6kv Three Phase Variable Frequency Motors
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 70 days
You May Like
Product Details
| Brand Name | SIMO | Place of Origin | China | |
| Model Number | YJTKK3552-4 | Type | Induction Motor | |
| Output Power | 200KW | Frequency | 50Hz | |
| Efficiency | IE 2 | AC Voltage | Other, 6kv | |
| Certification | Other, CCC, CE, ROHS, UL, VDE, GOST | Phase | Three-phase | |
| Protect Feature | Totally Enclosed |
Product Description
6kv Three Phase Variable Frequency Motors
| |||||||||||
| Type | Rated power kW | Rated current A | speed r/min | Efficiency % | Power factor cos Φ | Max. torque Rated torque | Locked torque rated torque | Locked rated current Rated current | J(Motor) kg | J(Load) kg | Mass kg |
| YJTKK | 200 | 24.4 | 1485 | 92.9 | 0.85 | 1.8 | 0.6 | 7 | 3.6 | 87 | 1950 |
Mounting dimension(mm)
| Frame size | Pole | Mounting Dimension(mm) | Outer Dimension(mm) | |||||||||||||||
| YJTKK355 | 4 | A | B | C | D | E | F | G | H | K | AA | AB | BA | BB | AC | AD | HD | L |
| 630 | 900 | 315 | 100 | 210 | 28 | 90 | 355 | 28 | 250 | 800 | 415 | 1340 | 510 | 700 | 1220 | 1845 | ||
YJTKK series 3 phase motors, protection class IP54, cooling method for the IC616. Can be used for a variety of different machinery, such as fans, compressors, pumps, crushers, cutting machine tools and other equipment, and for coal, machinery industry, power plants and various industrial and mining enterprises for the original motivation.
