Home > Electrical & Electronics > Electric Motor > AC Motor > Reliable Simo High Voltage Slip Ring Motor

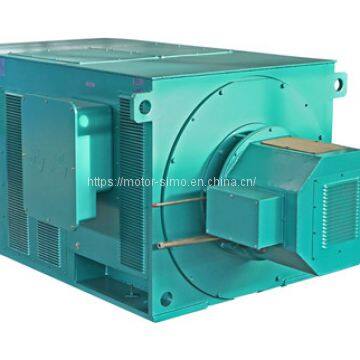

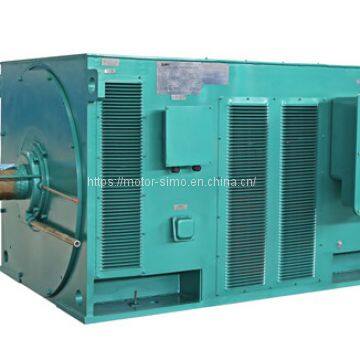

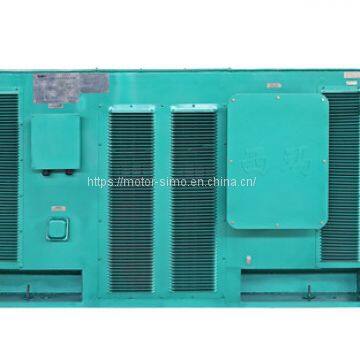

Reliable Simo High Voltage Slip Ring Motor
US$ 2000 - 2001
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIMO
Place of Origin:
China
Model Number:
YR3552-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
70 days
Related Products
-
Reliable Simo High Voltage Slip Ring MotorUS$ 2000 - 2001MOQ: 1 Piece -
Reliable Simo High Voltage Slip Ring MotorUS$ 2000 - 2001MOQ: 1 Piece
-
J164 Copper Carbon Brush ManufacturerUS$ 20 - 500MOQ: 1 Piece
-
Z2 High Torque Simo DC MotorUS$ 1000 - 10000MOQ: 1 Piece
-
Yrks 10kv 560kw 1500rpm High Voltage Three Phase Simo MotorUS$ 2000 - 2001MOQ: 1 Piece
Brand Name
SIMO
Place of Origin
China
Model Number
YR3552-4
Type
Induction Motor
Output Power
200KW
Frequency
50Hz
Efficiency
IE 2
AC Voltage
Other, 6kv
Certification
Other, CCC, CE, ROHS, UL, VDE, GOST
Phase
Three-phase
Protect Feature
Totally Enclosed
|

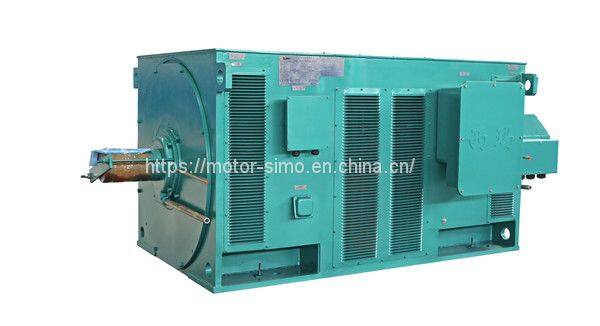

Reliable Simo High Voltage Slip Ring Motor
| |||||||||||
| Type |
Rated power kW |
Rated current A |
speed r/min | Efficiency % |
Power factor cos Φ |
Max. torque Rated torque |
Locked torque rated torque |
Locked rated current Rated current |
J(Motor) kg | J(Load) kg | Mass kg |
| YR | 200 | 24.4 | 1485 | 92.9 | 0.85 | 1.8 | 0.6 | 7 | 3.6 | 87 | 1950 |
Mounting dimension(mm)
| Frame size | Pole | Mounting Dimension(mm) | Outer Dimension(mm) | |||||||||||||||
| YR | 4 | A | B | C | D | E | F | G | H | K | AA | AB | BA | BB | AC | AD | HD | L |
| 630 | 900 | 315 | 100 | 210 | 28 | 90 | 355 | 28 | 250 | 800 | 415 | 1340 | 510 | 700 | 1220 | 1845 | ||
YR series 3 phase motors, protection class IP23, cooling method for the IC411. Can be used for a variety of different machinery, such as fans, compressors, pumps, crushers, cutting machine tools and other equipment, and for coal, machinery industry, power plants and various industrial and mining enterprises for the original motivation.
