Help CenterPDB-H Series 500-1000w Power Supply DC/DC Converter Input 400-800vdc Output 24vdc
Related Products
-
PDE-A Series 150-400w Power Supply DC/DC Converter Input 12/18/24/110/600vdc to 12/24/48vdc OutputUS$ 140 - 145MOQ: 50 Pieces -
PDE-B Series 400-500W Power Supply DC/DC Converter Input 24/48/110/600vdc to 24/48/110vdc OutputUS$ 220 - 230MOQ: 50 Pieces
-
PDE-C Series 500-600w Power Supply DC/DC Converter Input 24/48/110vdc to 24vdc OutputUS$ 190 - 200MOQ: 50 Pieces
-
PDE-D Series 600-1000W Power Supply DC/DC Converter Input 24/48/110vdc to 24vdc OutputUS$ 290 - 300MOQ: 50 Pieces
-
PDE-F Series 1000-1500W Power Supply DC/DC Converter Input 24/48/110vdc to 24/48/110vdc OutputUS$ 380 - 400MOQ: 10 Pieces

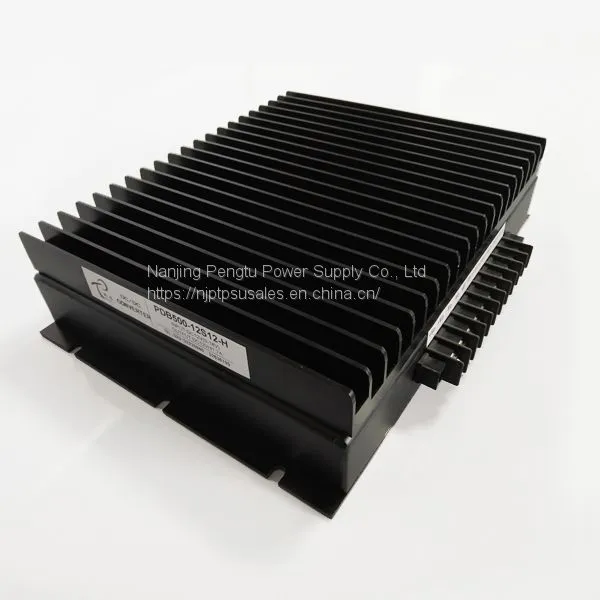

PDB-H Series 500-1000W DC DC Converter 12V 24V 110V.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation, single side pin out
●Best case attaching mode
●Design for high reliability, long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～80A for option
●Output Voltage ………………………………5～110V
●Power ……………………………………………500-1000w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

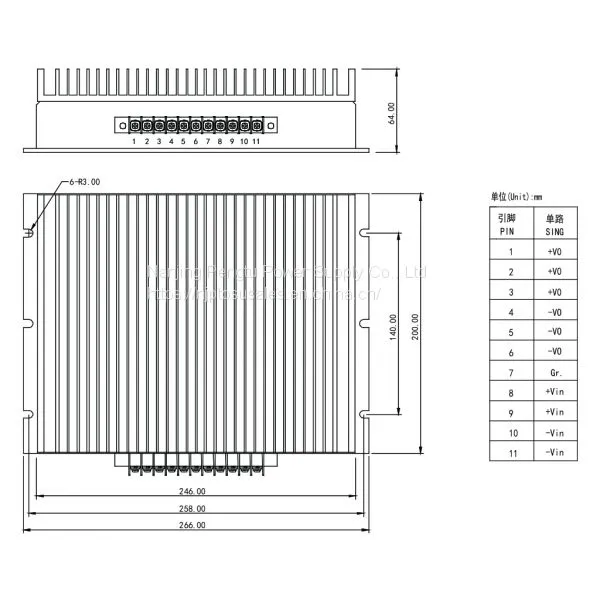

※Dimensions:266.00*200.00*64.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
12 |
9-18 |
12 |
41.6 |
150 |
85% |
PDB500-12S12-H |
24 |
18-36 |
12 |
66.6 |
150 |
86% |
PDB800-24S12-H |
|
24 |
18-36 |
24 |
41.6 |
200 |
88% |
PDB1000-24S24-H |
|
48 |
36-72 |
24 |
41.6 |
200 |
89% |
PDB1000-48S24-H |
|
110 |
66-154 |
110 |
7.27 |
600 |
89% |
PDB800-110S110-H |
|
110 |
66-154 |
48 |
20.8 |
300 |
89% |
PDB1000-110S48-H |
|
600 |
400-800 |
24 |
41.6 |
200 |
89% |
PDB1000-600S24-H |
|
DUAL |
48 |
36-72 |
12&24 |
30&20 |
150&200 |
88% |
PDB840-48D12&24-H |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
