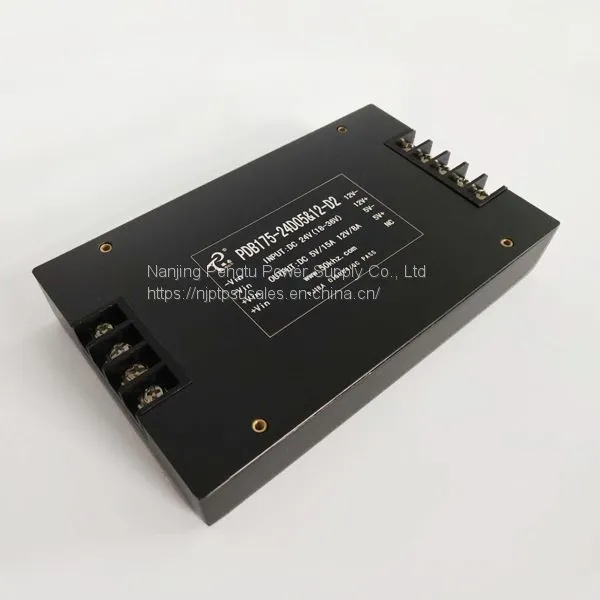

PDB-D2 Series 100-300W dc/dc converter 12v 24v 48v.Product details are as follows:
※Features
●Π type input filter
●2X, 4X voltage input
●Output short circuit protection
●Easy installation
●Best case attaching mode
●Design for high reliability, long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
18VDC (Normal Rated Value):9～36VDC(Quadruple input)
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………3～30A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………100-300w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

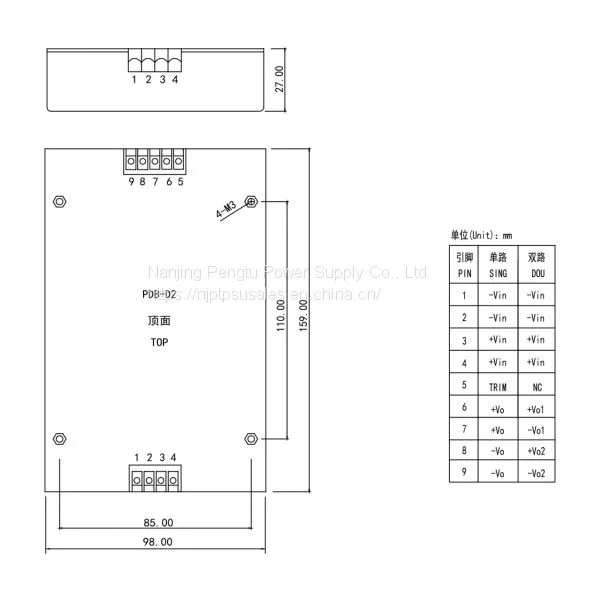

※Dimensions:159.00*98.00*27.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
24 |
18-36 |
12 |
20 |
120 |
88% |
PDB240-24S12-D2 |
24 |
18-36 |
24 |
12.5 |
200 |
89% |
PDB300-24S24-D2 |
|
48 |
36-72 |
12 |
20.8 |
120 |
88% |
PDB250-48S12-D2 |
|
48 |
36-72 |
24 |
12.5 |
200 |
89% |
PDB300-48S24-D2 |
|
110 |
66-154 |
12 |
20 |
120 |
88% |
PDB240-110S12-D2 |
|
110 |
66-154 |
24 |
12.5 |
200 |
89% |
PDB300-110S24-D2 |
|
110 |
66-154 |
48 |
6.25 |
300 |
89% |
PDB300-110S48-D2 |
|
DUAL |
24 |
18-36 |
05&24 |
15&4.16 |
100&200 |
84% |
PDB175-24D05&24-D2 |
24 |
18-36 |
24&24 |
6.25&4 |
120&200 |
84% |
PDB175-24D12&24-D2 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
