PDE-A Series 150-400W Isolated 24V DC DC Converter.Product details are as follows:
※Features
●Π type input filter
●High output current and power
●Design for high reliability, long lifetime
●Wide range of power, easy to upgrade
●Easy installation
●Full load efficiency up to 90%
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
18VDC (Normal Rated Value): 9～36 VDC
24VDC (Normal Rated Value): 18～36 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～30A for option
●Output Voltage ………………………………5～40V
●Power ……………………………………………150-400w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃

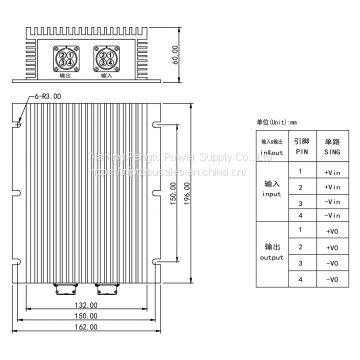

※Dimensions:196.00*162.00*60.00mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
|
SING |
12 |
9-18 |
12 |
16.67 |
120 |
84% |
PDE200-12S12-A |
12 |
9-18 |
24 |
12.5 |
200 |
84% |
PDE300-12S24-A |
|
18 |
9-36 |
24 |
6.25 |
200 |
84% |
PDE150-18S24-A |
|
24 |
18-36 |
12 |
33.3 |
120 |
88% |
PDE400-24S12-A |
|
24 |
18-36 |
24 |
16.67 |
200 |
89% |
PDE400-24S24-A |
|
110 |
66-154 |
12 |
33.3 |
120 |
88% |
PDE400-110S12-A |
|
110 |
66-154 |
24 |
16.67 |
200 |
89% |
PDE400-110S24-A |
|
110 |
66-154 |
48 |
8.3 |
300 |
90% |
PDE400-110S48-A |
|
600 |
400-800 |
24 |
12.5 |
200 |
90% |
PDE300-600S24-A |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
