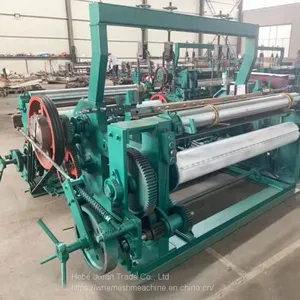

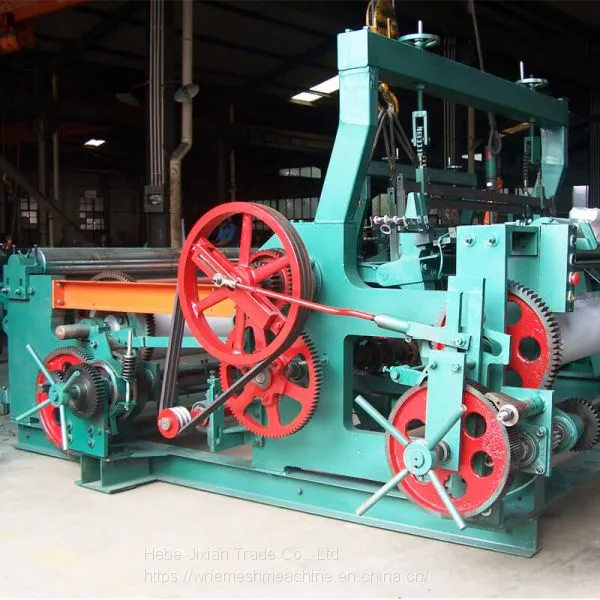

Harness threading metal wire net weaving machine ZWJ-2100HD
- 100 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Other
- 15 days
Product Details
Brand Name: | Jixian | Place of Origin: | China | Model Number: | ZWJ-2100HD |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Product Details:
Model Number: | ZWJ--2100HD | Power(W): | 2.2KW |
Dimension(L*W*H): | 3.1m*3.9m*1.8m | Wire Diameter: | 0.10-0.45mm |
Mesh Width: | 2100mm | Mesh Size: | 20-130mesh/inch |
Beating-up Frequency: | 70r/min | Warranty: | 1 Years |
Color: | Requirement | Condition: | New |
Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
Packaging Details: | Wooden Case | Port: | Xingang Tianjin |
After-sales Service Provided: | Engineers Available To Service Overseas |
Description:
ZWJ-2100HD Harness threading metal wire net weaving machine is a deformed product of ZWJ-2100D type metal wire net weaving machine. It is a new type of machine which has been greatly modified according to the needs of customers. The rigidity and strength of the machine are greatly improved. The feeding mechanism of the coiling net adopts the pawl mechanism, the diameter of the ratchet wheel is large, and the use is more reliable. It is suitable for 0.10-0.45mm diameter, 20-130 mesh smooth standard wire mesh weaving. It is the ideal wire mesh weaving machine for the majority of users. The main differences between ZWJ-2100HD and ZWJ-2100D mesh weaving machine are as follows: 1. The body is longer, the base channel steel is larger, the rigidity is increased, and the stability is good. 2. Gear Drive. 3. The web winding mechanism is driven by the crankshaft to adjust the offset plate, and is ratcheted by the pull rod and pawl. More reliable performance.
The Application of the steel wire mesh machine
SS Wire mesh weaving
Protective wire mesh weaving
Window Screen Wire Mesh
Filter wire mesh weaving
Microgroove Wire Mesh
Cobber Wire Mesh
the products are widely used in various industries including petroleum, chemical industry, machinery and aviation,etc
Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:
TYPE | ZWJ-1300HD | ZWJ-1600HD | ZWJ-2100HD |
MESH SIZE | 20-130mesh/inch | 20-130mesh/inch | 20-130mesh/inch |
WIRE DIAMETER | 0.10-0.45mm | 0.10-0.45mm | 0.10-0.45mm |
BEATING-UP FREQUENCY | 70 r/min | 70 r/min | 70 r/min |
MESH WIDTH | 1300mm | 1600mm | 2100mm |
MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
OVERALL SIZE | 3.1m*3.1m*1.8m | 3.1m*3.4m*1.8m | 3.1m*3.9m*1.8m |
Main features:
1 | Final products have a wide usage:for filter screen, decoration curtain wall, mine vibrating screen. |
2 | It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove. |
3 | The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects. |
4 | It works automatic stopping and displaying functions at any warp broken or weft broken. |
5 | The whole machine works stably in a low center of gravity and a low level of noise. |
6 | Easy to learn and operate |
Our Services:
Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
Packaging & Shipping:
The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, 30% in advance, and the balance before delivery. also accept LC.
Packing: waterproof material,control box: wooden case
