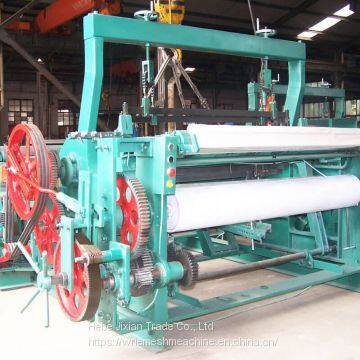

0.10-0.35mm Low Noise Harness threading metal wire net weaving machine ZWJ-1600HD
- 100 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Other
- 15 days
Product Details
Brand Name: | Jixian | Place of Origin: | China | Model Number: | ZWJ-1600HD |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Product Details:
Model Number: | ZWJ--1600HD | Power(W): | 2.2KW |
Dimension(L*W*H): | 3.1m*3.4m*1.8m | Wire Diameter: | 0.10-0.45mm |
Mesh Width: | 1600mm | Mesh Size: | 20-130mesh/inch |
Beating-up Frequency: | 70r/min | Warranty: | 1 Years |
Color: | Requirement | Condition: | New |
Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
Packaging Details: | Wooden Case | Port: | Xingang Tianjin |
After-sales Service Provided: | Engineers Available To Service Overseas |
Description:
ZWJ-1600HD Harness threading metal wire net weaving machine is a deformed product of ZWJ-1600D type metal wire net weaving machine. It is a new type of machine which has been greatly modified according to the needs of customers. The rigidity and strength of the machine are greatly improved. The feeding mechanism of the coiling net adopts the pawl mechanism, the diameter of the ratchet wheel is large, and the use is more reliable. It is suitable for 0.10-0.45mm diameter, 20-130 mesh smooth standard wire mesh weaving. It is the ideal wire mesh weaving machine for the majority of users. The main differences between ZWJ-1600HD and ZWJ-1600D mesh weaving machine are as follows: 1. The body is longer, the base channel steel is larger, the rigidity is increased, and the stability is good. 2. Gear Drive. 3. The web winding mechanism is driven by the crankshaft to adjust the offset plate, and is ratcheted by the pull rod and pawl. More reliable performance.
Characteristics:
1. It is highly adaptive to metal wires.
2. It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3. The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4. It works automatic stopping and displaying functions at any warp broken or weft broken.
5. The whole machine works stably in a low center of gravity and a low level of noise.
The Application of the Wire Mesh Weaving Machine
1.Stainless Steel Wire mesh
2.Plain weave wire mesh
3.Dutch wire mesh
4.Microgroove net
5.Bead weaving wire mesh
6.Stainless steel wire mesh
7.Mosquito-protection wire mesh
8.Filter wire mesh
Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:
TYPE | ZWJ-1300HD | ZWJ-1600HD | ZWJ-2100HD |
MESH SIZE | 20-130mesh/inch | 20-130mesh/inch | 20-130mesh/inch |
WIRE DIAMETER | 0.10-0.45mm | 0.10-0.45mm | 0.10-0.45mm |
BEATING-UP FREQUENCY | 70 r/min | 70 r/min | 70 r/min |
MESH WIDTH | 1300mm | 1600mm | 2100mm |
MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
OVERALL SIZE | 3.1m*3.1m*1.8m | 3.1m*3.4m*1.8m | 3.1m*3.9m*1.8m |
Main machine technical parameters of 1600 Series Wire Mesh Weaving Machine Manufacturer
Item | Weaving Width (mm) | Wire Diameter (mm) | Mesh Size (mm) | Power (v) | Weaving Speed (T/Min | Weave Type | Weight (KG) |
1600B | 1600 | 0.025-0.2 | 40-400 | 380V 2.2KW | 60-90 | Plain and Twill | 2900 |
1600D | 1600 | 0.1-0.35 | 20-140 | 380V 2.2KW | 60-90 | Plain and Twill | 2900 |
Our Services:
Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
Packaging & Shipping:
The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T,LC,WU,MG,
Packing: waterproof material,control box: wooden case
