Plain Twill Woven Light-duty Wire Mesh Weaving Machine ZWJ-1300B1
- 100 Set / Sets per Month
- Tianjin
- T/T L/C Other
- 1 days
Product Details
Brand Name: | jixian | Place of Origin: | China | Model Number: | ZWJ-1300B1 |
Condition: | New |
Product Description

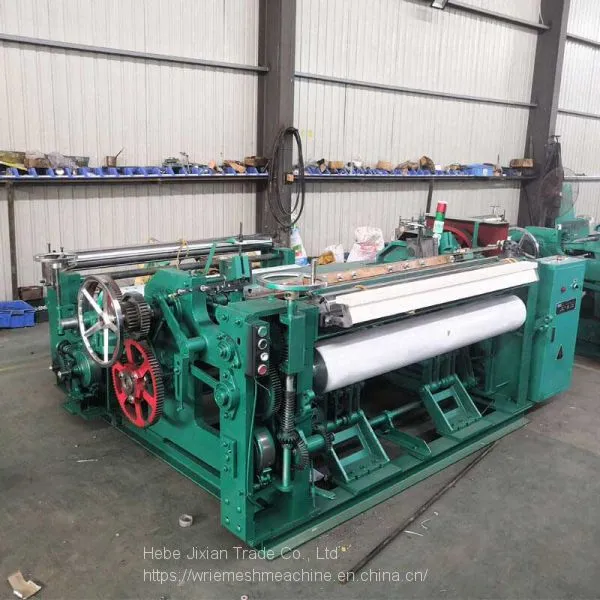

Plain Twill Woven Light-duty Wire Mesh Weaving Machine ZWJ-1300B1
plain weave Wire Mesh Weaving Machine
Product Details:
Model Number: | ZWJ--1300B1 | Power(W): | 2.2KW |
Dimension(L*W*H): | 2.6m*2.8m*1.4m | Weight: | 2700KG |
Wire Diameter: | 0.025--0.2 mm | Mesh Width: | 1300mm |
Mesh Size: | 40-400mehs/inch | Beating-up Frequency: | 70-120 r/min |
Warranty: | 1 Years | Color: | Green or Requirement |
Certification: | ISO9001 | Condition: | New |
Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
Packaging Details: | wooden case | Port: | Xingang Tianjin |
After-sales Service Provided: | Engineers Available To Service Overseas |
Description:Zwj1300B1 is a modification of 1300B, which is mainly related to lubrication and acceleration. The improvement of lubrication is based on the serious situation that the user's on-site lubrication and refueling work is serious, the on-site oil pollution is serious, and the national environmental protection form is unprecedentedly serious. In order to improve the above situation, the improvement is mainly to reduce the lubrication point, and the bearing is mainly a non-lubricating mechanism,acceleration is to increase the efficiency of the machine model to 70 times per minute. In the case that the machine model structure remains unchanged, by replacing some components, the speed of 120 times per minute can be achieved, thereby greatly improving production efficiency and reducing labor costs.
Main features:1.It is highly adaptive to metal wires.2.It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.3.The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.4.It works automatic stopping and displaying functions at any warp broken or weft broken.5.The whole machine works stably in a low center of gravity and a low level of noise.
Main machine technical parameters of The Light-duty Wire Mesh Weaving Machine:
TYPE | ZWJ-1300B1 | ZWJ-1600B1 | ZWJ-2100B1 |
MESH SIZE | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
WIRE DIAMETER | 0.025-0.200mm | 0.025-0.200mm | 0.025-0.200mm |
BEATING-UP FREQUENCY | 70-120 r/min | 70-120 r/min | 70-120 r/min |
MESH WIDTH | 1300mm | 1600mm | 2100mm |
MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
OVERALL SIZE | 2.6m*2.8m*1.4m | 2.6m*3.1m*1.4m | 2.6m*3.6m*1.4m |
Main machine technical parameters of 1300 Series Stainless Steel Wire Mesh Machine Manufacturer
Item | Weaving Width(mm) | Wire Diameter(mm) | MeshSize(mm) | Power(v) | WeavingSpeed (T/Min) | WeaveType |
1300B | 1300 | 0.025-0.200 | 40-400 | 380V2.2KW | 75-78 | Plain and Twill |
1300D | 1300 | 0.10-0.35 | 20-140 | 380V4KW | 75-80 | Plain and Twill |
1300HD | 1300 | 0.1-0.6 | 10-40 | 380V 2.2KW | 65-80 | Plain |
Our Services:
Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also. We supply bead pattern Wire Mesh Weaving Machine.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, LC,WU,MG.
Packing: waterproof material,control box: wooden case
