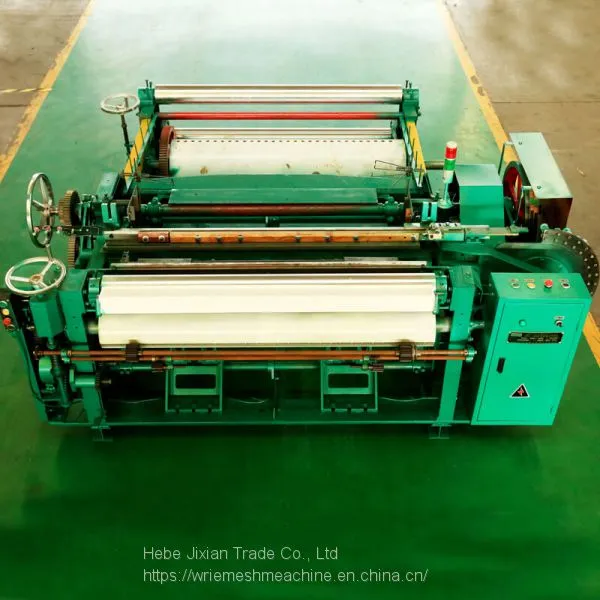

The Light-duty Wire Mesh Weaving Machine ZWJ-1300B
- 100 Set / Sets per Month
- Tianjin
- T/T L/C Other
- 1 days
Product Details
Brand Name: | jixian | Place of Origin: | China | Model Number: | ZWJ-1300B |
Condition: | New |
Product Description
The Light-duty Wire Mesh Weaving Machine ZWJ-1300B
Wire Mesh Machine Price
Product Details:
Model Number: | ZWJ--1300B | Power(W): | 2.2KW |
Dimension(L*W*H): | 2.6m*2.8m*1.4m | Weight: | 2700KG |
Wire Diameter: | 0.025--0.2 mm | Mesh Width: | 1300mm |
Mesh Size: | 40-400mehs/inch | Beating-up Frequency: | 70r/min |
Warranty: | 1 Years | Color: | Green or Requirement |
Certification: | ISO9001 | Condition: | New |
Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
Packaging Details: | wooden case | Port: | Xingang Tianjin |
After-sales Service Provided: | Engineers Available To Service Overseas |
Description:
The Plain Dutch Wire Mesh weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The shuttleless shaft is used for linear weft insertion and wire per-bending molding, and weft embossing and weaving are completed simultaneously. The operation is simple, the operation is stable, and the production efficiency is high. It is suitable for weaving mesh with small and medium wire mesh and irregular metal wire mesh. It can weave a crimping net with a width of 1.3m-2.6m, a weaving tightness of 20-140 mesh and a wire diameter of 0.1mm-0.35mm. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.
Main features:
It is highly adaptive to metal wires.
2.It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
3.The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4.It works automatic stopping and displaying functions at any warp broken or weft broken.
5.The whole machine works stably in a low center of gravity and a low level of noise.
Main machine technical parameters of The Light-duty Stainless Steel Wire Mesh Machine:
TYPE | ZWJ-1300B | ZWJ-1600B | ZWJ-2100B |
MESH SIZE | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
WIRE DIAMETER | 0.025-0.200mm | 0.025-0.200mm | 0.025-0.200mm |
BEATING-UP FREQUENCY | 70 r/min | 70 r/min | 70 r/min |
MESH WIDTH | 1300mm | 1600mm | 2100mm |
MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
OVERALL SIZE | 2.6m*2.8m*1.4m | 2.6m*3.1m*1.4m | 2.6m*3.6m*1.4m |
Main machine technical parameters of 1300 Series Wire Mesh Weaving Machine Manufacturer :
Item | Weaving Width(mm) | Wire Diameter(mm) | MeshSize(mm) | Power(v) | WeavingSpeed (T/Min) | WeaveType |
1300B | 1300 | 0.025-0.200 | 40-400 | 380V2.2KW | 75-78 | Plain and Twill |
1300D | 1300 | 0.10-0.35 | 20-140 | 380V4KW | 75-80 | Plain and Twill |
1300HD | 1300 | 0.1-0.6 | 10-40 | 380V 2.2KW | 65-80 | Plain |
Our Services:
Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
Packaging & Shipping:The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/T, LC,WU,MG.
Packing: waterproof material,control box: wooden case
We are Wire Mesh Machine Supplier.
