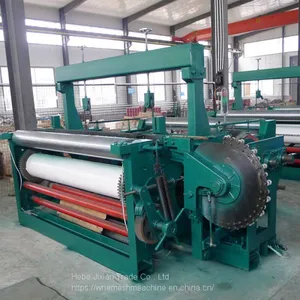

5.5KW Power heavy-duty metal wire net weaving machine JL2200D-3J/Z

5.5KW Power heavy-duty metal wire net weaving machine JL2200D-3J/Z

Product Details：

Description:

Diamond net (stainless steel mesh) weaving machine, which is manufactured by our company with international advanced technology, can replace similar imported products, adopt flexible rapier linear weft insertion, secondary weft clamping, mechanical intermittent automatic diameter feeding, active web winding, treading plate lifting healed, and automatic stop of warp and weft broken wire. The utility model has the advantages of large beating up force, strong bearing capacity, high precision, flat net surface, etc

Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of other machines.

3, The machine adopts technique of shuttle-less and straightway weft leading,automatic warp feeding and winding.Shedding are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high efficiency.

5, Rational design,simple construction,easy to operate and maintain.

Main machine technical parameters of The Medium-duty Wire Mesh Weaving Machine:

Summary:

The wire mesh machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The shuttle-less shaft is used for linear weft insertion and wire per-bending molding, and weft embossing and weaving are completed simultaneously. The operation is simple, the operation is stable, and the production efficiency is high. It is suitable for weaving mesh with small and medium wire mesh and irregular metal wire mesh. It can weave a crimping net with a width of 1.3m-2.6m, a weaving tightness of 20-140 mesh and a wire diameter of 0.1mm-0.35mm. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.

Our Services：

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.

Packaging & Shipping：

The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

FAQ:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.

Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment

Payment terms: T/T,LC，WU，MG

Packing: waterproof material,control box: wooden case
