Home > Products > CNC Shearing Machine > SJL Brand CNC Hydraulic Shearing Machine QC11K-6x4000

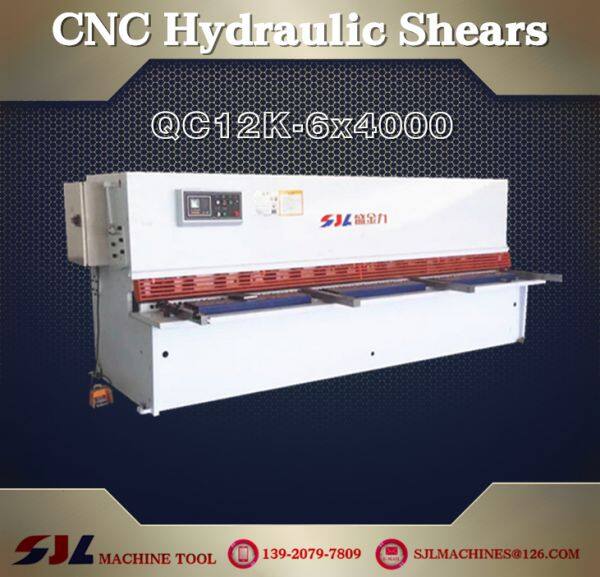

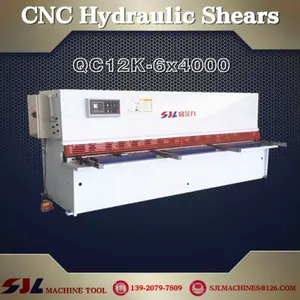

SJL Brand CNC Hydraulic Shearing Machine QC11K-6x4000
- Shanghai
- T/T Cash
- 7 days
Product Details
| Brand Name | SJL | Place of Origin | China | |
| Model Number | QC11K-6x4000 | Certification | CQC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One year warranty | |
| Weight | 6800Kg | Dimension(L*W*H) | 4660 × 1670 × 1830 mm | |
| Voltage | 220V | Rated Power | 7.5Kw | |
| Condition | New |
Product Description
Machine Tool Equipment Name: CNC Hydraulic Shearing Machine
Brand：SJL
Model：QC11K-6x4000
Product description:
1. Swing beam type top blade, hydraulic driven, stable and reliable, easy to operate.
2. Accurate and rapid adjustment of blade clearance; The stroke of the upper frame can be adjusted stepless to increase the shear speed.
3. The upper edge is a diamond edge and the lower edge is a rectangle.
Technical parameters:
Shear plate thickness ：6mm
Shear board width ：4000mm
Shear plate strength ：450N / mm
Shear angle ：1.5 °
Number of empty trips(times / minutes)： ≥ 12
Backward trip： 600 mm
Blade length： 4100 mm
Main motor power ：7.5 KW
Backward motor power ：0.55 KW
Weight ：6800 Kg
Shape size(length × width × height)： 4660 × 1670 × 1830 mm

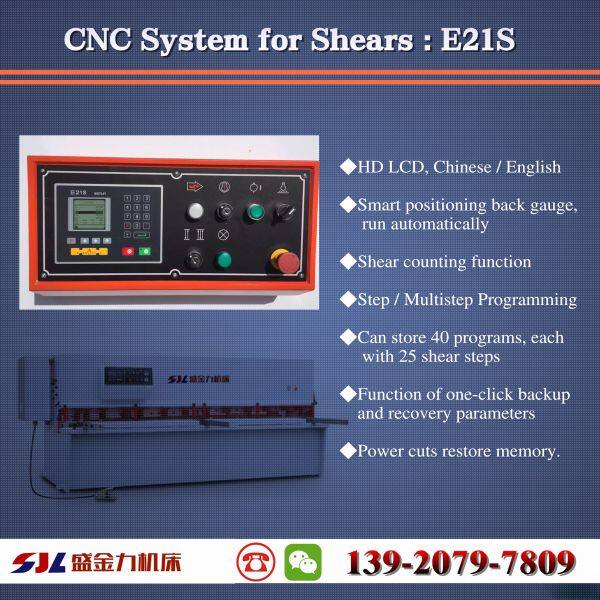

Introduction to CNC System：

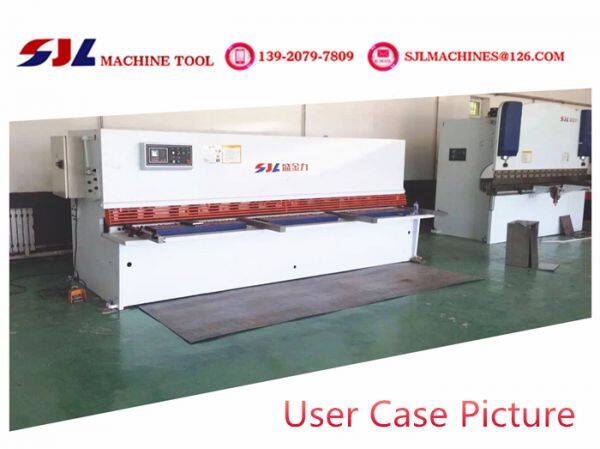

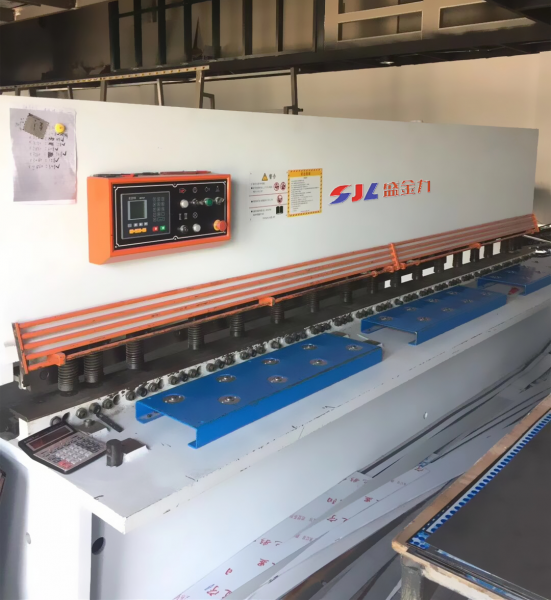

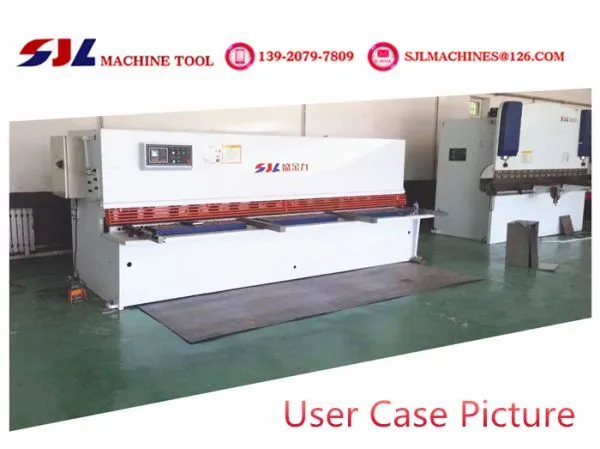

User Photographs
