1400 Type Shaft Furnace (SJL-1400)

Name: 1400 Type Shaft Furnace (SJL-1400)
Brand: SIOMM
SKU: 103397769
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

SIOMM

Model Number:

SJL-1400

Place of Origin:

Shanghai, China

Shanghai Jinwei Instrument Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SIOMM

Model Number SJL-1400

Place of Origin Shanghai, China

Specifications

1.Max. temperature: 1650 centigrade;
2.Big factory direct supply
3.Latest technique
4.1 year warranty
5.CE approved

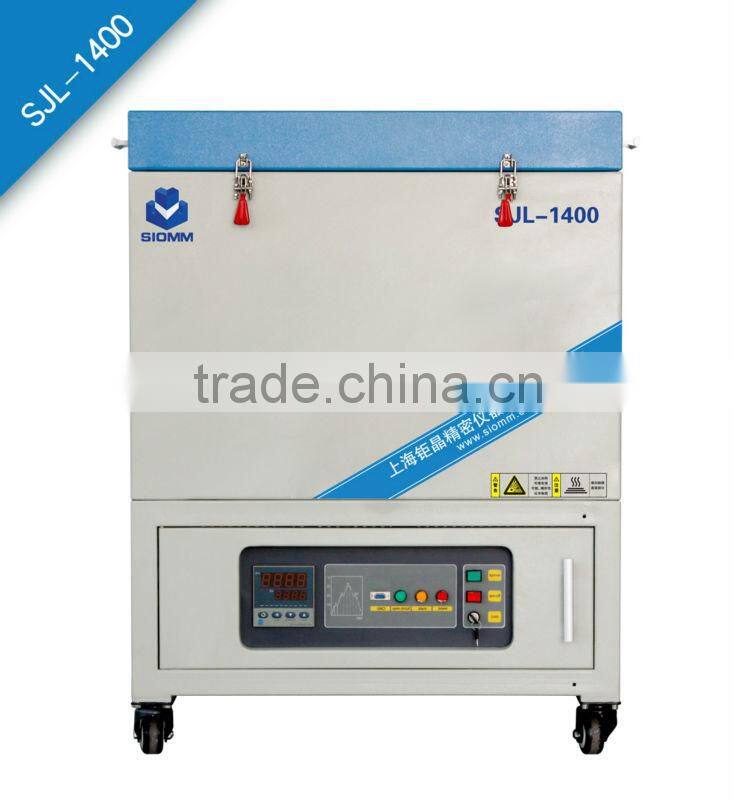

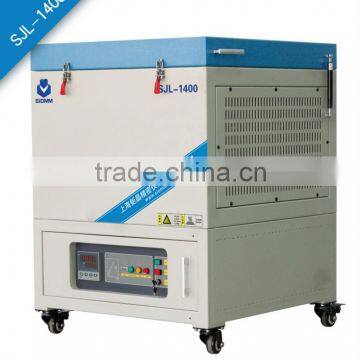

1400 type Shaft furnace (SJL-1400)

Products Introduce:

SJL- 1400 shaft furnace adopted the top open type door, with silicon carbide rod as heating

elements, and with double shell structure and intelligent temperature control system. Furnace

chamber adopted polycrystalline alumina fiber material, excellent heat preservation and energy

saving.

Main function and features:

1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and

durability properties; And adopted the imported silicon carbide rod as heating elements, greatly

improving the service life.

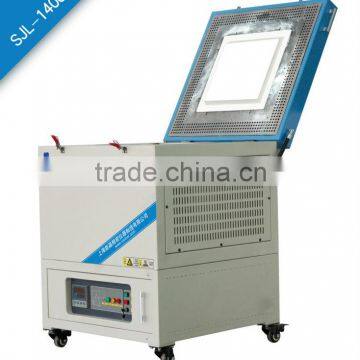

2. Adopted top open door structure, power cutoff automatically when open the door.

3. Reserved 485 converter interface, can remote control of single or multiple furnace through software and

Internet, realtime tracking , history recorder, output statements ; can install the paperless recording device

for data storage and output.

4. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.

Main applications:

Tempering, annealing and other heat treatment of metal materials and aluminum, light alloy

hardening, solid solution treatment, aging treatment and other experiments.

Technical parameters:

Model	SJL-1400
Furnace chamber size	300250200mm(Customizable)
Door structure	Top open type
Temperature control mode	Artificial intelligence technology, with PID control, self - tuning function , 50 the heating and cooling program
Heating elements	Imported Silicon carbide rod
Thermometric	S-mode thermocouple
Power supply	≤1300C
Max. temperature	1350C
Accuracy	±1C
Recommend heating rate	10c/min
Rated power	6KW
Power supply	AC220V 50HZ/60HZ
