Sheet Metal Shearing Machine Qc12y Shearing Machine QC12Y-8X3200 New Hydraulic Shearing Machines
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WC67Y 650/6000 Hydraulic Press Brake Machine Price for 16mm ThicknessNegotiableMOQ: 1 -
Metal Manual Shearing Machine QC12Y6 3200 for Metal CuttingNegotiableMOQ: 1
-
ESR1300*6.5 Electric Roll Bending Machine for Metal Sheet BendingNegotiableMOQ: 1
-
3 IN-1/1320 Shear Brake Roll Combined Machine With Factory Direct SaleNegotiableMOQ: 1
-
Plate Bending Press Rollers ESR1300*1.5 Electric Clip Roll Machine Press Brake for Metal WorkingNegotiableMOQ: 1

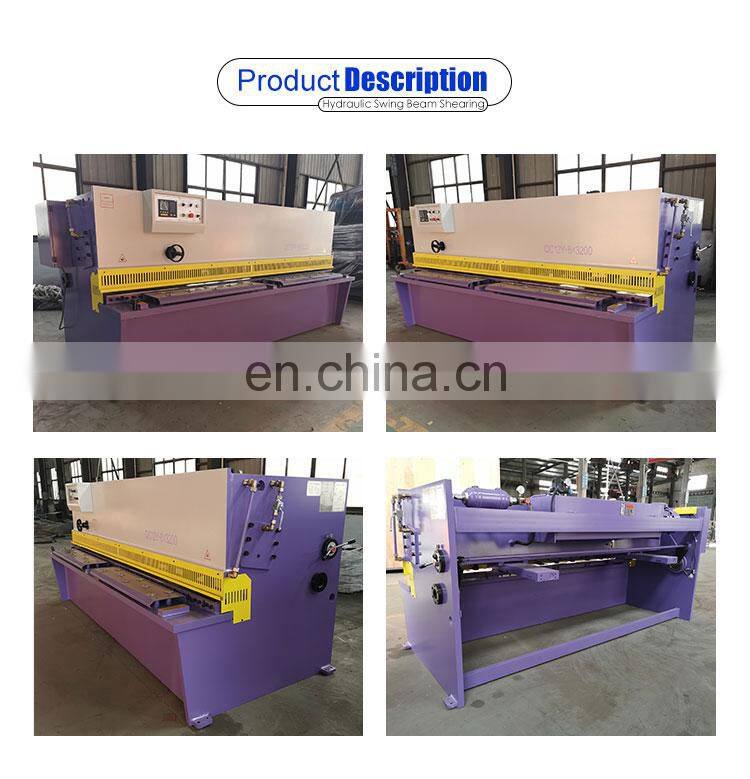

Product Description

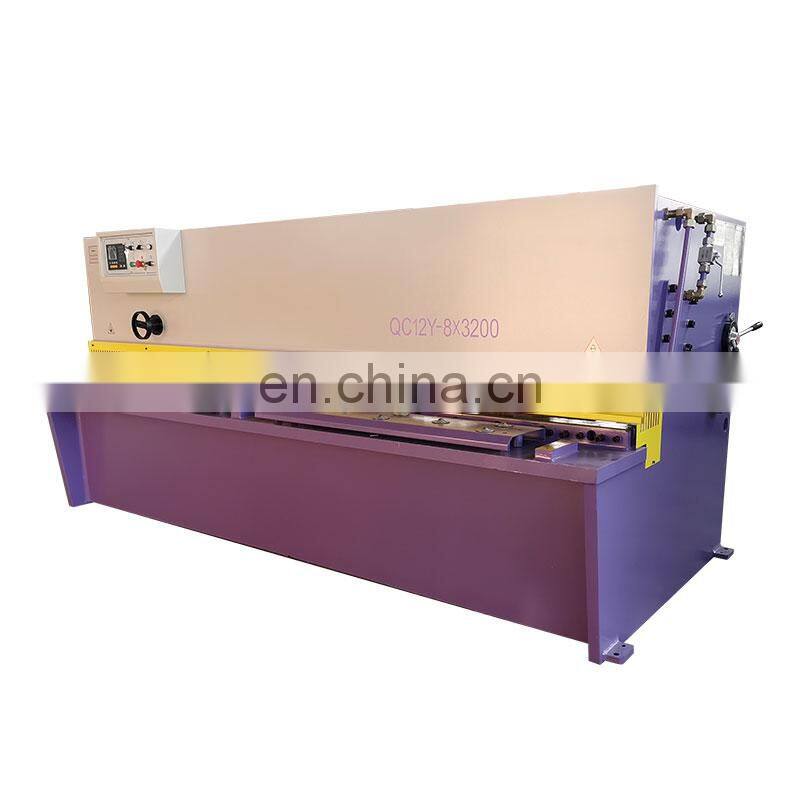

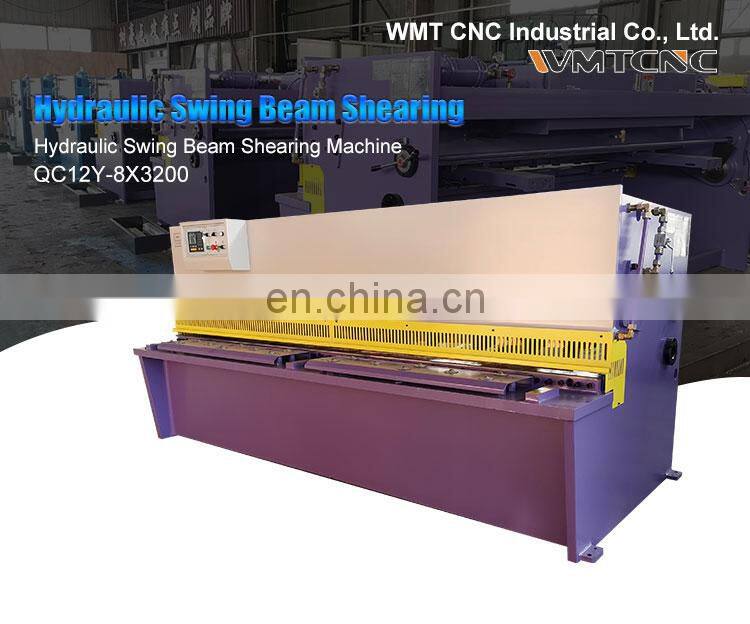

Hydraulic Shearing machine QC12Y-8X3200
The whole structure of Shearing machine:
-Totally European design, streamlined looking.
-Remove rust with sand-blast and coated with anti-rust paint.
-Frames, assembly surfaces and connection holes are machined after the welding process,up to 60' in a single pass.

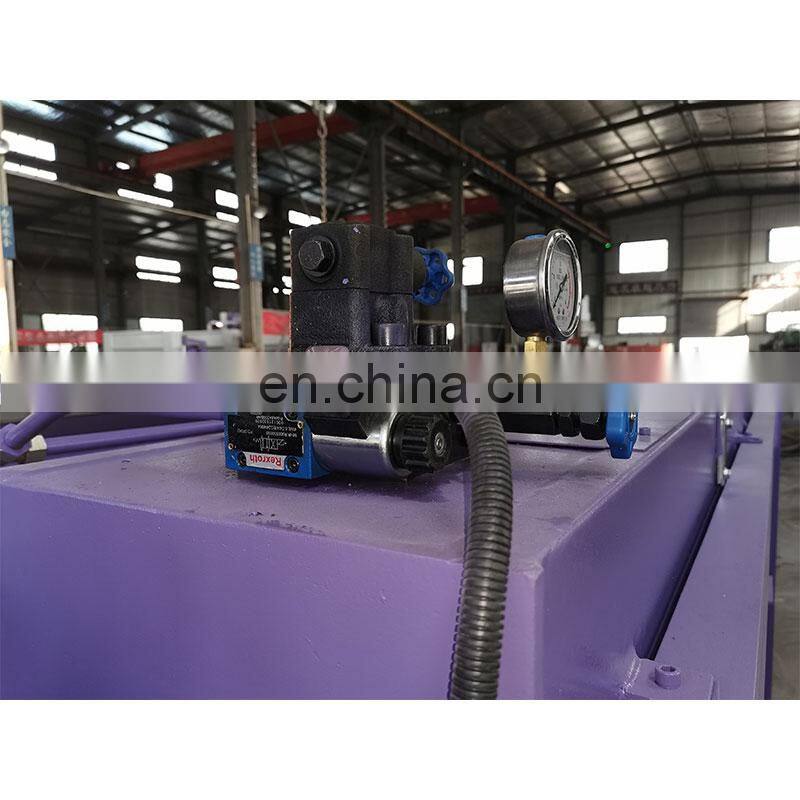

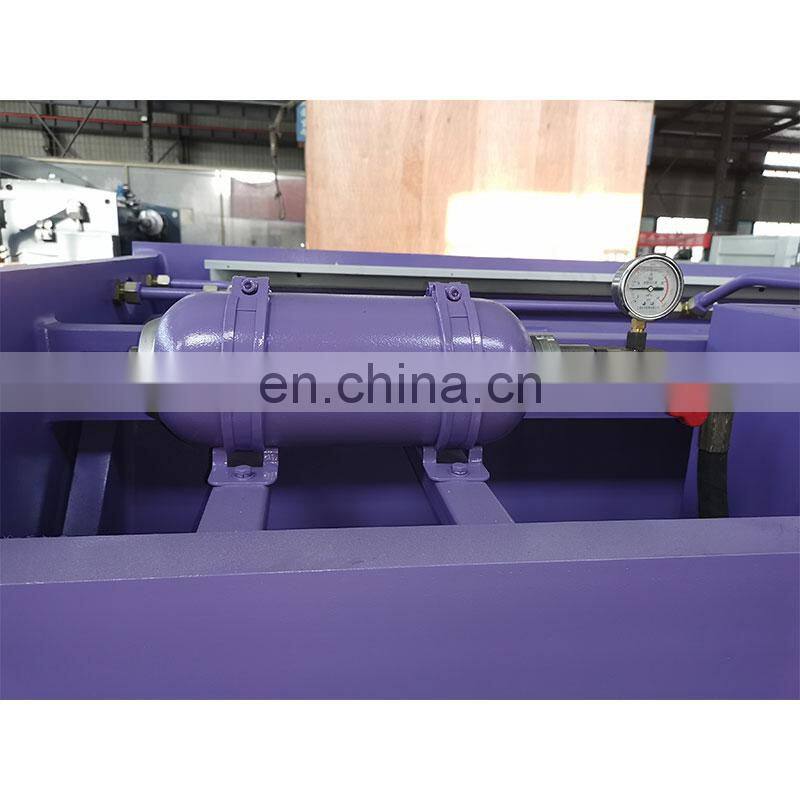

1. Hydraulic system
-Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Bosch -Rexroth, Germany.
-All pipes, flange and joint with vibrations proof and leakage proof design and setting.
-All seals in cylinder is NOK from Japan, the most famous brand, good quality and high performance.
-Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
-The hydraulic system is made in compliance with current regulations.
2. Electrical system
-Electrical Cabinet under the standard of IP55, Electrical under international CE Standard, safe and reliable, strong anti interference capability.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
-Front Side Covers with safety switches, Back light safety guards,Foot pedal conforming to CE regulation.
3. Blade Adjust and Cutting Precision
-Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
-Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
-The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades 6CrW2Si quality.
4. Backgauge
-Back gauge instal on the blade rest, along with the rest on the up and down movement, it’s driven by a motor through the E21s system can control the plate before and after the position adjustment, behind.
-The adjusting range of the backstop material is 10 ~ 600mm, which can be adjusted freely in this range.
5. E21s NC Controller
-Backgauge and block control
-Control for AC motors, frequency inverter
-Intelligent positioning
-Stock counter
-Holding/decompression time setting
-Program memory of up to 40 programs, up to 25 steps per program
-One side positioning
-Retract function
-One key backup/restore of parameters
-mm/inch
-Chinese/English
Specification |
Unit |
Value |
|
Model |
QC12Y-8X3200 |
||
Cutting thickness |
mm |
8 |
|
Cutting width |
mm |
3200 |
|
Tensile strength of material |
N/ mm2 |
≤450 |
|
Shearing angle |
1°30’ |
||
Time of stroke |
/min |
10 |
|
Length of blade |
mm |
3300 |
|
Height of worktable |
mm |
840 |
|
Thickness of uprights |
mm |
40 |
|
Backguage rang |
mm |
10 - 600 |
|

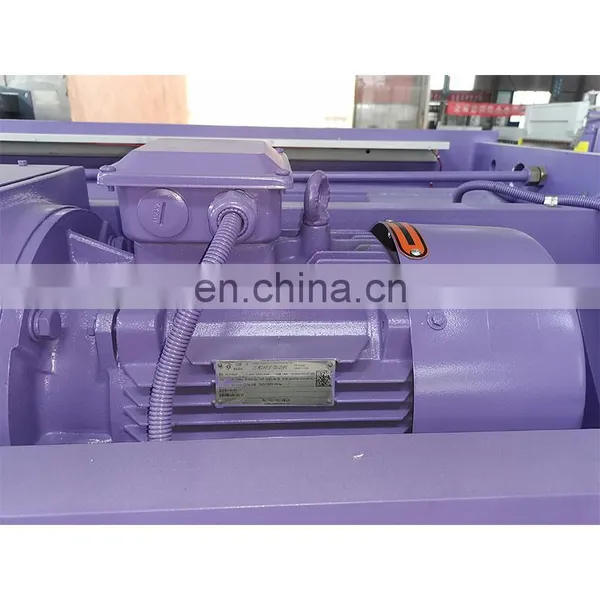

Motor power |
KW |
11 |
|
Gear pump |
L |
25 |
|
Weight |
KG |
6200 |
|
Dimension |
mm |
3900x1650x1750 |
|
Product Details
Standard accessories:
Gear pump; E21S NC controller;
Main electric parts; Hydraulic system;
Blade; Casting connector; Hydro-cylinder

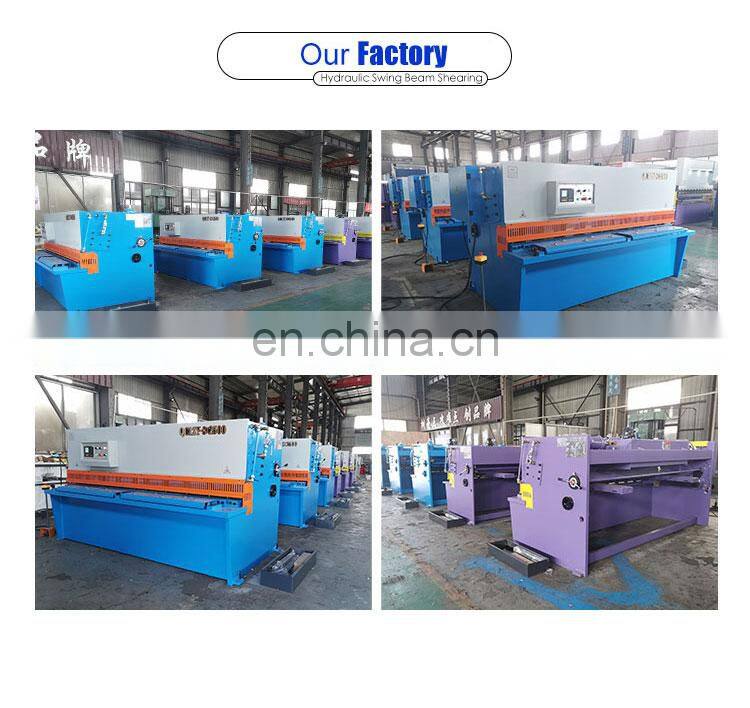

Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
