----Cassava starch processing machine---
Cassava starch processing machine takes cassava as raw material, automatic process cassava into starch from raw material cleaning and washing, starch extraction, fine filtering, sand removal, concentration and purification, dehydration and drying process. It takes only fifteenth minutes for the raw material to be cleaned to the finished product which not only avoids the oxidative deformation of the material exposed to the air for a long time and the secondary pollution of dust and microorganism, but also greatly improves the production efficiency and product quality.
Here is the detail introduction of cassava starch processing machine
1.Dyr sieve for cassava cleaning: Dry sieve is the widely used cassava starch processing machine for cleaning process. It has the function of cleaning and transportation of cassava. And the main features of dry sieve is simple structure, reasonable speed and no damage to material.

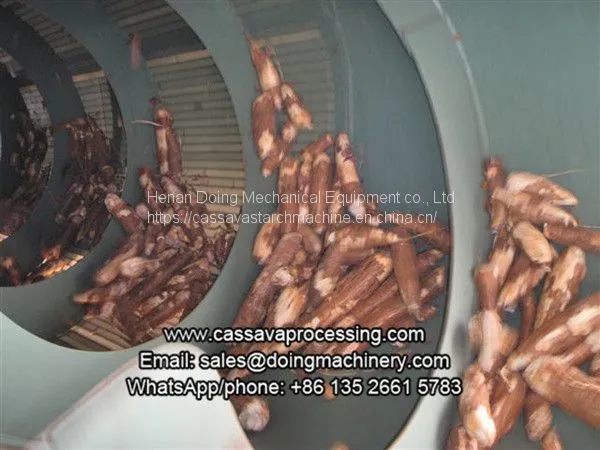

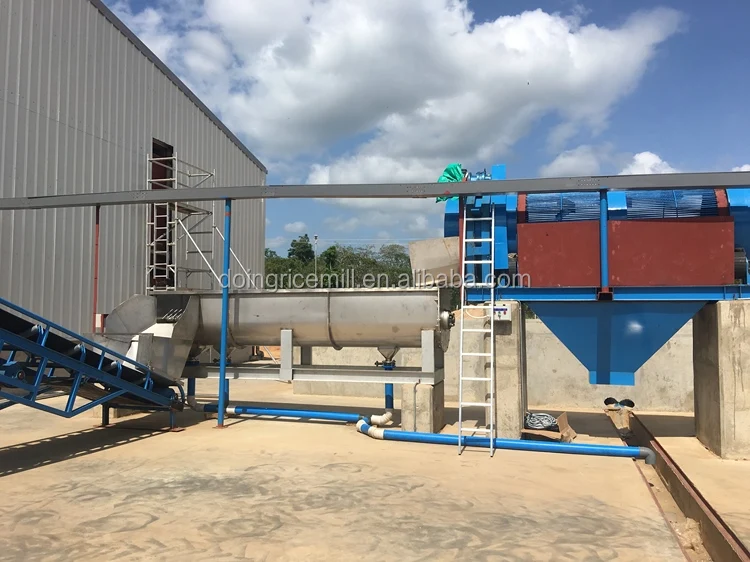

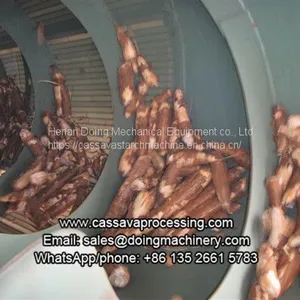

2.Paddle washing machine for cassava washing: This cassava starch processing machine here serves to remove the outer skin of the root as well as the adhering dirt. It features with large capacity, low water consumption and good washing effect.

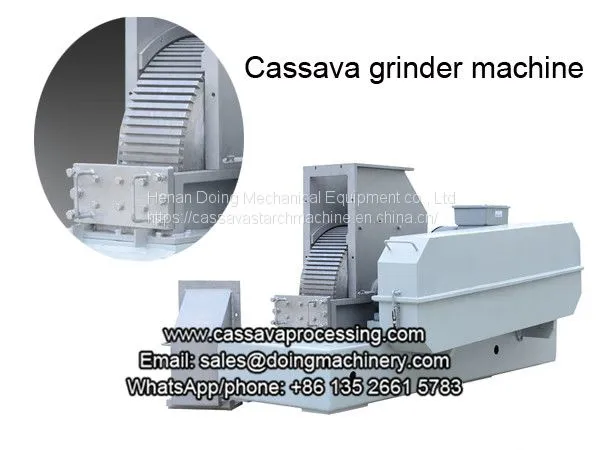

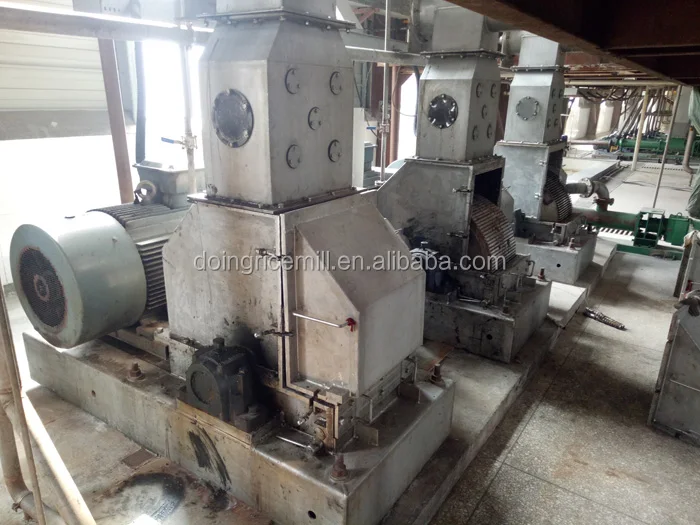

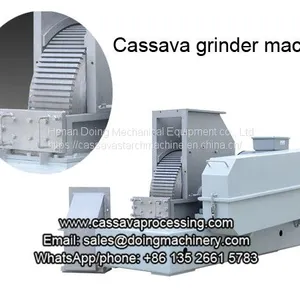

3.Rasper for cassava crushing: Crushing is the most important procedure in cassava starch production line, therefore the rasper is the most important cassava starch processing machine. The main function of rasper is to extract starch as much as possible to get high yield of cassava starch. DOING rasper is an advanced machine which introduces Sweden SKF bearing and Germany Optibelt. The breaking rate can reach up to 95%.
Technical parameters of rasper:
| Model | CM-250 | CM-300 | CM-350 | CM-500 | CM-600 |
| Rotor width(mm) | 250 | 300 | 350 | 500 | 600 |
| Power(kw) | 7.5-15 | 55-90 | 110-132 | 160-200 | 200-250 |
| Weight(kg) | 1500 | 2700 | 3200 | 3800 | 4500 |
| Capacity(t/h) | ≤6 | ≤12 | ≤20 | ≤30 | 40 |

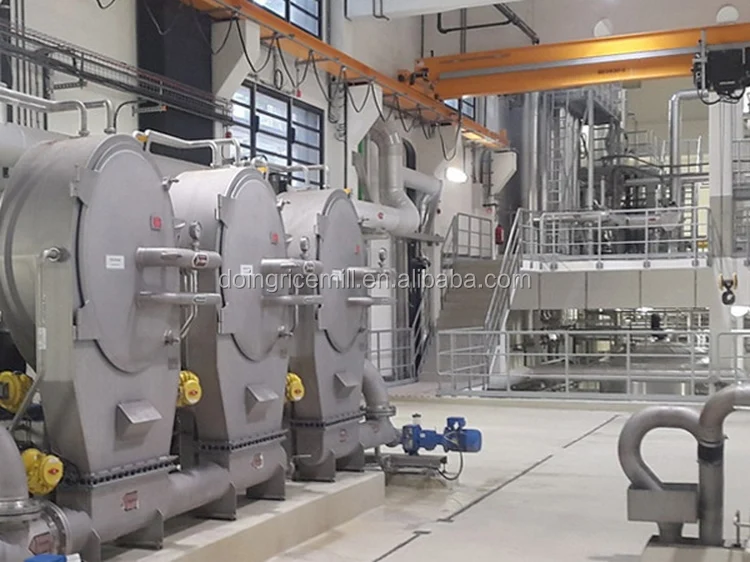

4.Centrifuge sieve for slurry and residue separation: Centrifuge sieve is an important cassava starch processing machine used for separating fiber from starch slurry. This machine adopts the automatic front and back washing system which not only guarantees the good penetration of screen but also ensures the machine operate effectively and steadily for a long time.
5. Fine fiber sieve for further separating: Fine fiber sieve is another cassava starch processing machine used for starch separation which utilizes low centrifugal force to further separate fine fibers out of starch slurry. It has the features of good separation effect, large capacity and low power consumption.
6.Desander: The main function of this cassava starch processing machine is to remove sand from cassava starch slurry so as to reduce the ash of starch and improve the taste of final products. It features with convenient operation and friendly maintenance.

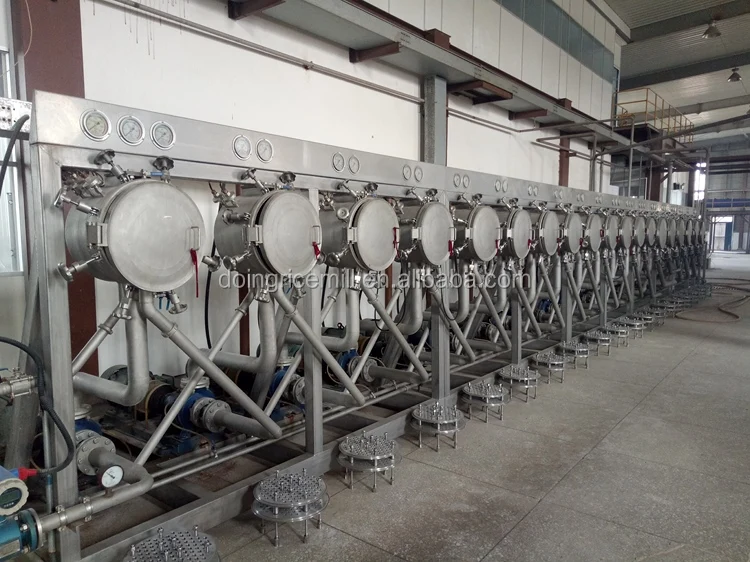

7.Hydrocyclone station: Hydrocyclone station is widely used cassava starch processing machine for removing insoluble protein, residue soluble protein and cell sap. Full hydrocyclone separation system can achieve the concentration, refining and recycling of cassava starch. The hydrocyclone pipe is made from strengthened nylon which offers long services life.
Technical parameters of hydrocyclone station:
| Model | DYX-362 | DYX-438 | DYX-516 |
| Capacity(t/h) | 3-4 | 5-6 | 7-8 |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Plate diameter(mm) | 362 | 438 | 516 |
| Power(KW/stage) | 7.5-11 | 11-22 | 15-37 |
| Weight(kg) | 360 | 520 | 630 |

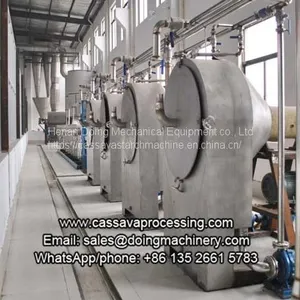

8.Peeler centrifuge: Peeler centrifuge is a cassava starch processing machine which adopts continuous operation and intermittent discharging. It is mainly used for starch dewatering process which can effectively decrease moisture content to 36.5%. The contact part of this machine is stainless steel which prevent cassava from pollution.

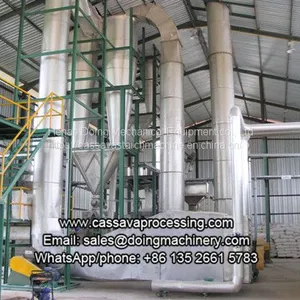

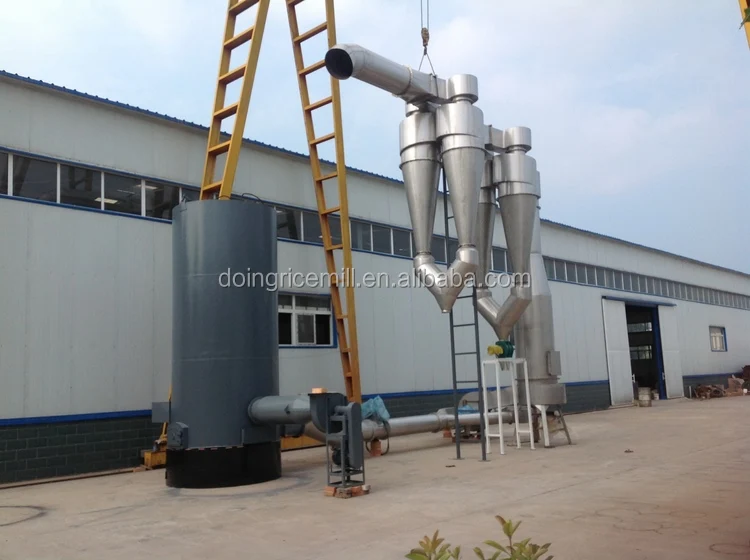

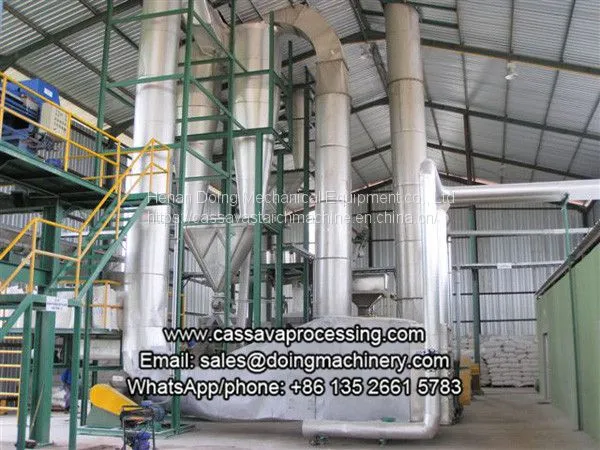

9. Flash dryer for starch drying: Flash dryer widely applies to various kind of starch drying, which includes potato starch, sweet potato starch, cassava starch and so on. After drying, the water content is about 12%-14%. The whole machine adopts negative pressure system which can not only effectively control the loss of starch but also purify the working environment to ensure the final starch quality. The main features of this cassava starch processing machine are short drying time, high heat exchange rate and easy operation.
Technical parameters of flash dryer:
| Model | DG-2.6 | DG-3.2 | DG-4.0 | DG-6.0 | DG-10.0 |
| Output capacity(t/h) | 2.6 | 3.2 | 4.0 | 6.0 | 10.0 |
| Material | SS | SS | SS | SS | SS |
| Power(kw) | 61.65 | 97 | 139 | 166 | 269 |
| Input wet starch moisture(%) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| Output starch moisture(%) | 12-18 | 12-18 | 12-18 | 12-18 | 12-18 |
10.Automatic packing machine: This is a cassava starch processing machine used for packing final cassava starch for storage or marketing. This machine can be designed according to requirements. It has the features of save labors and high efficient.

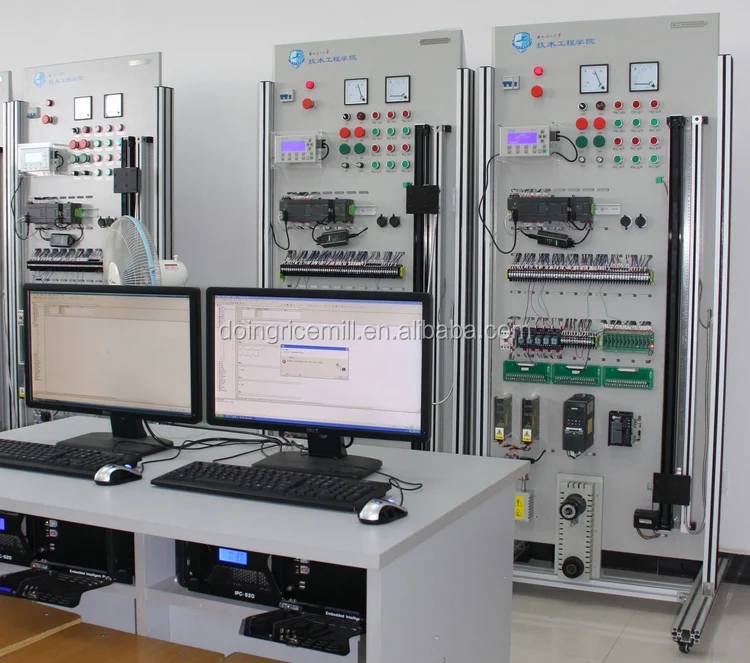

11.Automatic control system: The last cassava starch processing machine is automatic control system which consists of MCC operation cabinet, OCC control cabinet, LCB cabinet and matched CCTV monitoring system. It can help control the whole cassava starch processing procedure to ensure the quality of cassava starch.
---Company Information---
Henan Doing Mechanical Equipment co., Ltd is a company specialize in the manufacture, research & develop and installation the complete set of cassava products deeply processing equipment. With the ability of independently research and develop new products, we constantly update and introduce new technologies and products to keep our company at an advanced level. And our company had got 11 national patents, and taken the accreditation of ISO9001 (international quality management system certification).
Our company adheres to the tenet of "quality guarantee, customer first" to provide perfect technical consultation and high quality after-sales service. With advanced processing equipment and scientific management system, our products are popular in the whole world, and our cassava processing machine have sold to different counties, such as, Cambodia, India, Indonesia, North Korea, South Africa, Uzbekistan, Syria, Russia, Bulgaria, Algeria, Bangladesh, Pakistan, Vietnam, Thailand, Mongolia, etc.
Contact: Ms Elina
Tel: 0086 371 5677 1822
WhatsApp/Phone: +86 13526615783
Email: sales@doingmachinery.com
---DOING service ---
Pre-sale Service
Inquiry and consulting support.
Recommend the appropriate equipment model for the customer.
Design and manufacture machines according to customers' needs.
After-sale Service
We offer training service for our customer about how to install and use the machine correctly.
Our engineers are available for overseas machinery service.

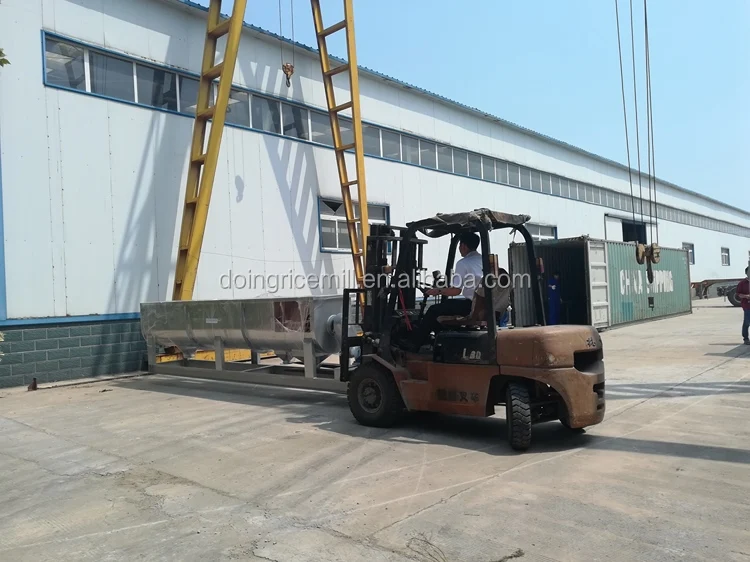

---Packaging and Delivery ---
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Qingdao, Shanghai, Guangzhou, Ningbo
---FAQ For Cassava Starch Processing Machine---
1. Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer, which has long experience in this industry.
2. Q: How can I get to your company ?
A: You can get a flight to CGO. We are just about 40- 50mins away from this Airport.
3. Q: How long is your guarantee ?
A: One year
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have our company has established business relationships with customers in Nigeria,Ghana , South Africa, Ukraine, Vietnam, Pakistan.
