Weighing: choose scales, with specifications ranging from 5 to 50 tons in cassava starch processing line.
Cleaning: the cleaning machine designed by DOING has a specification of 5-50 tons capacity. To clean weed, sand, and other debris in cassava starch processing line.
Stone removing: choose Doing Company's production of 5-30 tons/hour stone removing machine, and send the stone removing machine with scraper conveyor.

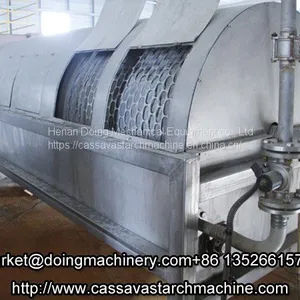

Washing: Using paddle washing machine, and use the profit plate conveyor or self-current into washing machine.To remove soil, dirt and other impurities in cassava starch processing line.
Cassava milling: Using rasper to mill cassava into slurry to releasr free starch. There are hopper on the rasper. Cassava is fed into the hopper by the screw conveyor in cassava starch processing line.
Separation: Separation of slag and starch milk by centrifugal part and sieving pump and slurry pump (screw pump, foam pump) produced by Doing Company. The centrifugal sieve in cassava starch processing line is: YT-LXXS-700, 850, 900, 1000.Equipped with pump of Mx40-50, Mx65-50, Mx65-50, Mx80-40, Mx100-50.

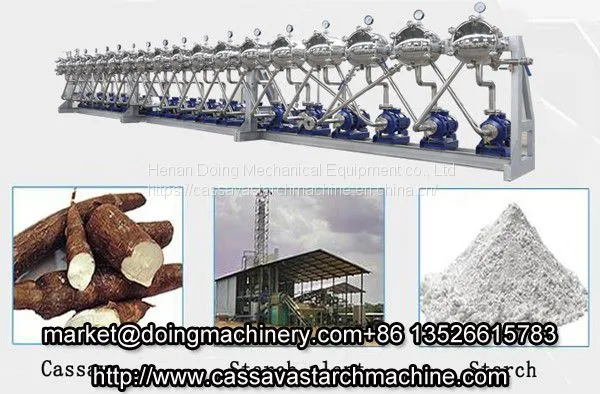

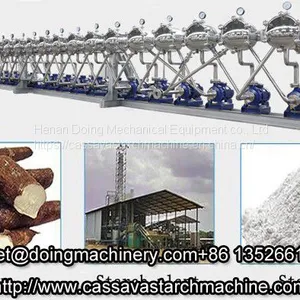

Refining: Use hydrocyclone station of 16-18 sections (2-3 sections of concentration,12 sections of refining and 2-3 sections of recovery), specifications in cassava starch processing line are YT-XLQ 220, 260, 300, 325, 360, 400, 430, 450, 500. Equipped with pump of Mx50-40, Mx65-40, Mx80-40, Mx100-40.

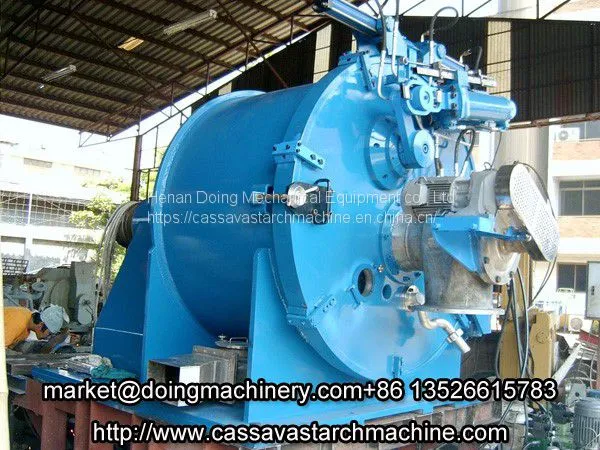

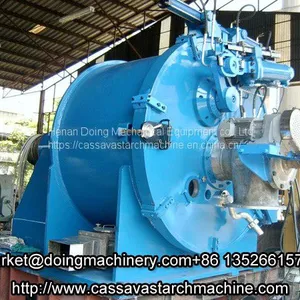

Dehydration: adopting Doing Company's production peeler centrifuge, equipped with pump in cassava starch processing line.

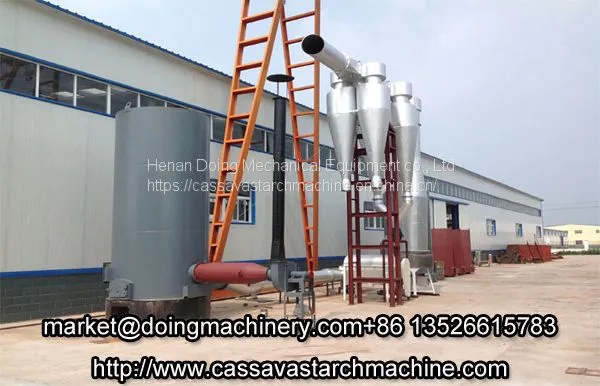

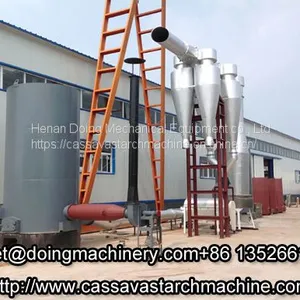

Drying: Using flash dryer to dry starch to the desired quality. According to the output choose different specification drying pipe, fan, close fan and radiator piece.
Packaging: there are two ways in cassava starch processing line: (1): people (according to the output of the number of users): (2): automatic packaging: choose the type according to the output.
Warehousing: In cassava starch processing line, the finished starch packaged shall be timely stored, it is rwquired to ensure the ventilation of the storehouse and complete fire prevention measures.
The production capacity of cassava starch processing line (24 hours per day) is as follows:
200KG/ h cassava starch, daily processing of cassava raw materials: about 20T;
500KG/ h cassava starch, daily processing of cassava raw materials: about 50T;
1, 000 kg/h cassava starch, daily processing of cassava raw materials: about 100T;
1500KG/ h cassava starch, daily processing of raw material of cassava: about 150T;
2500KG/ h cassava starch, daily processing of cassava raw materials: about 240T;
Production line of 5000KG/ h cassava starch, daily processing of raw material of cassava: 480T;
10000KG/ hour cassava starch processing line, daily processing of raw materials about 960T;
- Skype: elina881130
- WhatsApp: +8613526615783
- Phone: +86 135 2661 5783
- Tel: +0086 371 5677 1822
- Email: market@doingmachinery.com
View more:
Henan Doing Mechanical Equipment co., Ltd is a company specialize in the manufacture, research & develop and installation the complete set of cassava products deeply processing equipment. With the ability of independently research and develop new products, we constantly update and introduce new technologies and products to keep our company at an advanced level. And our company had got 11 national patents, and taken the accreditation of ISO9001 (international quality management system certification).
Spontaneous research and development the following products:
Cassava starch processing machine
Cassava flour production line
Garri processing machine
Potato and sweet potato starch production machine
Glucose syrup & Maltose syrup processing plant
Corn syrup & high fructose processing plant
Our company adheres to the tenet of "quality guarantee, customer first" to provide perfect technical consultation and high quality after-sales service. With advanced processing equipment and scientific management system, our products are popular in the whole world, and our cassava processing machine have sold to different counties, such as, Cambodia, India, Indonesia, North Korea, South Africa, Uzbekistan, Syria, Russia, Bulgaria, Algeria, Bangladesh, Pakistan, Vietnam, Thailand, Mongolia, etc.
Pre-sale Service
Inquiry and consulting support.
Recommend the appropriate equipment model for the customer.
Design and manufacture machines according to customers' needs.
After-sale Service
We offer training service for our customer about how to install and use the machine correctly.
Our engineers are available for overseas machinery service.
