Garri making machine for sale
Gari and cassava production in Africa is an impressive business opportunity for the continent, especially West and Central Africa. The garri making machine mainly inluced the peeler, grater, hydraulic press, sieving machine and garri fryer.
1. Cassava peeling section:
Peeling involves removing the outer brown layer of cassava tubers to expose the white/yellow flesh. However, peeling machines reduce waste, saves time and labour, and does more work in a short time; it can peel up to 2,500kg of cassava in an hour while manual peeling can only process 20kg. The peeler is usually the most expensive machine of the whole range.
Technical parameters of cassava peeling machine:
| Model | Capacity(t/h) | Power(kw) | Dimension(mm) | Weight(kg) |
| DYTP-40 | 0.5-1 | 3 | 3250*1050*1100 | 1200 |
| DYTP-60 | 1-2 | 5.5 | 4250*1050*1100 | 2000 |
| DYTP-80 | 3-4 | 7.5 | 5250*1050*1100 | 3000 |
2. Grater section:
This machine grinds the peeled and washed cassava tubers into a pulp or mash and can often process up to 4 tons of raw cassava in one day.
Technical parameters of cassava grater:
| Model | CM-250 | CM-300 | CM-350 | CM-500 | CM-600 |
| Rotor width(mm) | 250 | 300 | 350 | 500 | 600 |
| Power(kw) | 7.5-15 | 55-90 | 110-132 | 160-200 | 200-250 |
| Weight(kg) | 1500 | 2700 | 3200 | 3800 | 4500 |
| Capacity(t/h) | ≤6 | ≤12 | ≤20 | ≤30 | 40 |

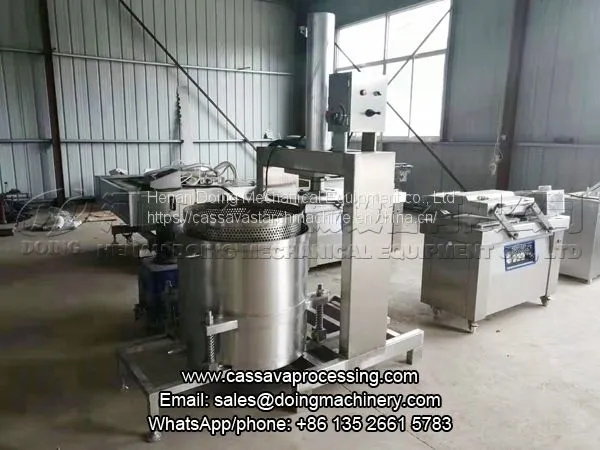

3. Hydraulic Press:
This machine comes with a 30-ton hydraulic jack and does an easy job of squeezing all the water out of the mashed cassava.
4. Sieving machine:
This is the machine that separates the fibre/lumps from the grated, mashed and pressed cassava before frying.

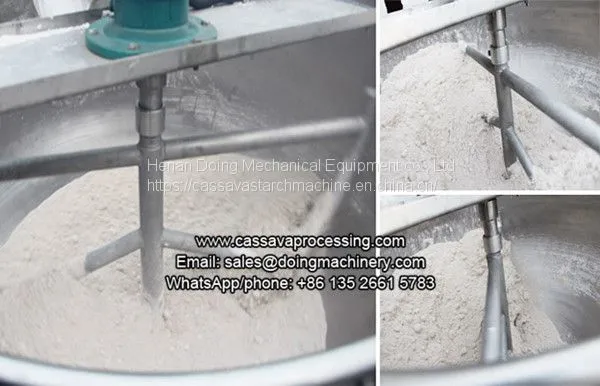

5. Garri Fryer:
There are basically two types of fryers - mechanical and metal trays. While the mechanical fryer is much more expensive, it can process more gari in a shorter time than the metal trays which require more time and human labour. However, both still get the frying job done.
Technical parameters of garri fryer:
| Model | Diameter(mm) | Depth(mm) | Stirring power(kw) | Capacity(kg/h) |
| DYC-300 | 1000 | 390 | 1.5 | 40 |
| DYC-400 | 1000 | 420 | 1.5 | 60 |
| DYC-500 | 1000 | 450 | 1.5 | 100 |
| DYC-600 | 1000 | 450 | 3 | 150 |
For those on a tight budget for garri processing plant machine.
A small scale processing plant with the full range of machines can produce up to 1 ton of gari (about twenty 50kg bags) in a day. If you are on a tight budget, you could remove the mechanical fryer and peeling machine from your list since they are the two most expensive options. However, you will require more labour and may produce less gari in a day.
Contact: Ms Elina
Tel: 0086 371 5677 1822
WhatsApp/Phone: +86 13526615783
Email: sales@doingmachinery.com
View more:

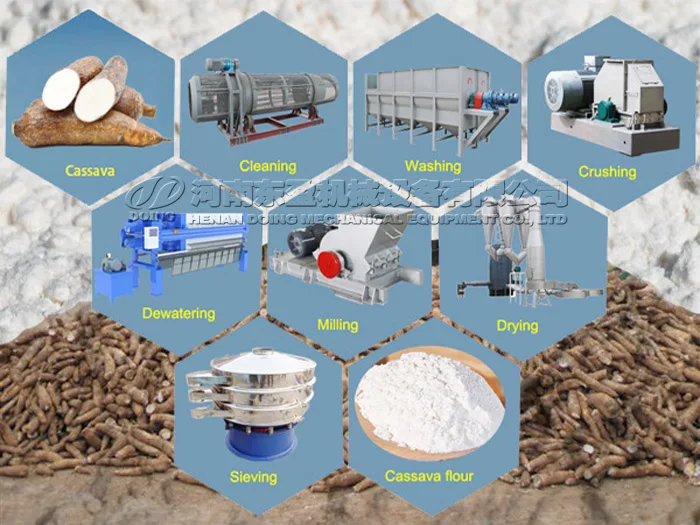

My company engaged in cassava processing machinery,cassava starch processing machine,cassava flour production machine,cassava starch production line,sweet potato/ potato starch processing plant,cassava flour making line,garri processing plant machine,gluten washing machine,syrup production line,glucose syrup processing machine,high frucose corn syrup processing machine,we can provide the complete set production line and the turnkey project.
We have advanced processing equipments and scientific management system. The products have gained many achievements and awards. Our machines have been exported to Nigeria, Vietnam,Congo, Pakistan,South Africa, Uzbekistan, Indonesia, Thailand, Libya, Cananda, Chile, Argentina, Ethiopia, Zambia, Russia,Urganda and so on.
1.Pre-sale services:
Act as a good adviser and assistant of clients
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2.Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients’ worries
(1) Assist clients to prepare for construction scheme
(2) Install and debug the equipment
(3) Train the first-line operators on site
(4) Examine the equipment regularly
(5) Distribute the guarantee fittings door-to-door
(6)Provide technical exchanging

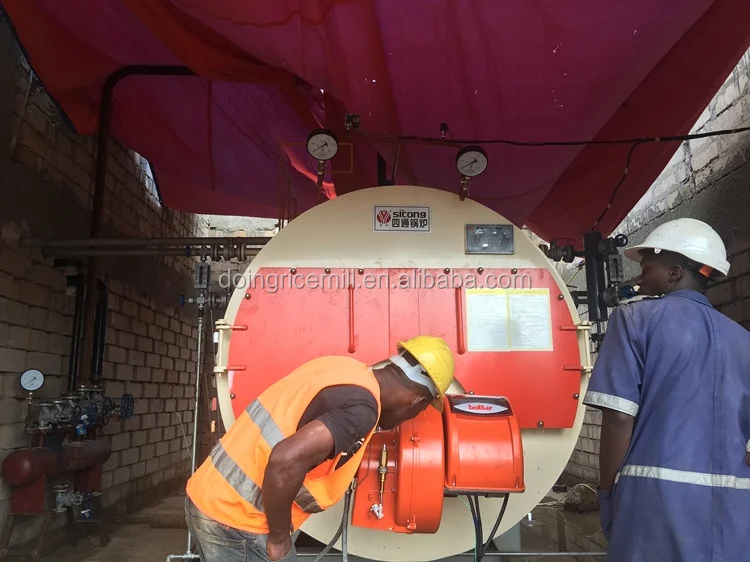

DOING engineer team help customers solve problems in the cassava processing plant project in Tanzania
1. Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer, which has long experience in this industry.
2. Q: How can I get to your company ?
A: You can get a flight to Xinzheng Airport. We are just about 40- 50mins away from Xinzheng Airport.
3. Q: How long is your guarantee ?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have our company has established business relationships with customers in Nigeria,Ghana , South Africa, Ukraine, Vietnam, Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,,Jordan,Syria, Libya etc.
