Stable Speedy Shells Joining and Growing Process

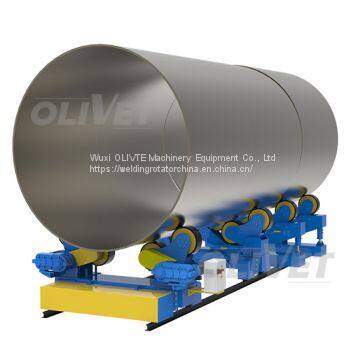

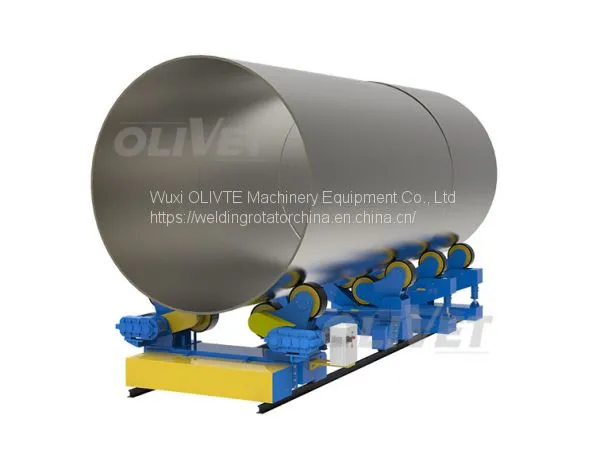

FITA Series shell Growing Line is used for three or more pipes/ shells assembly and welding job. FITA Growing Line is equipped with two fit-up self-alinging roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

welding equipment Features

A.   Fastest system to assemble 1+1 or 1+1+...+1 sections

B.  Self-aling design automatically to meet different diameters of workpieces

C.  Four independent hydraulic adjusting roller to align the two sections with each other

D.  European hydraulic station, Parker oil tube and Schneider elctrical control system

E.  Ideal for:

    - Wind tower fabrication

    - Pressure vessels

    - Pipe assembly

Configuration details

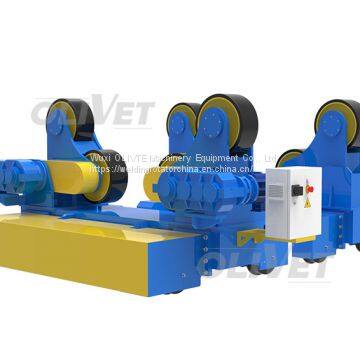

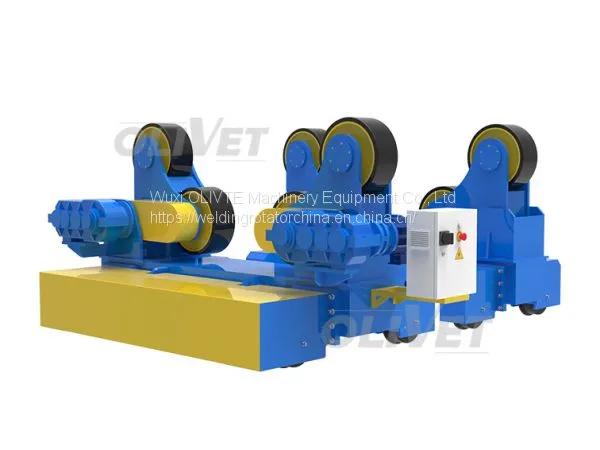

FITA Growing Line is complete with a group of 4 (four) rotators in two combinations:

Fit-up section for fit-up job consist of:

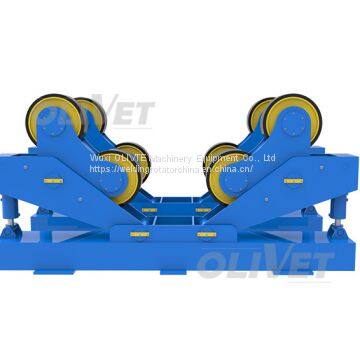

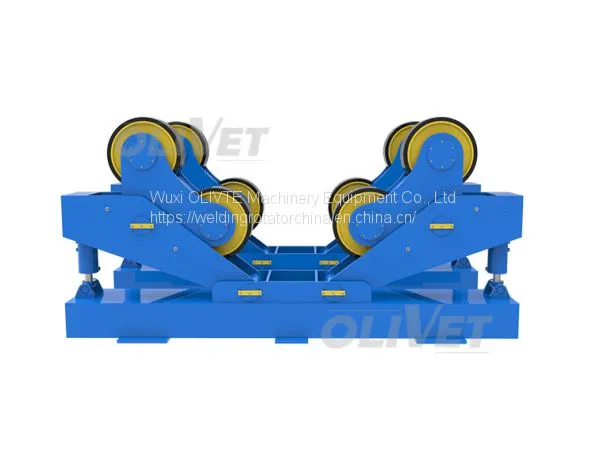

Rotator A & B: Hydraulically adjusted idle rotator which fixed on ground and has two hydraulic cylinders to adjust center distance of rollers separately.

Growing section is for ‘growing job’ consist of two rotators.

Rotator C: Idler rotator- Automatcially adjust supporting angle of rolls to handle different workpiece diameter and manual travel on rail.

Rotator D: Power rotator - Automatcially adjust supporting angle of rolls to handle different workpiece diameter and motorized travel on rail.

Scope of Delivery

A.  1 Power section, 1 Idler roller bed

B.   2 Fit up roller beds and hydrulic station

C.  1 Hydraulic support v-roll

D.  1 Electric control system

    1 Main control panel

    2 Remote pendant
