Stable Speedy Pipes Joining Process

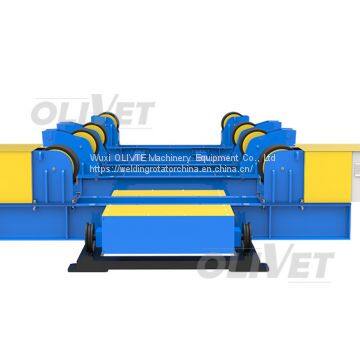

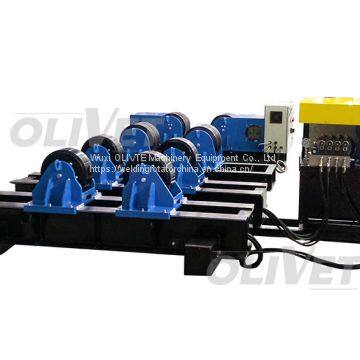

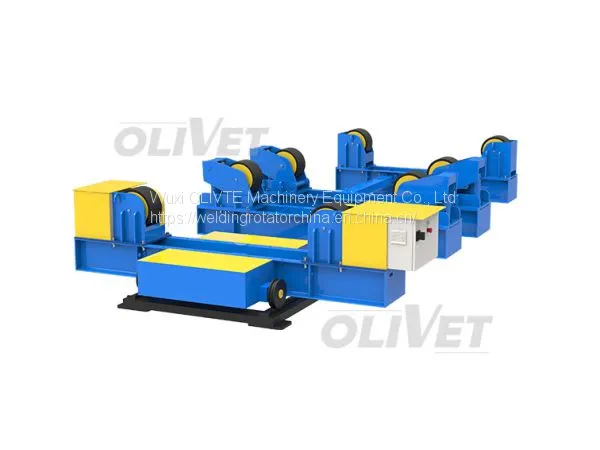

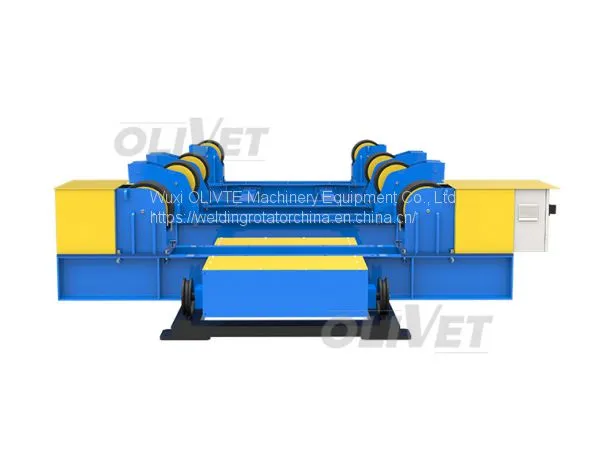

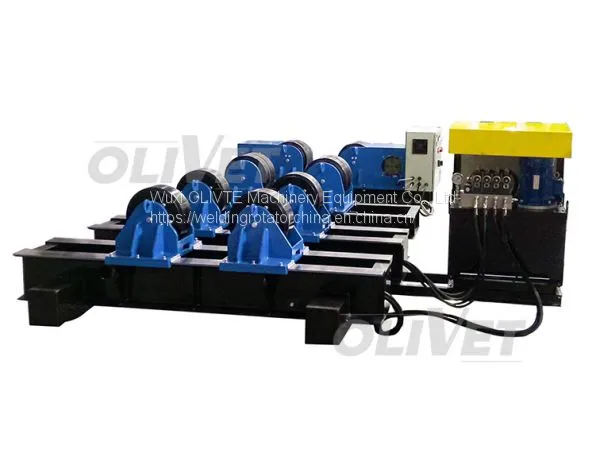

FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job.

FIT Fit Up Station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

No extra rail tracks, the Fit up roller bed station allow easily to place various sites, inner of workshop or outdoor location.

welding fit fit up station Features

A.  Designed and robustly built to withstand rugged work enviroments

B.  Fastest system to assemble 1+1 or 1+1+1 sections

C.  Four independent hydraulic adjusting roller to align the two sections with each other

D.  Large range center distance to match diffrent diameter of workpiecec

E.  European hydraulic station, Parker oil tube and Schneider elctrical control system

F.  Ideal for:

    - Wind tower fabrication

    - Pressure vessels

    - Pipe assembly

Scope of Delivery

A.  1 Power section, 1 Idler roller bed

B.   2 Fit up roller beds and hydrulic station

C.  1 Hydraulic

D.  1 Electric control system

    1 Main control panel

    1 Remote pendant

welding positioner  Main Technical Parameters
