FIT Fit Up Station welding fit fit up station pipe assembly fit up station manufacturer

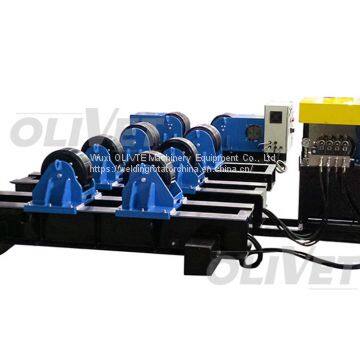

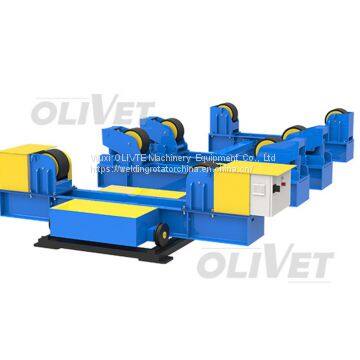

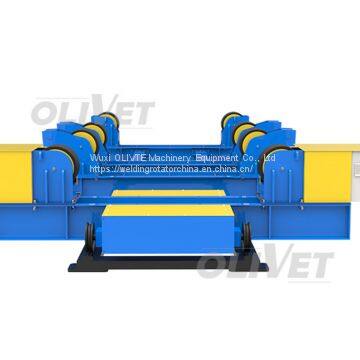

Fit Up Roller Station - FIT Series
Stable Speedy Pipes Joining Process
FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job.
Fit fit up station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.
No extra rail tracks, the Fit up roller bed station allow easily to place various sites, inner of workshop or outdoor location.
Welding Rotator Features
A. Designed and robustly built to withstand rugged work enviroments
B. Fastest system to assemble 1+1 or 1+1+1 sections
C. Four independent hydraulic adjusting roller to align the two sections with each other
D. Large range center distance to match diffrent diameter of workpiecec
E. European hydraulic station, Parker oil tube and Schneider elctrical control system
F. Ideal for:
- Wind tower fabrication
- Pressure vessels
- Pipe assembly
Scope of Delivery
A. 1 Power section, 1 Idler roller bed
B. 2 Fit up roller beds and hydrulic station
C. 1 Hydraulic
D. 1 Electric control system
1 Main control panel
1 Remote pendant
Fit Up Rotator Main Technical Parameters
Model |
FIT-30 |
FIT-40 |
Max loading capacity |
30 tons |
40 tons |
Workpiece diameter |
? 800- ? 3500 mm |
? 800- ? 4500 mm |
Rolling speed |
100-1000 mm/min |
100-1000 mm/min |
Rolling motor power |
2 X 1.5 kw |
2 X 2.2 kw |
Roller material |
Polyurethane (PU) |
Polyurethane (PU) |
Hydraulic elevating adjusting stroke |
150 mm |
150 mm |
Hydraulic horizontal adjusting |
250mm |
250mm |
Power rotator moving speed |
200-2000mm/min |
200-2000mm/min |
Wuxi OLIVTE Machinery Equipment Co., Ltd., which professional in welding equipment,rotator, welding positioner, welding manipulator .
If you are interested in our products, please click here.
