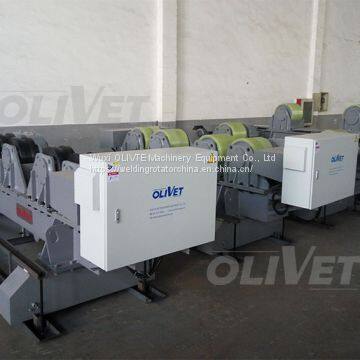

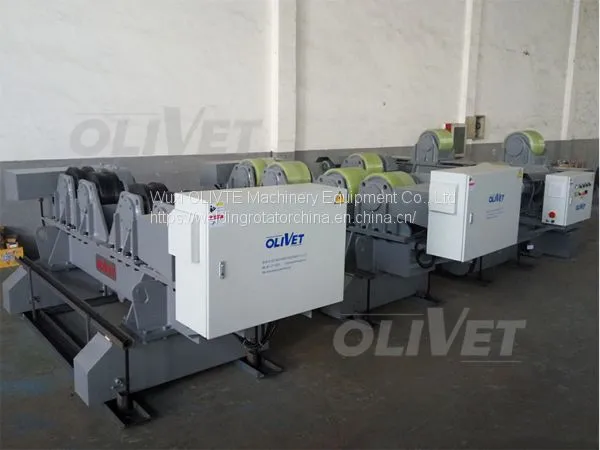

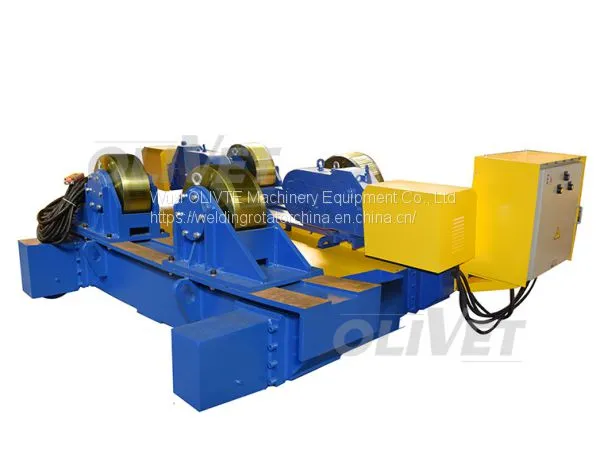

Painting Blasting Rotator Painting & Blasting Rotator Turning Rolls - HGK Series
Stable Rotating Process
The HGK series Painting rotator and blasting rotator (adjustable turning rolls) has two synchronously operating drive units which arrange for a continuous rotation with frequency convension stepless speed controlling. A hand held, wireless control pendant provides the operator with full control of the rotator including a potentiometer for varying the speed, forward/reverse and stop. Explosion electrical system equipped to make sure a safe working situation.
adjustable welding rotator Features
A. For turning and positioning vessel or tanks in the sections of chemical engineering, container building, petrochemical and pipeline construction.
B. Welded, robust steel construction.
C. Adjustable rotating speed.
D. Large range center distance to match diffrent diameter of workpiecec
E. Compact and robust design, easy to operate.
F. Explosion motors and control system
china welding rotator Main Technical Parameters
Model | Max. load | Workpieces dia. | Roller material | Roller dia. | Roller width | Rolling speed | Roller motor | Travelling motor |
HGK-40 | 40,000kg | ?500-?5,000mm | Pu Steel | ?400mm | 220mm 180mm | 200-20000mm/min | 2x1.5kw | 2x0.75kw |
HGK-60 | 60,000kg | ?500-?5,000mm | Pu Steel | ?450mm | 2x180mm 200mm | 200-20000mm/min | 2x2.2kw | 2x1.1kw |
HGK-80 | 80,000kg | ?800-?6,000mm | Pu Steel | ?450mm | 2x180mm 220mm | 200-20000mm/min | 2x3kw | 2x1.5kw |
HGK-100 | 100,000kg | ?800-?6,000mm | Pu Steel | ?500mm | 2x200mm 220mm | 200-20000mm/min | 2x3kw | 2x2.2kw |
Wuxi OLIVTE Machinery Equipment Co., Ltd supply welding equipment, welding rotators, welding positioner& manipulator, milling equipment,etc.
If you are interested in our products, please click here.
/
