FITZ Growing Line Growing Line - FITZ Series pipe and shells growing line system
Stable Speedy Shells Joining and Growing Process

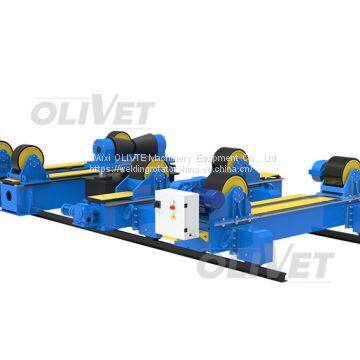

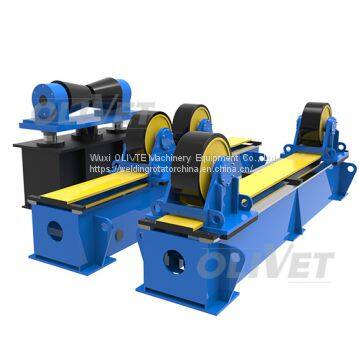

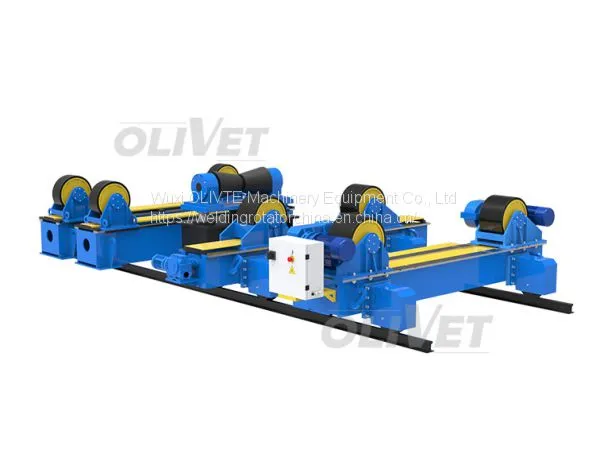

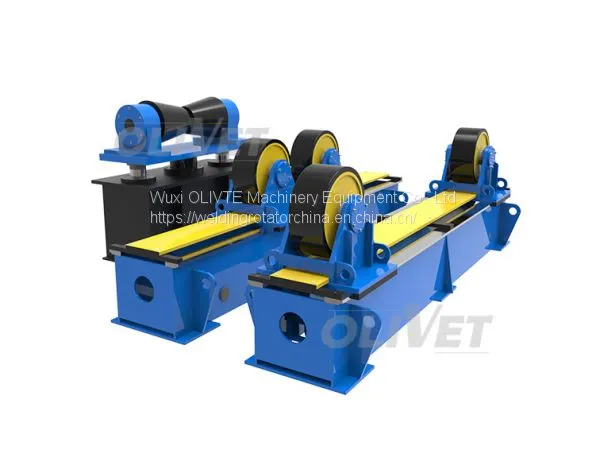

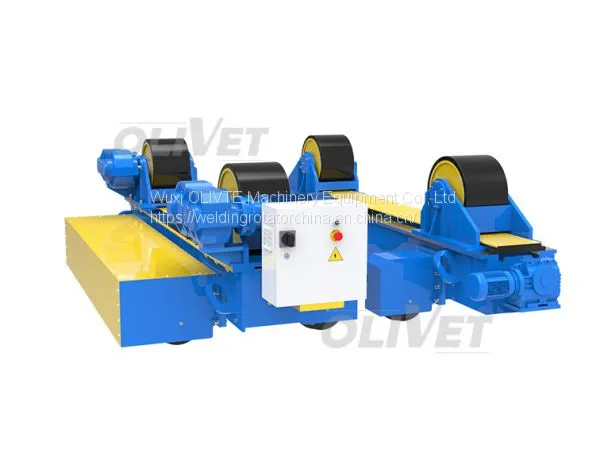

FITZ series shell Growing Line is used for three or more pipes/ shells assembly and welding job. FITZ Growing Line is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.
growing line roll system Features
A. Designed and robustly built to withstand rugged work enviroments
B. Fastest system to assemble 1+1 or 1+1+...+1 sections
C. Four independent hydraulic adjusting roller to align the two sections with each other
D. Large range center distance to match diffrent diameter of workpiecec
E. European hydraulic station, Parker oil tube and Schneider elctrical control system
F. Ideal for:

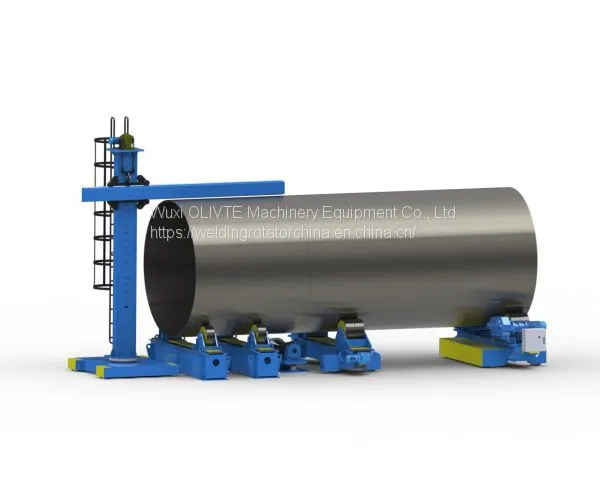

- Wind tower fabrication
- Pressure vessels
- Pipe assembly
growing line system Technical Paramter
Model | FITZ-60 | FITZ-100 |
Max loading capacity | 60 tons | 100 tons |
Rotator A & B capacity | 30 tons | 30 tons |
Rotator C (v-roll support) capacity | 30 tons | 50 tons |
Rotator D and E capacity | 60 tons | 100 tons |
Workpiece diameter | ? 800- ? 4500 mm | ? 850- ? 5500 mm |
Rotator A & B roller center-distance adjusting | Hydraulic cylinder | Hydraulic cylinder |
Rotartor C height adjusting | Hydraulic cylinder | Hydraulic cylinder |
Rotator D roller center-distance adjusting | Motorized lead-screw | Motorized lead-screw |
Rotator E roller center-distance adjusting | Bolts manual | Bolts manual |
Rolling speed | 100-1000mm/min (VFD) | 100-1000 mm/min (VFD) |
Rolling motor power | 2 X 2.2 kw | 2 X 3 kw |
Roller material | Polyurethane (PU) | Polyurethane (PU) |
Hydraulic control mode | 5 each separatly | 5 each separatly |
Rotator D horizontal moving speed | 250-2500mm/min (VFD) | 250-2500mm/min (VFD) |
Rails inner gauge | 2000mm | 2000mm |
Wuxi OLIVTE Machinery Equipment Co., Ltd supply welding equipment, welding rotators, welding positioner& manipulator, milling equipment,etc.
