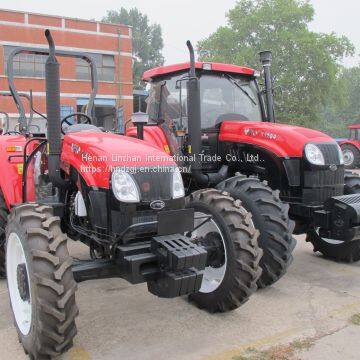

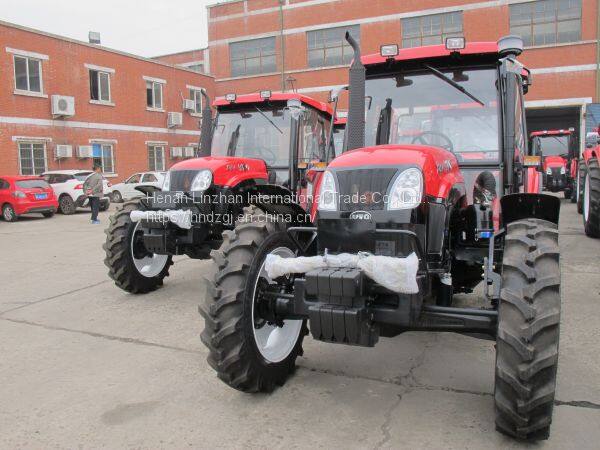

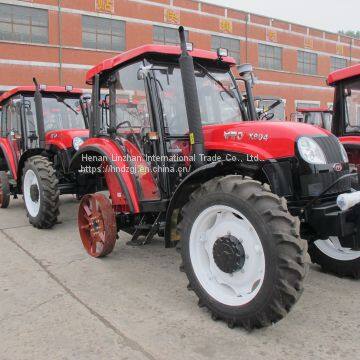

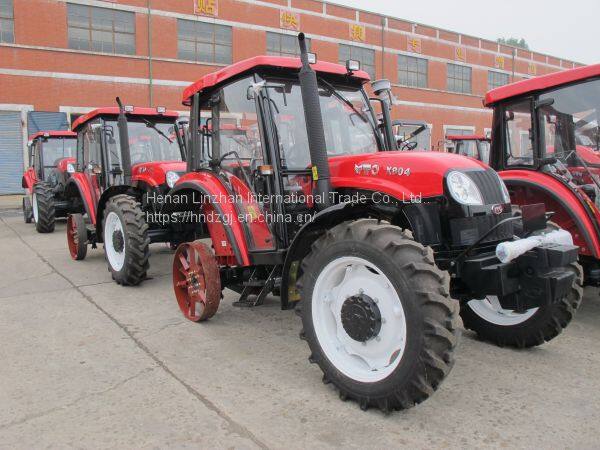

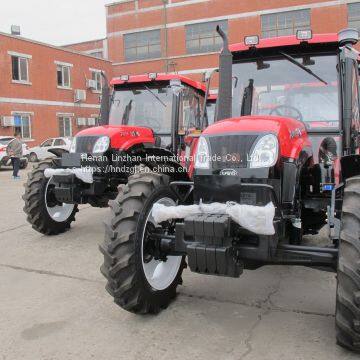

YTO-X804
The YTO-X804 tractor is developed on the basis of the Italian wheeled tractor chassis technology and adopts the British technology-based engine. The machine body has a streamline configuration. It has a low specific fuel consumption and a desirable power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.
Engine
Model LR4B5-23
Type Vertical, water-cooled, four-stroke, direct injection economy diesel engine
Rated rotation speed r/min 2300
Transmission system
Number of speed gears, forward / reverse 12/4
Speed range, forward km/h 1.65-27.2
Speed range, reverse km/h 4.3-12.8
Machine body
Max. operating weight kg 4370
Wheel base mm 2314
Front wheel tread / mm 1630-1960
Rear wheel tread mm 1500-2100
Min. turning radius m 3.7
Specific fuel consumption under rated conditions g/kW.h ≤242
Tires, front / rear 16.9-28/13.6-38
PTO shaft type Rear-positioned, independent and synchronous
Max. traction force kN 26.4
Overall dimensions (L×W×H) mm 4260×2170×2875
Min. ground clearance mm 430
