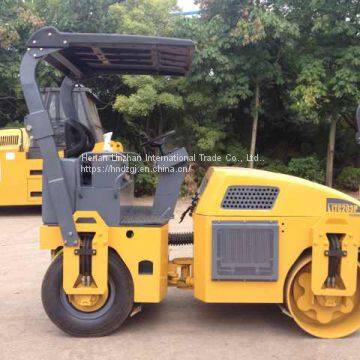

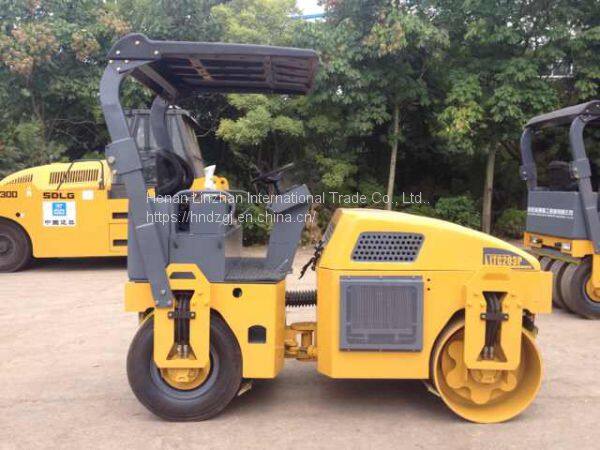

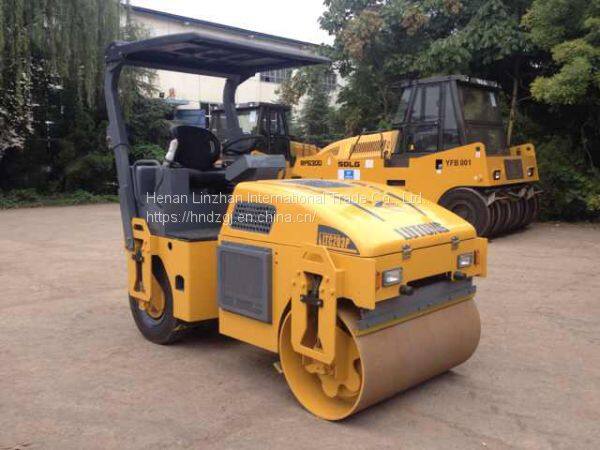

LTC203P Tire combined hydraulic vibratory roller
Main Features
LTC203P hydraulic front and rear wheels drive,hydraulic front drum vibration;
Both front and rear wheeis have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent, greatly expanded mechanical proper working condition.
Adopt ZN390B diesel engine, Energy conservation and environmental protection, very convenient for use and maintenance; Compact integral structure, small volume,capable of used for compaction on narrow site, with small investment , quick retum of goog economic.
LTC203P rear wheel adopts combination of four slick tires,and has double functions of steel wheel roller and tire roller,which can elfectively improve the rolling quality of asphalt pavement,and improve the climbing ability.
LTC203P walking more stable,damping effect.
LTC203P High-end seats,has greatly enhanced operator comfort,reduce fatigue.
Main Technical Parameters
MODEL LTC203P
Operating mass kg 3000
Static linear load N/cm 120/103
Vibration frequency mm 0.5
Centrifugal force KN 30
Vibration frequency Hz 50
Travel speed Km/h 0-12
Grade ability % 32
Steering angle ° ±26
Overall dimension mm 2760X1400X2580
Drum diameter mm 700
Drum width mm 1250
Quantity of rear tire Pic 4
Specification of rear tire 7.50-15
Wheelbase mm 2010
Diesel power KW 23
Diesel model ZN390B
Water tank capacity L 165
