New Oriental Red YTO-X904 Wheeled Trator

New Oriental Red YTO-X904 Wheeled Trator thumbnail-1
New Oriental Red YTO-X904 Wheeled Trator thumbnail-2
New Oriental Red YTO-X904 Wheeled Trator thumbnail-3
New Oriental Red YTO-X904 Wheeled Trator photo-1
New Oriental Red YTO-X904 Wheeled Trator photo-2
New Oriental Red YTO-X904 Wheeled Trator photo-3
US$ 24300 - 24500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YTO
Model Number:
YTO-X1204
Type:
Wheel Tractor
Contact Supplier Request Quote Chat Now
Henan Linzhan International Trade Co., Ltd..
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YTO
Model Number YTO-X1204
Type Wheel Tractor
After-sales Service Provided No overseas service provided
Usage Farm Tractor
Drive Type Other
Condition New
Power(W) 88kw
By wheel 4WD

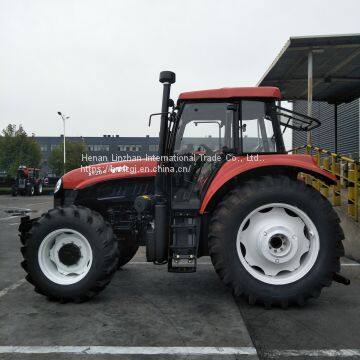

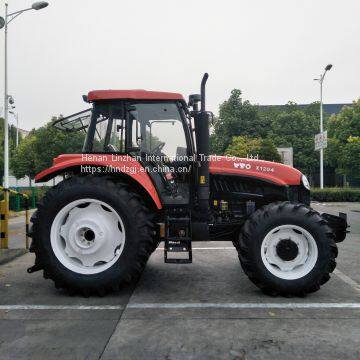

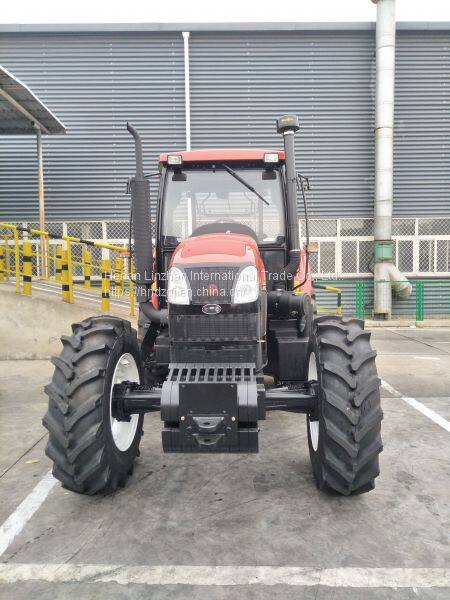

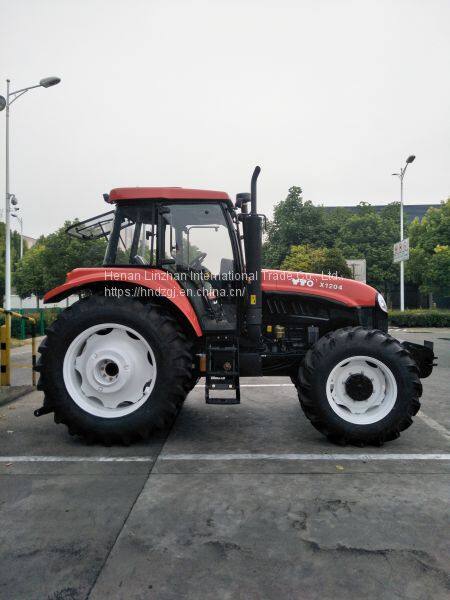

YTO-X1204

The YTO-X1204 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine. The machine body has a streamline configuration. It is low in specific fuel consumption and better in power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.

Engine

Model LR6B5-23

Type Vertical, water-cooled, four-stroke direct injection diesel

Rated rotation speed r/min 2400

Transmission system

Number of speed gears, forward / reverse 12/4

Speed range，forward km/h 2.34-30.55

Speed range，reverse km/h 5.04-14.27

Machine body

Wheel base mm 2688.5

Front wheel tread mm 1760-2000

Rear wheel tread mm 1660-2260

Min. ground clearance mm 495

Min. turning radius m 4.6

Max. operating weight kg 5420

Specific fuel consumption under rated conditions g/kw.h ≤242

Wheel tires (front / rear) inch 14.9-26/18.4-38

Lifting capability KN 26

PTO shaft rotation speed r/min 540/1000

Overall dimensions（L×W×H） mm 4770×2330×2960
