NEW LT214B /S Single Drum Daul-amplitude Vibratory Roller

NEW LT214B /S Single Drum Daul-amplitude Vibratory Roller photo-1

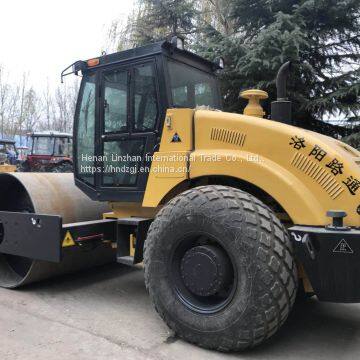

NEW LT214B /S Single Drum Daul-amplitude Vibratory Roller photo-2

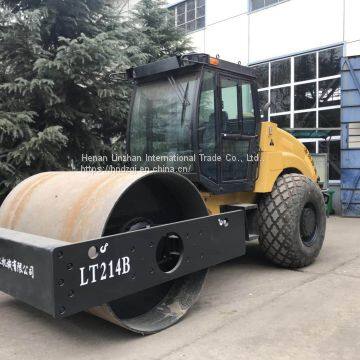

NEW LT214B /S Single Drum Daul-amplitude Vibratory Roller photo-3
US$ 32000 - 32200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
lutong
Place of Origin:
China
Model Number:
LT214B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
3 days
Brand Name lutong
Place of Origin China
Model Number LT214B
Type Single Drum Roller
After-sales Service Provided No overseas service provided
Weight 14-ton
Dimension(L*W*H) 5900*2280*3050mm
Condition New
Power(W) 88kw
Travel Speed 2-10.5km/h

LT214B /S Single Drum Daul-amplitude  Vibratory Roller


Main Features:

1.Mechanical travel drive, double amplitude, hydraulic vibration, fliud-link steering with optimal function/price ratio and reliable performance.

2.Reliable Yuchai Series diesel engine for convenient operation and maintenance.

3.Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.

4.Spacious and comfortable cab mounted on top quality rubber damping elements.

5.World advanced technology is adopted for the hydraulic vibration system, high reliability, simple and convenient in maintenance, and low cost.

Main Technical Specifications:

Model Unit LT214B/S

Operating mass Kg 14000

Static linear load N/cm 326

Vibration frequency Hz 30(28/35)

Vibration amplitude Mm 1.7/0.8

Centrifugal force KN 290/160

1st gear km/h 2.0

2nd gear km/h 4.0

3rd gear km/h 10.5

Grade ability % 30

Steering angle ° 35

Ground clearance mm 432

Electrical voltage 24

Turning radius 7000

Vertical oscillation 8

Tyre size 23.1-26

Overall length mm 5900

Overall width mm 2280

Overall height mm 3050

Drum width mm 2100

Drum diameter mm 1570

Drum rim thickness mm 24

Wheelbase mm 3185

Diesel engine model YC6B120

Diesel power Kw 88

Diesel speed r/min 2000

Fuel tank capacity L 220

Hydraulic tank capacity L 160
