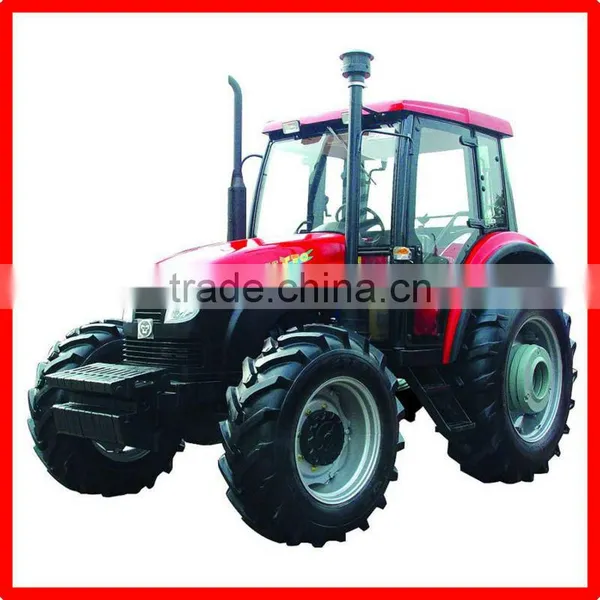

Help CenterYTO-X904 Farming Tractor
Related Products
Specifications
YTO-X904 farming tractor90hp, High efficiency
Good after-sales service
Good performance
High quality with reasonable price.
2. Absorb the design features of Italian mechanical T/M of the same power range, with rational layout structure, max speed up to 35.7km/h,optioned with 12F+12R or 24F+8R gears;
3. Easy operation and control by independent hydraulic oil loop; safe and reliable wet or disc brakes for front and rear axles;
4. Brand new flat floor cab with elegant outlook for hi-end market application, human operation interface; optioned with cold or warm air or A/C;
5. Can choose two from the three independent PTO output speeds,540,720 and 1000 rpm, adaptable for all operation requirements;
6. Two auxiliary oil cylinders for hydraulic lifting purpose, based on the built-in master cylinder, with lifting force up to 3000 Kn;
7. Optioned with LUK clutch.
Engine | ||
Emission stage |
Euro IIIA |
|
Type model |
YTO-4B3U-T1 |
|
Features |
4-cyl,in-line,water-cooled,turbo-charged,air-air intercooler |
|
Rated power |
66.5/90 KW/PS |
|
Displacement |
3770cc |
|
Rated speed |
2200r/min |
|
Transmission System | ||
Gears(Forward/Reverse) |
12F+4R |
|
Clutch |
11-inch,dry,double-action,independent control |
|
Range of speed(F/R) |
2.11-35.7/5.48-16.9 km/h |
|
Overall Dimension | ||
LXWXH |
4314X1950X2805mm |
|
Min operable mass |
4130kg |
|
Min ground clearance |
430mm |
|
Machine body | ||
Wheelbase |
2314mm |
|
Front/rear tread |
1630-1960/1500-2100mm |
|
Standard tire size |
13.6-24/16.9-34inch |
|
Steering radius |
5.3m |
|
Gear pump output capacity |
40 l/min |
|
Our factory:
Other YTO tractor models we can supply:
YTO-454 Tractor with Front end loader and backhoe
The YTO-454 is equipped with wed disc brake exhibiting desirable braking performance and high reliability; Planetary gear final drive; double-action clutch; operable for glebe and paddy fields; engagement sleeve gear change; Combined draft-position control; big wheel tread and axle base; big kerb mass, good chassis stability; Optioned with safety ROPS.
YTO-X1004 tractor
Specification for YTO-X1004 farming 1. Employ original electronic control Perkins engine, high torque, powerful overload performance, low fuel consumption;
2. Absorb the design features of Italian mechanical T/M of the same power range, with rational layout structure;
3. Independent oil loop, hydraulic steering system control; safe and reliable wet or disc brakes for rear axle;
Brand new flat floor cab, elegant and comfortable, options: with cold or warm air or A/C;
4. Two independent PTO output speeds,540 and 1000 rpm, adaptable for all operation requirements;
5. High lifting force, with multiple tilling depth control;
6. Two groups of hydraulic output valves optioned with 3-group hydraulic valves.
If you want to know more information of our other tractor models, please send us Email.
