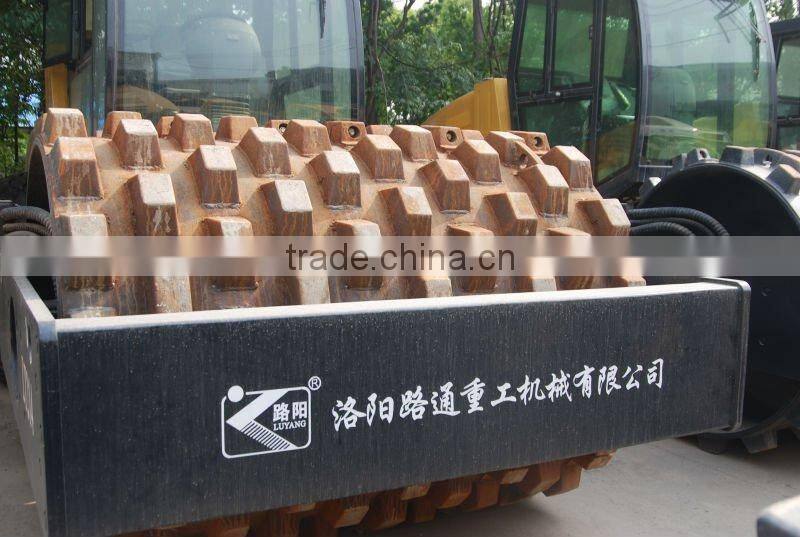

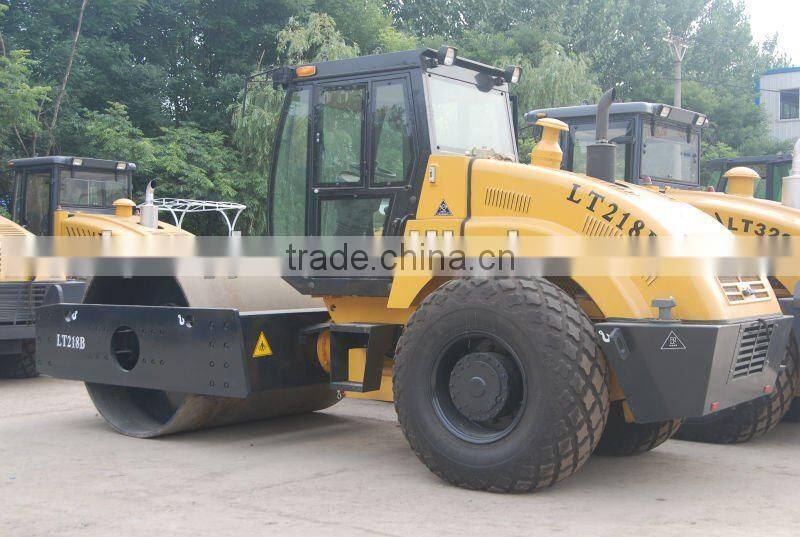

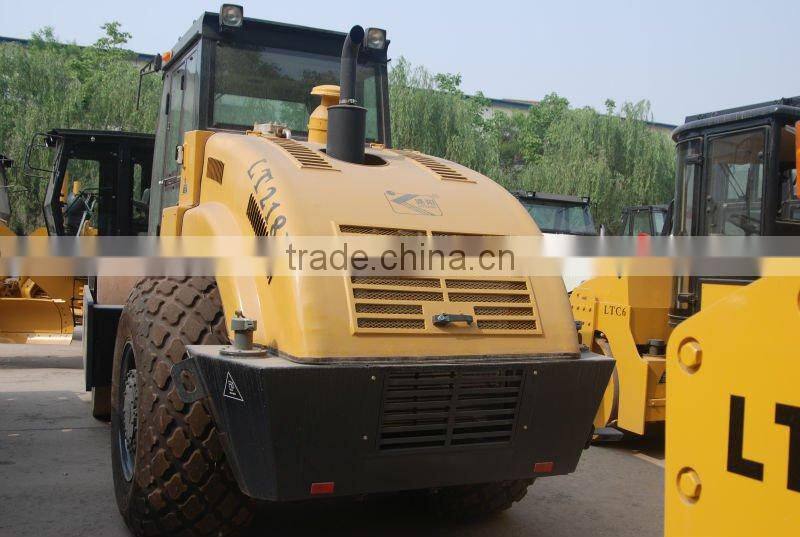

LT218B Single Drum Dual-amplitude Vibratory Roller
LT218B Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load. They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
Main Features:
- Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
- Reliable YC6B diesel engine for convenient operation and maintenance.
- Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.
- Spacious and comfortable cab mounted on top quality rubber damping elements.
- World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
Main Technical Specifications:
Model |
Unit |
LT218B |
Operating mass |
Kg |
18000 |
Static linear load |
N/cm |
415 |
Vibration amplitude |
Mm |
2.0/1.0 |
Vibration frequency |
Hz |
30 |
Centrifugal force |
KN |
340/200 |
Travel speed |
|
|
1st |
km/h |
2.0 |
2nd |
km/h |
4.0 |
3rd |
km/h |
10.5 |
Grade ability |
% |
35 |
Steering angle |
° |
35 |
Turning radius |
mm |
7000 |
Vertical oscillation |
|
8 |
Overall dimension |
mm |
5930X2300X3020 |
Min. ground clearance |
mm |
432 |
Electrical voltage |
V |
24 |
Drum width |
mm |
2100 |
Drum diameter |
mm |
1600 |
Drum rim thickness |
mm |
40 |
Type size |
|
23.1-26 |
Wheelbase |
mm |
3160 |
Diesel engine model |
|
YC6B150 |
Diesel power |
Kw |
110 |
Fuel tank capacity |
L |
180 |
Hydraulic tank capacity |
L |
150 |
Diesel speed |
r/min |
2000 |
