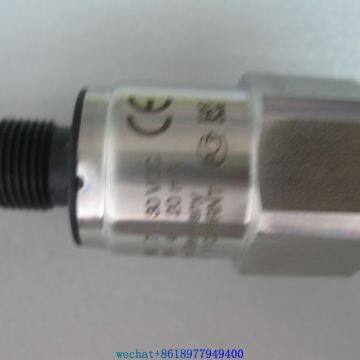

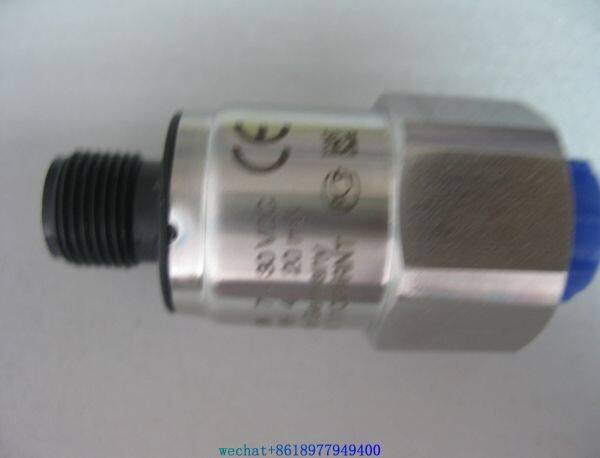

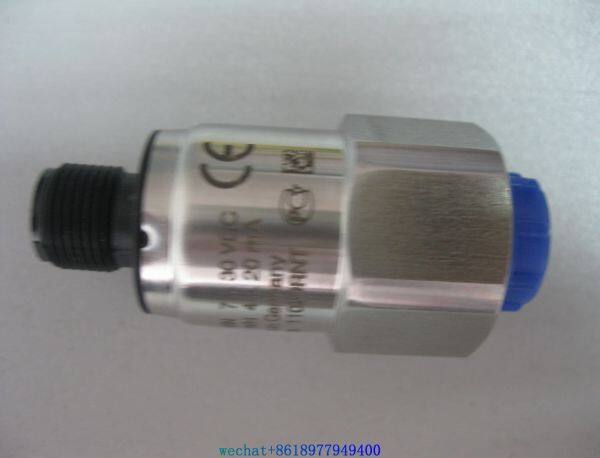

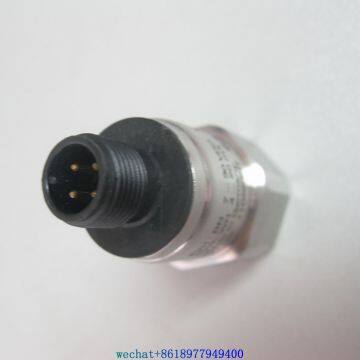

Emerson Pressure Transmitter Series PT5-07M,18M,PT5-30M,50M

Emerson Pressure Transmitter Series PT5-07M,18M,PT5-30M,50M Features

• Sensitive pressure cells with strong primary output signals for the precise operation of superheat, compressor or fan controls systems

• Fully hermetic

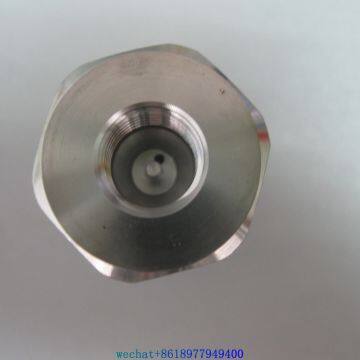

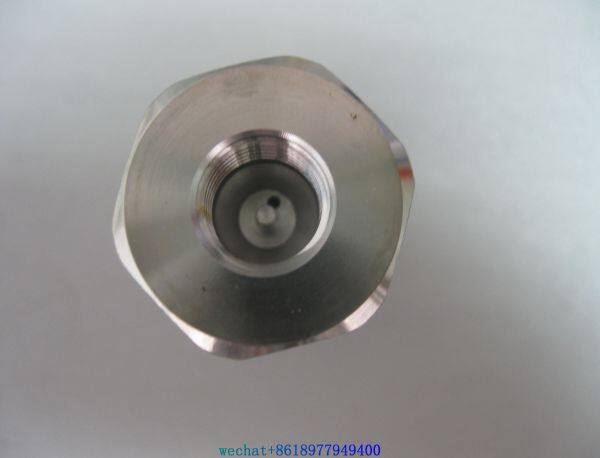

• PT5-xxM pressure connector 7/16-20 UNF with Schrader valve opener

• PT5-xxT with 6mm x 50mm long tube for applications requiring a fully hermetic system

solution

• Vibration, shock and pulsation resistant

• Protection class IP 65

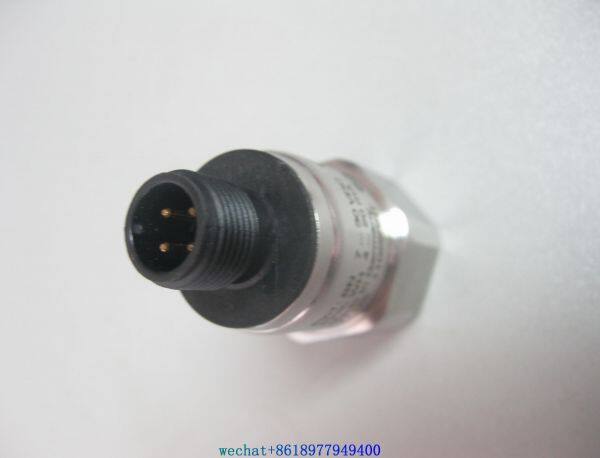

• Easy install M12 electrical connection with pre- assembled cable assemblies available in various lengths

• Output signal 4 to 20 mA

• Calibrated for specific temperature and pressure ranges to fulfill application demands in airconditioning and refrigeration systems

• Standard pressure ranges compatible with former Emerson pressure transmitters - Sealed gauge pressure

Emerson Pressure Transmitter Series PT5-07M,18M,PT5-30M,50M Selection Chart Transmitters

Type  Part  Output  Pressure  Max. working  Test  Burst  Pressure

No.  signal  range  pressure PS  pressure PT  pressure  Connection

(bar)  (bar)  (bar)  (bar)

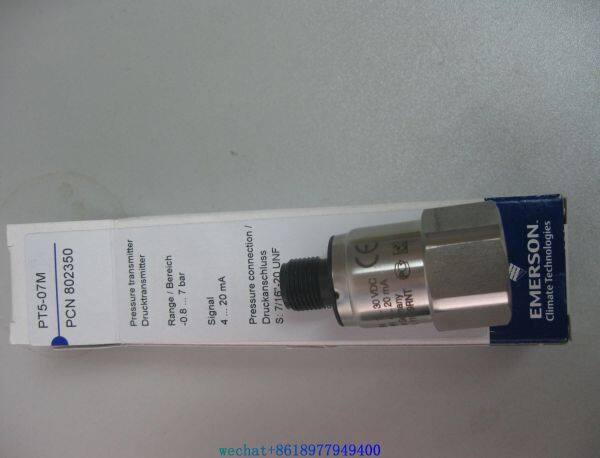

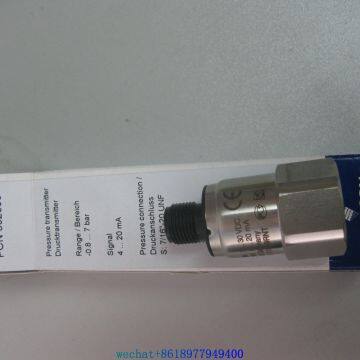

PT5-07M  802 350  -0.8 ... 7  27  30  150

7/16” -20 UNF

PT5-18M  802 351

4 ... 20 mA

0 ... 18  45  50  250

(with schrader

PT5-30M  802 352   0 ... 30  45  50  250

valve opener)

PT5-50M  802 353  0 ... 50  72  80  400

PT5-07T  802 370  -0.8 ... 7  27  30  150

PT5-18T  802 371

4 ... 20 mA

0 ... 18  45  50  250  6mm tube

PT5-30T  802 372   0 ... 30  45  50  250  x 50mm long

PT5-50T  802 373  0 ... 50  72  80  400
