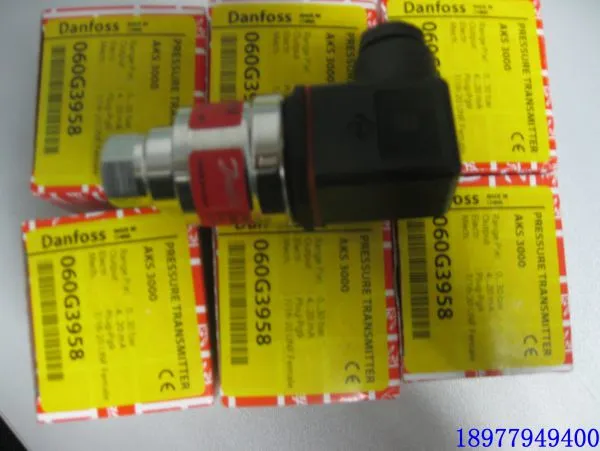

Danfoss Pressure transmitter type AKS3000,060G3958 introduction
AKS 3000 is a series of absolute transmitters with high-level signal conditioned current output, developed to meet demands in A/C and refrigeration. AKS 3000 utilizes the proved piezoresistive measuring principle, which has been used for decades in Danfoss pressure transmitters.The pressure reference is a sealed gauge. This means that atmospheric pressure variations have no influence on regulating accuracy. A must in accurate low pressure regulation. All materials in contact with the refrigerant and materials for the housing are AISI 316L stainless steel. No soft gaskets, all environmental sealings are made through laser weldings only. AKS 3000 has a 4 – 20 mA output, and is available with spade terminals for EN 175301-803 plug.
Danfoss Pressure transmitter type AKS3000,060G3958 Features
Designed to meet A/C and refrigeration demands without compromising control accuracy concerning:
Tough environment
• Vibration
• Shock during operation and transport
• Humidity and ice formation
• Temperature variations
• Corrosive media like ammonia gases
and salt mist
Convenient performance
• 4 – 20 mA signal
• 1% typical accuracy
• 0.5% typical linearity
• Prepared for high pressure refrigerants
Bar code for tracing of calibration data
Convenient performance
• Compact design
• Max. working pressure ≥33 bar
• Temperature compensation for suction line
• Optimized accuracy at -10 °C and 20 °C
for suction line installations, see page 4
• ¼ -18 NPT, G 3⁄8 A, G ½ A or ¼ flare ensures
tight pressure connection
• All laser welded AISI 316L stainless
steel enclosure
• No soft seals
• Enclosure: IP65
• For use in zone 2 explosive atmospheres
Application
• Fan speed control
• High pressure control
• Compressor capacity control
• Evaporator pressure detection
• Oil pressure control
Danfoss Pressure transmitter type AKS3000,060G3958 Ordering
Operating
range
[bar] (e)
Max.
working
pressure
PB [bar]
Calibration
at [°C]
Code no.
EN 175301-803 plug, Pg 9
G 3⁄8 A G ½ A 1⁄4 - 18 NPT 1⁄4 Flare
-1 – 6 33
-10 / 20
060G1040 – – 060G1321
-1 – 9 33 – 060G1895 060G1051 060G1007¹)
-1 – 12 33 060G1058 060G1896 060G1052 060G1323
-1 – 20 50 060G1049 – 060G1053 060G1010
0 – 18 50
20 / 60
– – 060G1068 060G1325
0 – 25 50 060G1041 060G1608¹) 060G1080 060G1019
0 – 30 60 – – 060G1081 060G1327
0 – 40 100 060G1066 – – 060G1328
0 – 60 100 – 060G3631 060G1083 –
