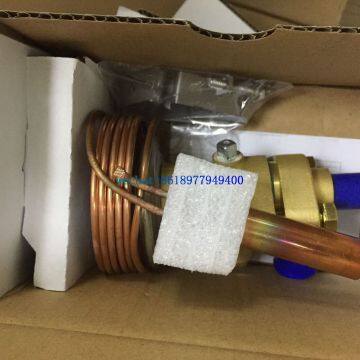

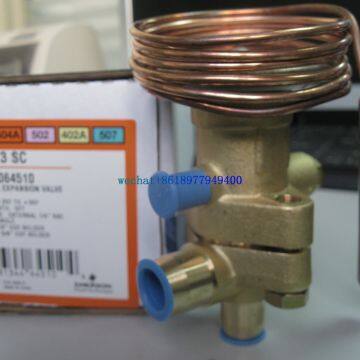

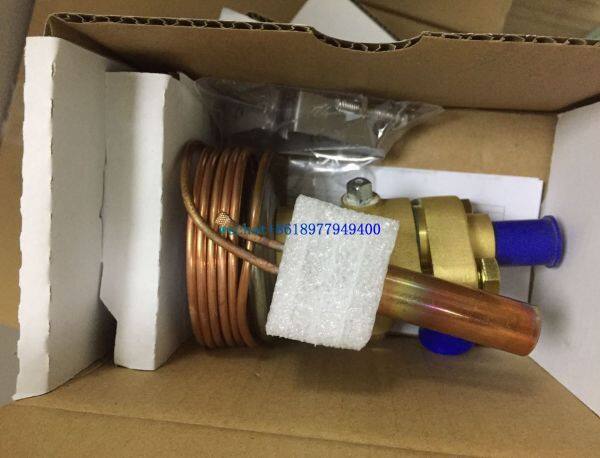

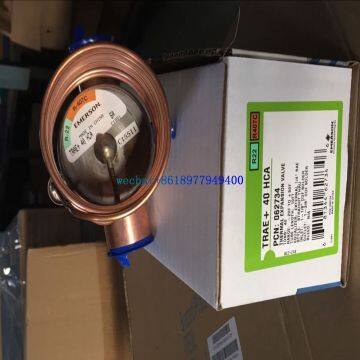

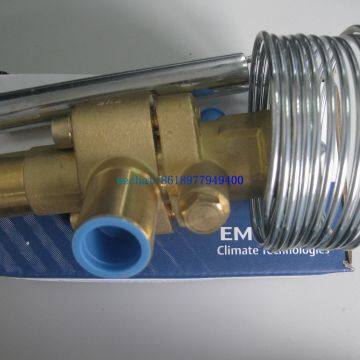

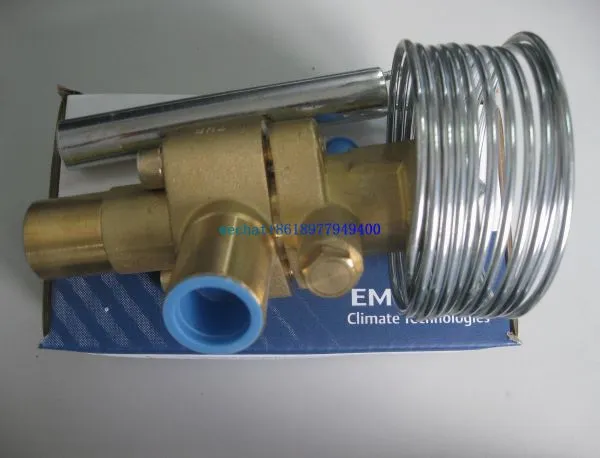

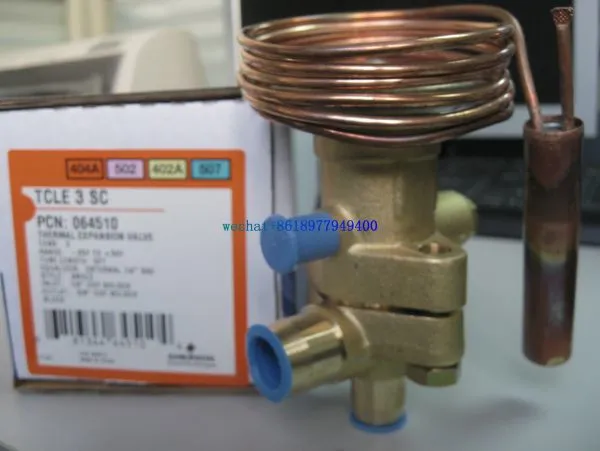

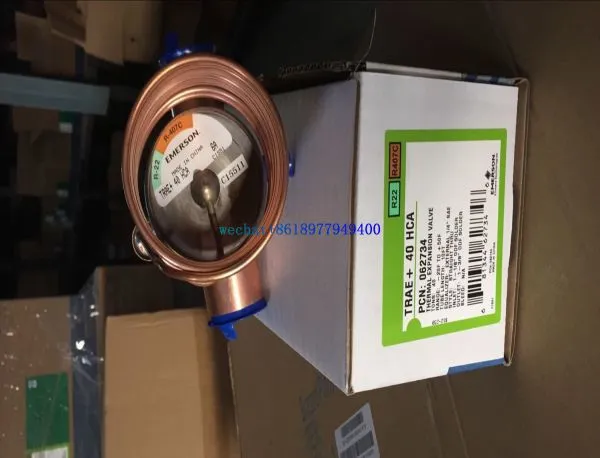

Eemerson Liquid Injection Valve Series LCLE4CL,LCLE10CL,LJRE12CL Features
• Applications for Series L valves include super-
heat control (desuperheating of suction gas i.e.
in hotgas bypass systems and interstage cooling
in multiple stage compressors)
• Modular design for economical logistics and
easy assembly and servicing
• Very good stability is attained because of the
large forces generated by the large diaphragm
diameter
• High quality materials and processes for high
reliability and long lifetime
• Superior partial load performance due to seat
orifice design (LJRE, LERE & LIRE)
• Capillary tube length 3 m
• PS: 31 bar, TS: -45 ... +65°C
• No CE marking according art. 3.3 PED 97/23 EC
Eemerson Liquid Injection Valve Series LCLE4CL,LCLE10CL,LJRE12CL Type Code
Type Code
Valve Series
External Equalizer
Capacity Code
Charge Code
Flange Style
WL=Angle Style
DL=Straight through
Connection
LCL E 4 CL WL 10x16 Type Code XB1019 CL - 2 B
Power Assembly
Charge Code
Capillary Tube Length (3 m)
External Equalization
