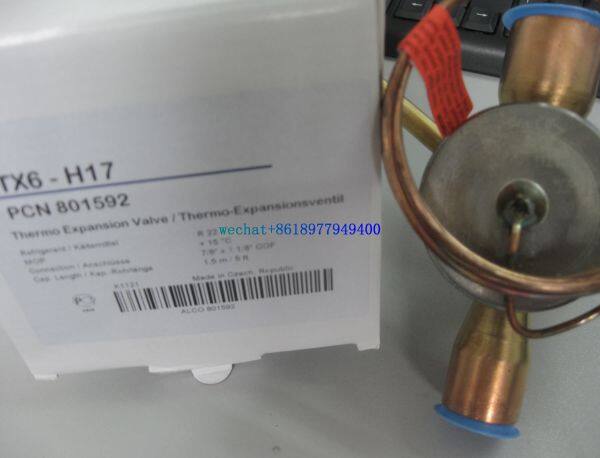

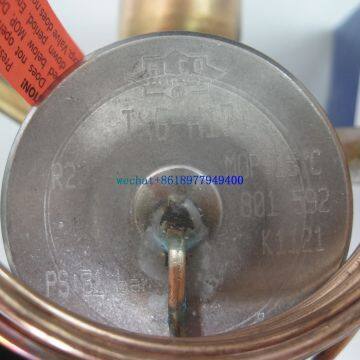

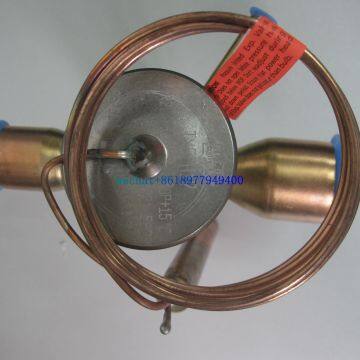

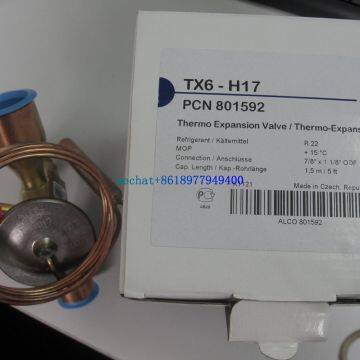

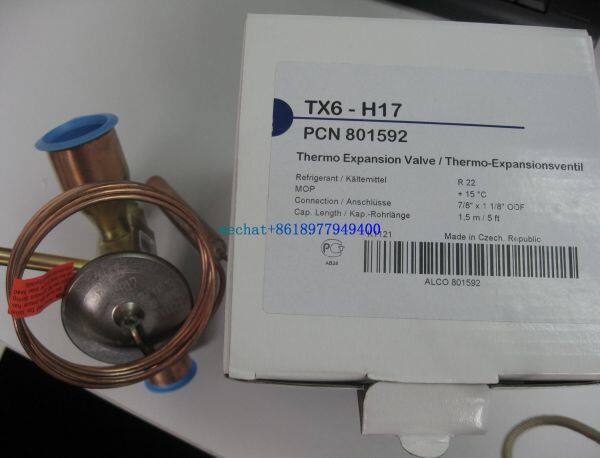

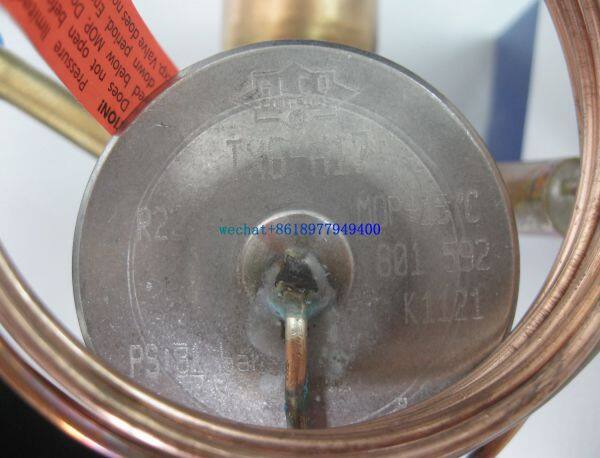

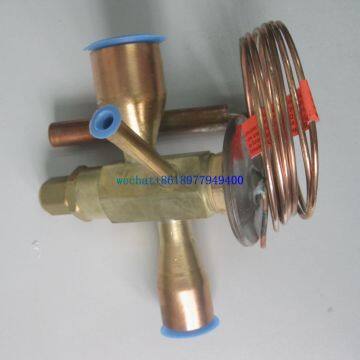

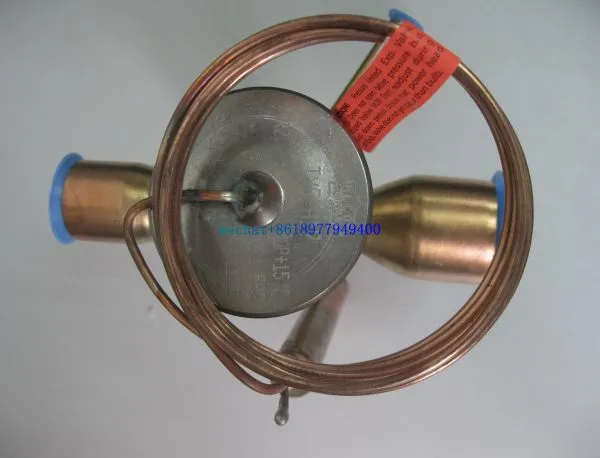

Eemerson types TX6-H16,TX6-H14,TX6-N17 Thermal Expansion Valves Features
• Balanced port design for constant superheat
operation over a wide application range under
variation of condensing pressure
• Hermetic monobloc design with solder
connections for minimal leakage
• Large diaphragm eliminates disturbances to the
valve and provides smoother and consistent valve
control
• Tailored charges for different applications
• External equalizer
• External superheat adjustment
• PS: TX6-H/N/M/Sxx : 31bar, TX6-Zxx: 42bar
• TS: -45 ... +65°C
• No CE marking according art. 3.3 PED 97/23 EC
Eemerson types TX6-H16,TX6-H14,TX6-N17 Thermal Expansion Valves Selection Charts
Nominal less MOP with Standard-MOP Connection
Capacity Q straight through
kW Type Part No. Type Part No. Solder/ODF
13,3 TX6 - H02 801 551 TX6 - H12 801 555 12 mm x 16 mm
13,3 TX6 - H02 801 549 TX6 - H12 801 553 1/2“ x 5/8“
23,7 TX6 - H03 801 552 TX6 - H13 801 556 12 mm x 16 mm
23,7 TX6 - H03 801 550 TX6 - H13 801 554 1/2“ x 5/8“
33,0 TX6 - H04 801 585 TX6 - H14 801 593 16 mm x 22 mm
33,0 TX6 - H04 801 581 TX6 - H14 801 589 5/8“ x 7/8
41,8 TX6 - H05 801 586 TX6 - H15 801 594 16 mm x 22 mm
41,8 TX6 - H05 801 582 TX6 - H15 801 590 5/8“ x 7/8
61,9 TX6 - H06 801 587 TX6 - H16 801 595 22 mm x 28 mm
61,9 TX6 - H06 801 583 TX6 - H16 801 591 7/8“ x 1-1/8“
80,8 TX6 - H07 801 588 TX6 - H17 801 596 22 mm x 28 mm
80,8 TX6 - H07 801 584 TX6 - H17 801 592 7/8“ x 1-1/8“
