Product description

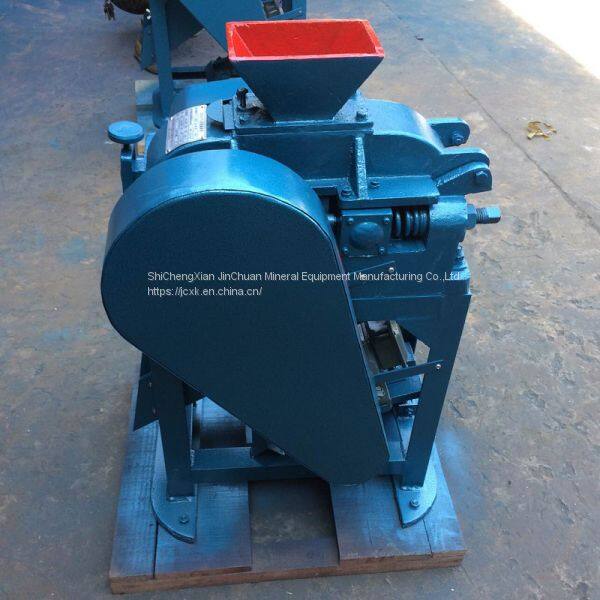

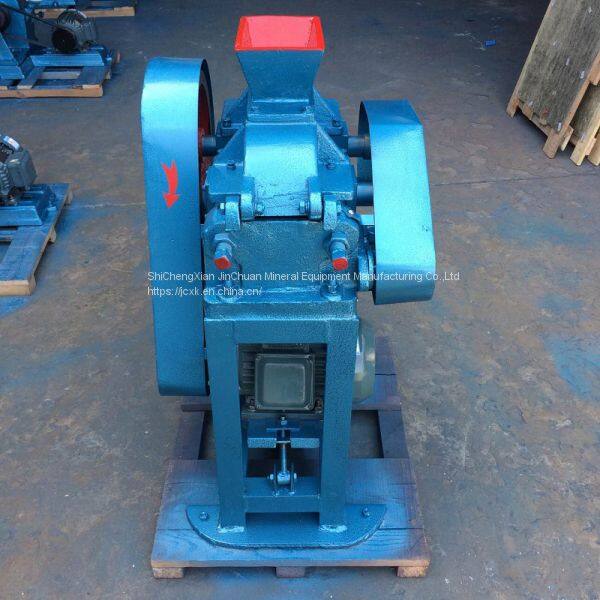

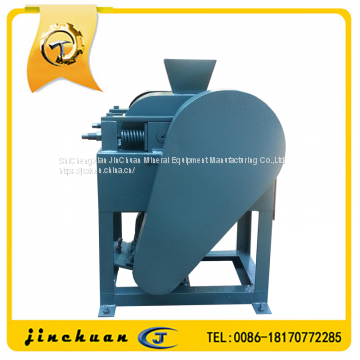

Laboratory Double Roll Crusher consists of roll wheel, roll bearing, pressing device, adjusting device and driving device etc. Discharging size adjustment: between two roller equipped with cuneate or gasket adjusting device, top of the wedge device capped with adjustment bolts. When the adjustment bolts pull upward wedge which will bear against the fixed wheel to make it deviate from the movable roller wheel, then the gap between wheels become large, discharging size become bigger, otherwise the opposite, gasket device is through the quantity or thickness to adjust the materials size.
When roll crusher adding gaskets the gap between wheels become large, when reducing gaskets the gap between wheels become small, so the discharging size becomes small. Driving structure is two motors through triangle belt drive to grooved pulley which drag roller rotating according to relative direction. In crushing stage, material is broken by roll wheel; final product is discharged from chassis. For safety, transmission part should be installed safety guard according to actual situation.
Features
1. Suitable to crushing high hardness or brittleness of materials.
2. Continuous finish the crushing and shrinking, to avoid error by manual operation.
3. After the material shrinking, the sample with representative.
4. Sealed design, without dust pollution, easy to clean, environmental compliance.
5. Just placed on level ground, working without fixed base.

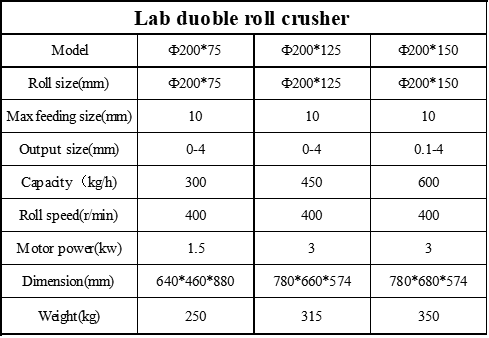

Product specification
Product Products
