Product description
Impact sand making machine is also called impact crusher, referred to as impact breaking. It consists of seven parts: feeding, distributor, vortex breaking chamber, impeller experience, spindle assembly, base transmission and motor.

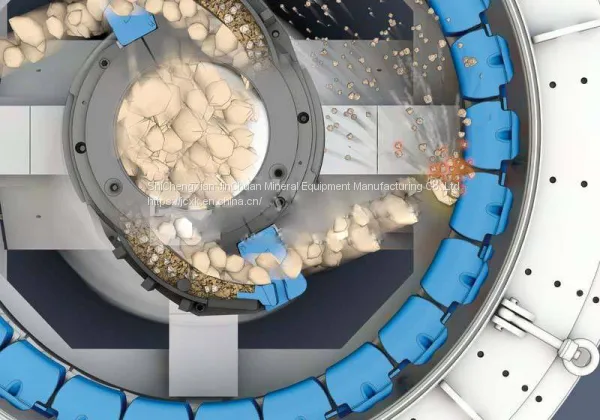

Working principle
The materials fall into impeller with high-speed rotation vertically. On the force of high-speed centrifugal, the materials strike to the other part of material in a high speed. After mutual impacting, the materials will strike and rub between the impeller and the casing and then be discharged straight from the lower portion to form a closed multiple cycles. Final product is controlled by screening equipment to meet the requirement.
Features
1. Based on the high-speed impact crushing mechanism, the product has excellent grain shape, is cubic, and has a low needle-like content; therefore, it is especially suitable for aggregate shaping and artificial sand making, such as the production and processing of aggregates for expressways;
2. The impeller structure adopts a new structural design, and the material throughput is increased by about 30%.
3. Adopting the “rock-on-rock” working mode to reduce the types of wear-resistant use and reduce the production cost of the customer; the structure and process of the impeller are adjusted, and the service life of the impeller is greatly improved compared with the previous equipment under the same material;
4. Waterfall feeding technology can not only improve energy utilization rate, increase production, but also regulate product grain shape and control product powder content through waterfall feeding;
5. Adopting thin oil lubrication system, special sealing structure prevents oil leakage of bearing cylinder and reduces failure of transmission system

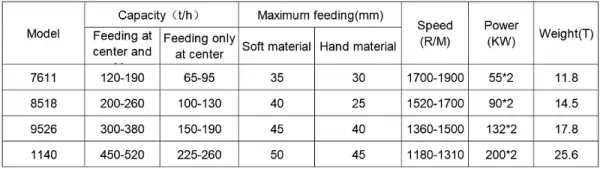

Product specification
Product application
